| General | |
| CPU | Intel® Gemini lake N4000/J4105/J4125 Processor |
| Chipset | Intel®Gemini Lake chip |
| Memory | 1*SO-DIMM DDR4 2400MHz Max 16GB |
| Storage | 1*SATA3.0；1*mSATA Expansion slot |
| Expansion Interface | 1*Mini_PCIe(support WIFI&Bluetooth/4G module) |
| BIOS | AMI BIOS |
| System | Windows 10、Linux、Windows11 |
| I/O Interface | |
| Ethernet | 1*Realtek® RTL8111 1Gbps Ethernet Controller，RJ45 |
| Serial | 3*RS232 |
| USB | 4*USB 3.0, 6*USB 2.0 |
| Audio | ALC269-VB6 + NS4258（Optional） (SPK1 support 2.2W@4 Ω max, only SPK1 is supported by default； SPK2 support 3.2W@4 Ω； 5.2W@2 Ω max, SPK2 is optional；) |
| Others | 1*F-AUDIO Header 1*SPEAKER Header 1*F_USB2.0 Header blue（Expandable 2 * USB2.0, standby 5V power supply） 2*F_USB2.0 Header black（Expandable 4 * USB2.0, system 5V power supply） 1*SATA interface、1*SATA_PWR Header 1*F_PANEL Header 3*COM232 Header （HCOM1/HCOM2 PIN9 RI/+5V/+12V Optional） 1*GPIO Header（8-way GPIO） 1*LVDS Header 1*EDP Header 2*INVERT Header 1*LPT Header 1*FAN Header 1*HRJ11 Header 1*HDCIN1 Header 1*JATX Header（Select power on auto start） 1*JME Header |
| Display | |
| Display Interface | HDMI+LVDS1+EDP2 (Support 3 display synchronous/asynchronous output) |
| Mechanical & Environment | |
| Dimension | 170X170MM |
| Power Input | DC/4PIN 12V power supply |
| Temperature | Operation: -10℃~60℃, Storage: -15℃ |
| Relative Humidity | 0% ~ 95%, non-condensing |

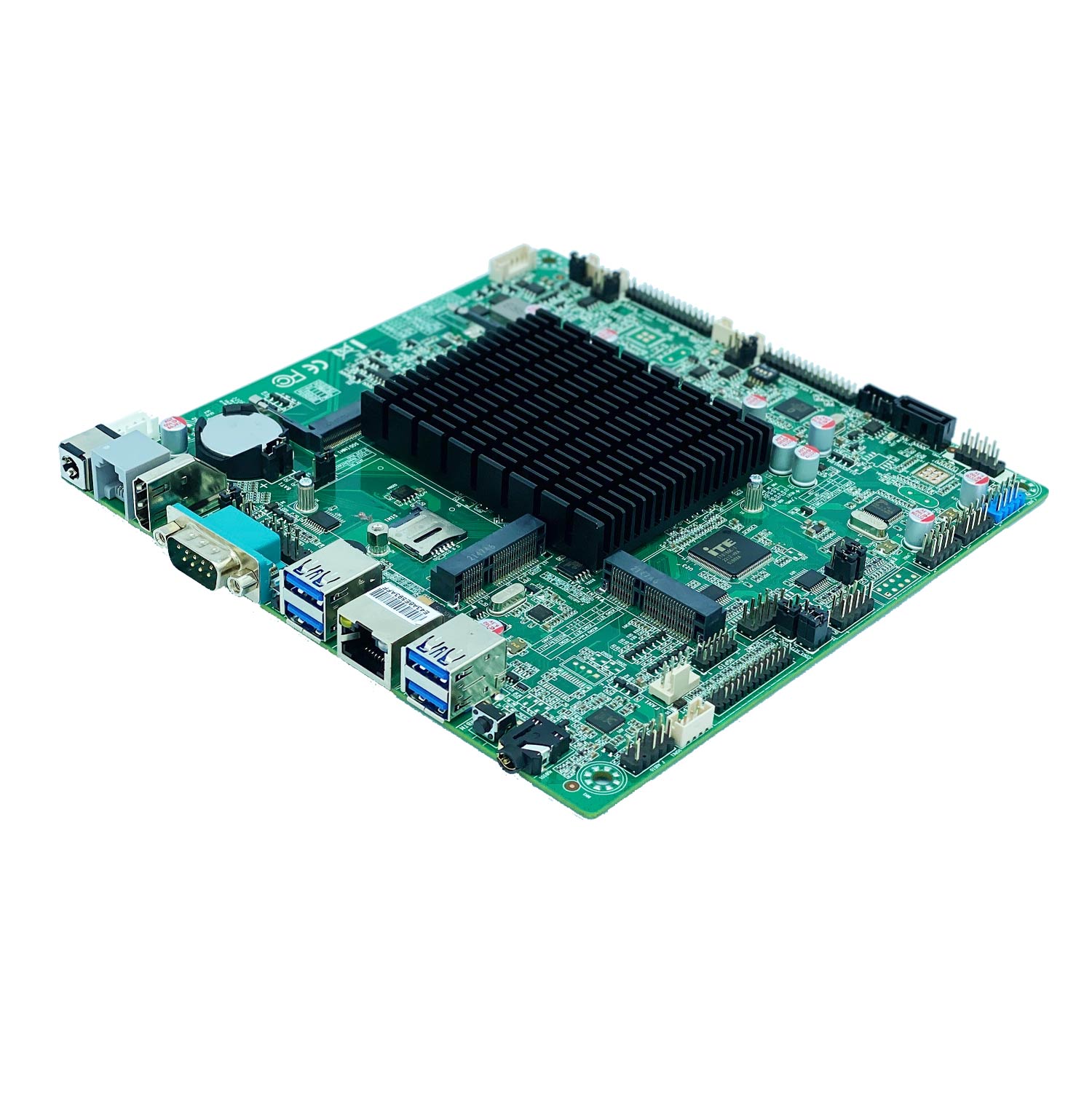

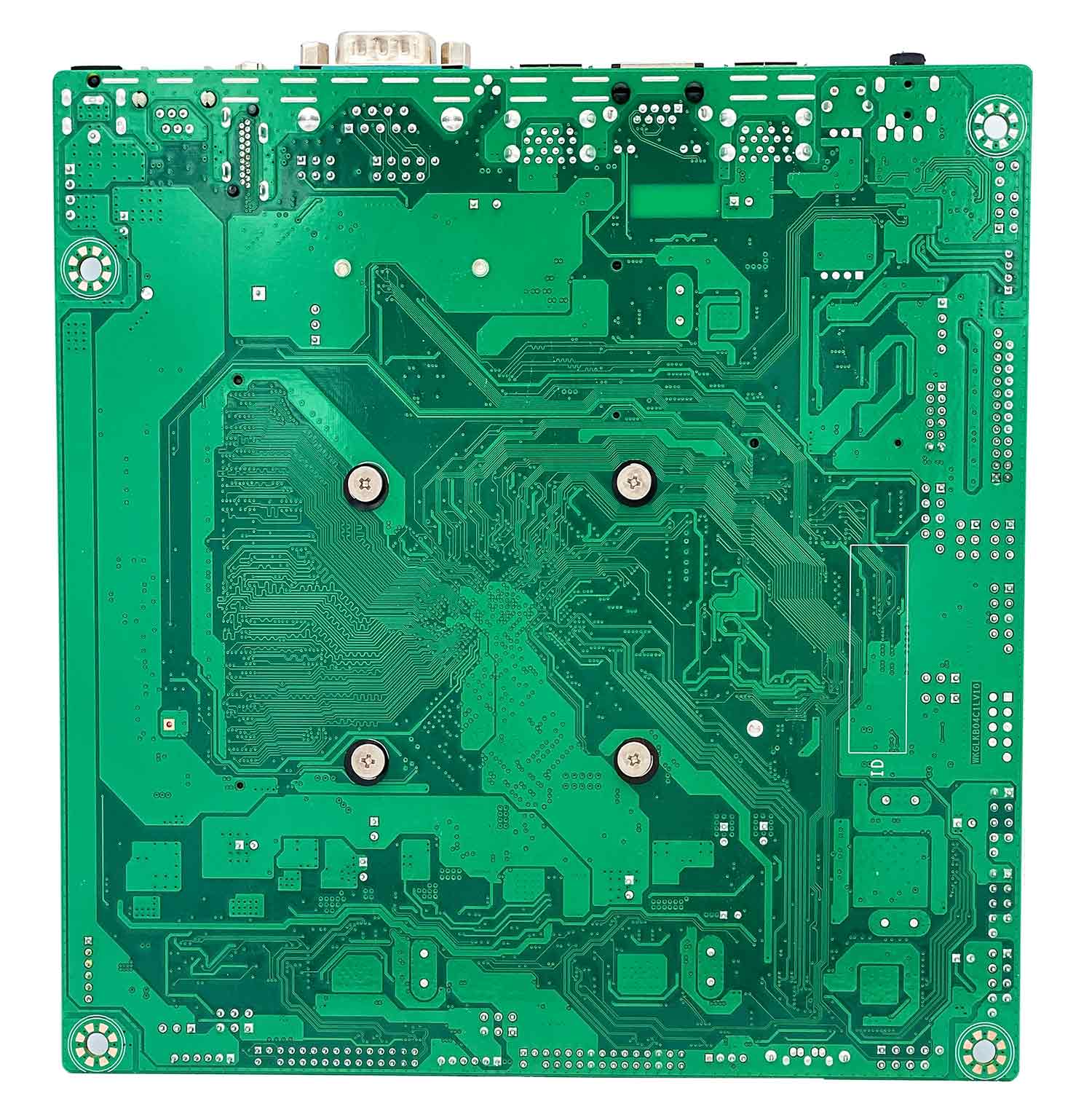

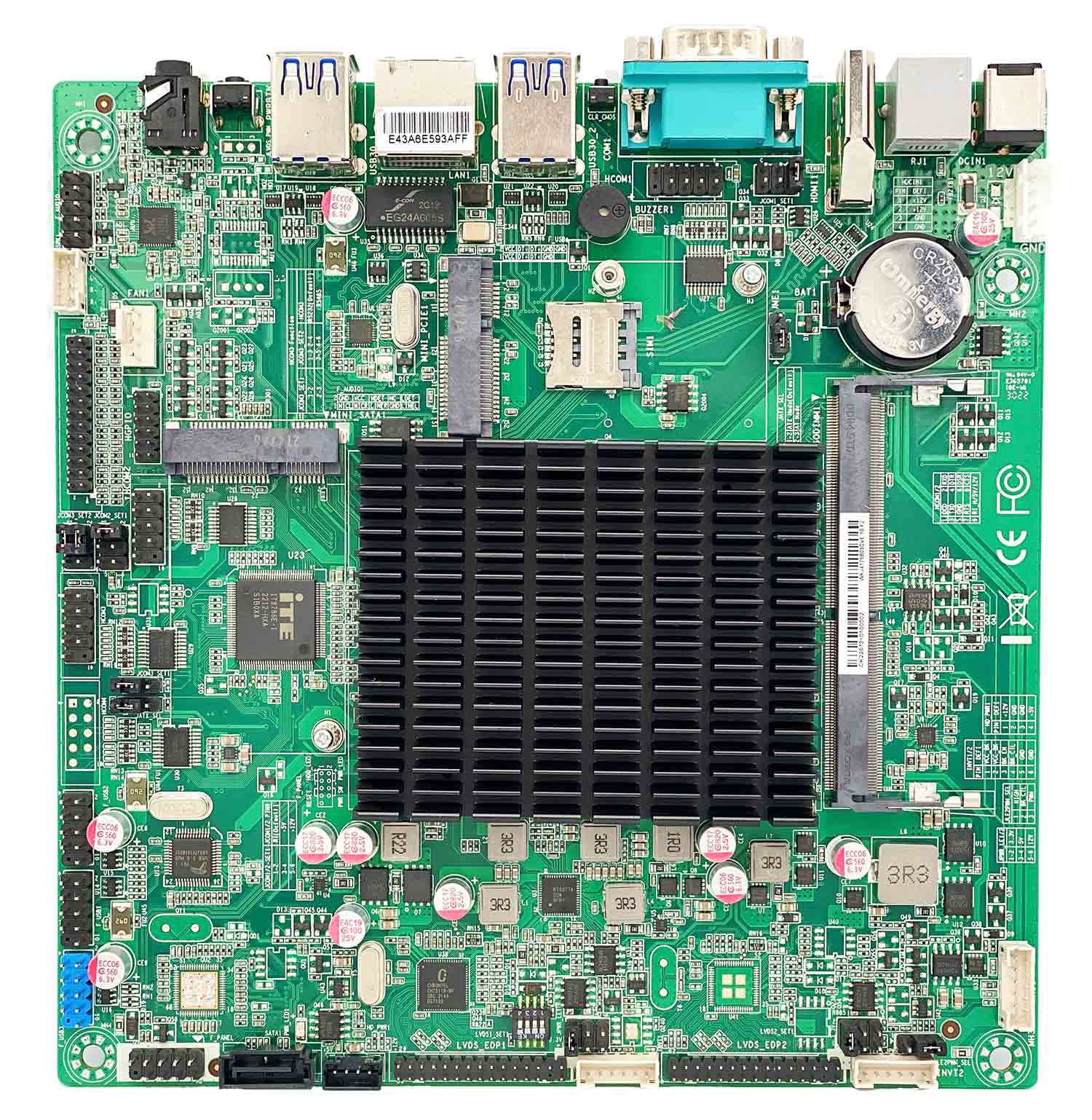

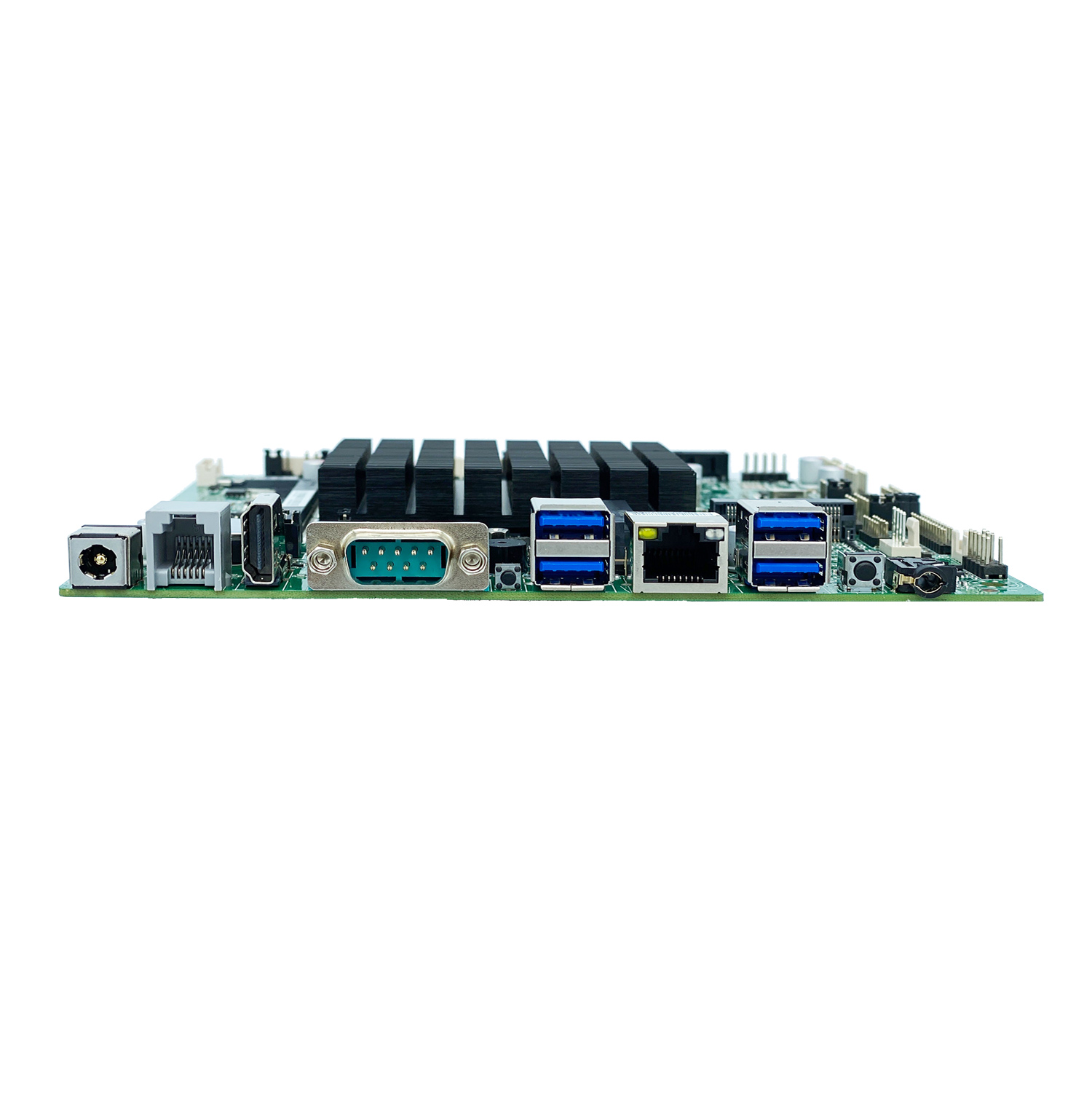

WK-J4125B0-3CVE
Intel® Gemini lake N4000/J4105/J4125 Processor；Intel®Gemini Lake chip；1*SO-DIMM；4*USB3.0；6*USB2.0；1*SATA3.0；1*Mini SATA；1*Mini PCIe；Support 12V COM protocol RJ11 cashbox interface；Support one click system restore, support shortcut system backup and restore。
processor：Intel® Gemini lake N4000/J4105/J4125 Processor
chipset：Intel®Gemini Lake chip
Display chip：Intel UHD Graphics 600
memory：1*SO-DIMM DDR4 2400MHz Max 16GB
Display output：Support three display mode HDMI+LVDS1+EDP2
storage：1*SATA3.0；1*mSATA Expansion slot
USB:6*USB2.0 ；4*USB3.0
Support 3 * COM232+1 * LPT printing interface
On board 1 * RTL8111 gigabit network card
Expansion slot：1*Mini_PCIe(support WIFI+Bluetooth/4G)
Support 12V COM protocol RJ11 cashbox interface
Support one click system restore, support shortcut system backup and restore
