| General | |
| CPU | Intel® Gemini lake J4125/J4105/N4000 Processor |
| Chipset | Intel® SOC |
| Memory | 1*SO-DIMM DDR4 2133/2400MHz Max8GB |
| Storage | 1*SATA3.0；1*m.2 2280mm (SATA SSD support) |
| Expansion Interface | 1*Mini_PCIe(Support WiFi+Bluetooth/4G expansion module) |
| BIOS | AMI BIOS |
| System | Linux/Windows 10 |
| I/O Interface | |
| Ethernet | 1*Realtek® RTL8111 1Gbps Ethernet Controller，RJ45 |
| Serial | 4*RS232 |
| USB | 5*USB 3.0, 5*USB 2.0 |
| Audio | Onboard audio decoding controller; Built in power amplifier output 3W@4 Ω； 1.7W@8 Ω max |
| Others | 1*4PIN DC Header 1*LVDS Socket 1*AUDIO Header 1*SPEAKER Header（Power amplifier output） 1*SATA3.0 interface 1*SATA_PWR Header 1*F_USB2.0 Header（Expandable 2*USB2.0） 1*GPIO Header（8-way GPIO） 1*F_PANEL Header 4*COM232 Header （Com1 supports RS485 cap skipping selection） 1*CPU FAN Header 1*Auto-PWR Header |
| Display | |
| Display Interface | 2*HDMI、Built in LVDS(Three displays can be supported) |
| Mechanical & Environment | |
| Dimension | 120X120MM |
| Power Input | DC/4PIN DC12V~19V power supply Note: If LVDS display or fan radiator is used, the adapter can only select 12V |
| Temperature | Operation: 0℃~45℃, Storage: -10℃~60℃ |
| Relative Humidity | 0% ~ 95%, non-condensing |

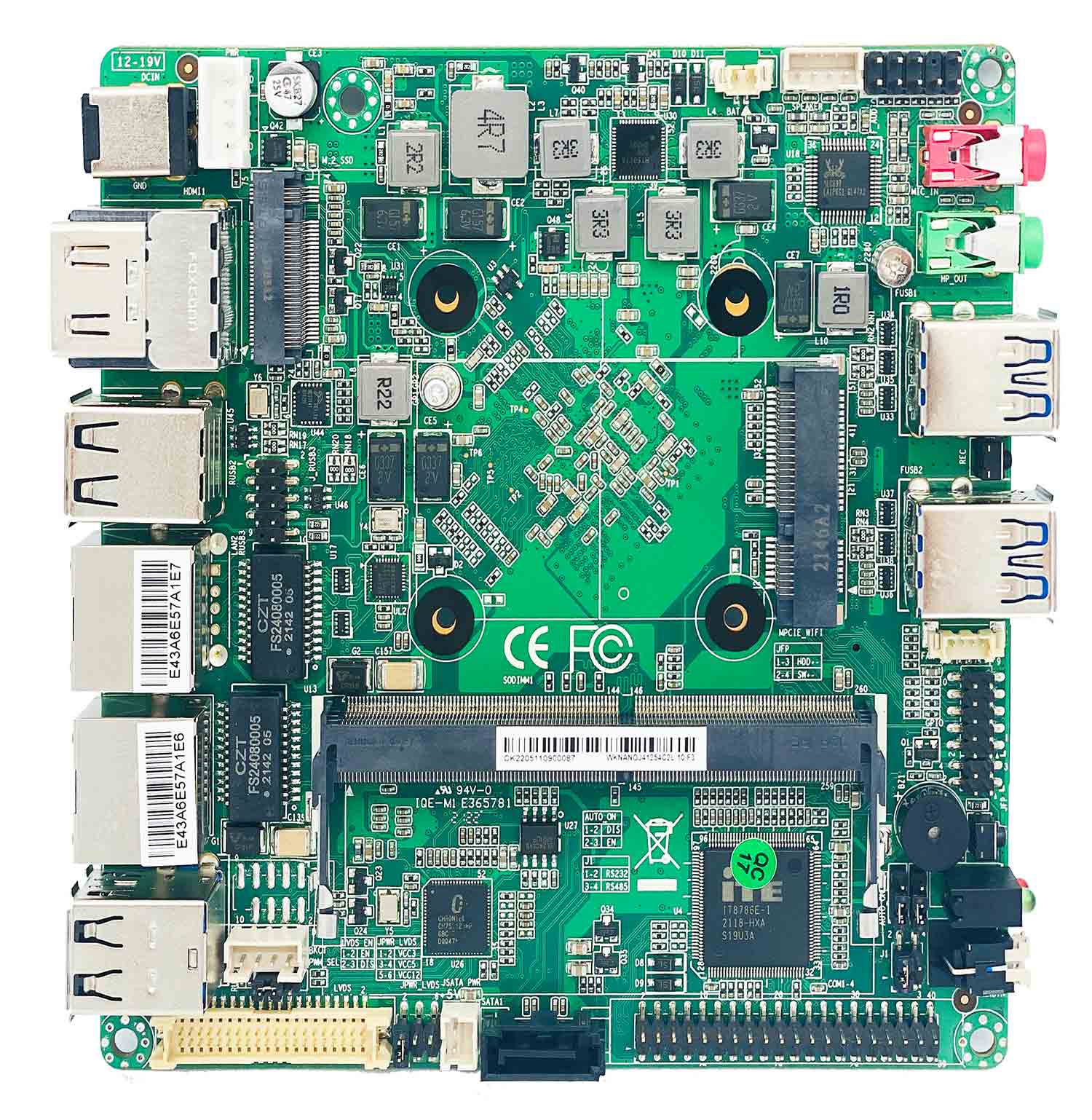

WKNANO-J4125-4C2L
Intel® Gemini lake J4125/J4105/N4000 Processor ; Intel®SOC ;1*SO-DIMM DDR4；2*HDMI ；2*LAN；5*USB3.0+5*USB2.0；1*SATA3.0；1*m.2；1*MiniPCIe
processor：Intel® Gemini lake J4125/J4105/N4000 Processor
chipset：Intel® SOC
Display chip：Intel UHD Graphics 600
memory：1*SO-DIMM DDR4 2133/2400MHz Max8GB
Display output：2*HDMI、Built in LVDS(Three displays can be supported)
storage：1*SATA3.0；1*m.2 2280mm (SATA SSD support)
USB:5*USB2.0；5*USB3.0；
Support 4*COM232 (COM1 supports 485 selection)
Onboard 2 * Realtek RT8111H gigabit network card
Expansion slot：1*Mini_PCIe(Support WiFi+Bluetooth/4G expansion module)
