General |
|
|
CPU |
Intel® Bay Trail J1900/J1800 Processor |
|
Chipset |
Intel® SOC |
|
Memory |
1*SO-DIMM DDR3L 1333 Max 8GB |
|
Storage |
1*SATA；1*mSATA |
|
Expansion Interface |
1*Mini_PCIe(Support WiFi+Bluetooth/4G expansion module)
|
|
BIOS |
AMI BIOS |
|
System |
Linux/Windows XP/Windows 7/Windows 8/Windows 8.1/Windows 10 |
|
I/O Interface |
|
|
Ethernet |
1*Realtek® RTL8111 1Gbps Ethernet Controller，RJ45 |
|
Serial |
6*RS232 |
|
USB |
1*USB 3.0, 8*USB 2.0 |
|
Audio |
On board ALC269 audio decoding controller built-in power amplifier output 2.2W@4 Ω max |
|
Others |
1*VGA Header 1*HDMI Header 1*SPEAKER Header 1*F_AUDIO Header 3*F-USB2.0 Header（Expandable 5*USB2.0） 1*SATA interface 1*SATA_PWR Header 6*COM Header 1*F_PANEL Header 1*PS2 Header 1*PRINT Header 1*GPIO Header 1*CFAN Header 1*LCTL1 Header 1*INCN1 Header 1*LVDS Header（Note that Pin6 requires wire grounding） 1*4PIN ATX Header 1*JRS485 Header 1*JME Header |
|
Display |
|
|
Display Interface |
HDMI、VGA、LVDS (Support asynchronous/synchronous dual display output) |
|
Mechanical & Environment |
|
|
Dimension |
170X170MM |
|
Power Input |
DC/4PIN DC12V power supply |
| Temperature | Operation: 0℃~60℃, Storage: -20℃~75℃ |
|
Relative Humidity |
0% ~ 95%, non-condensing |

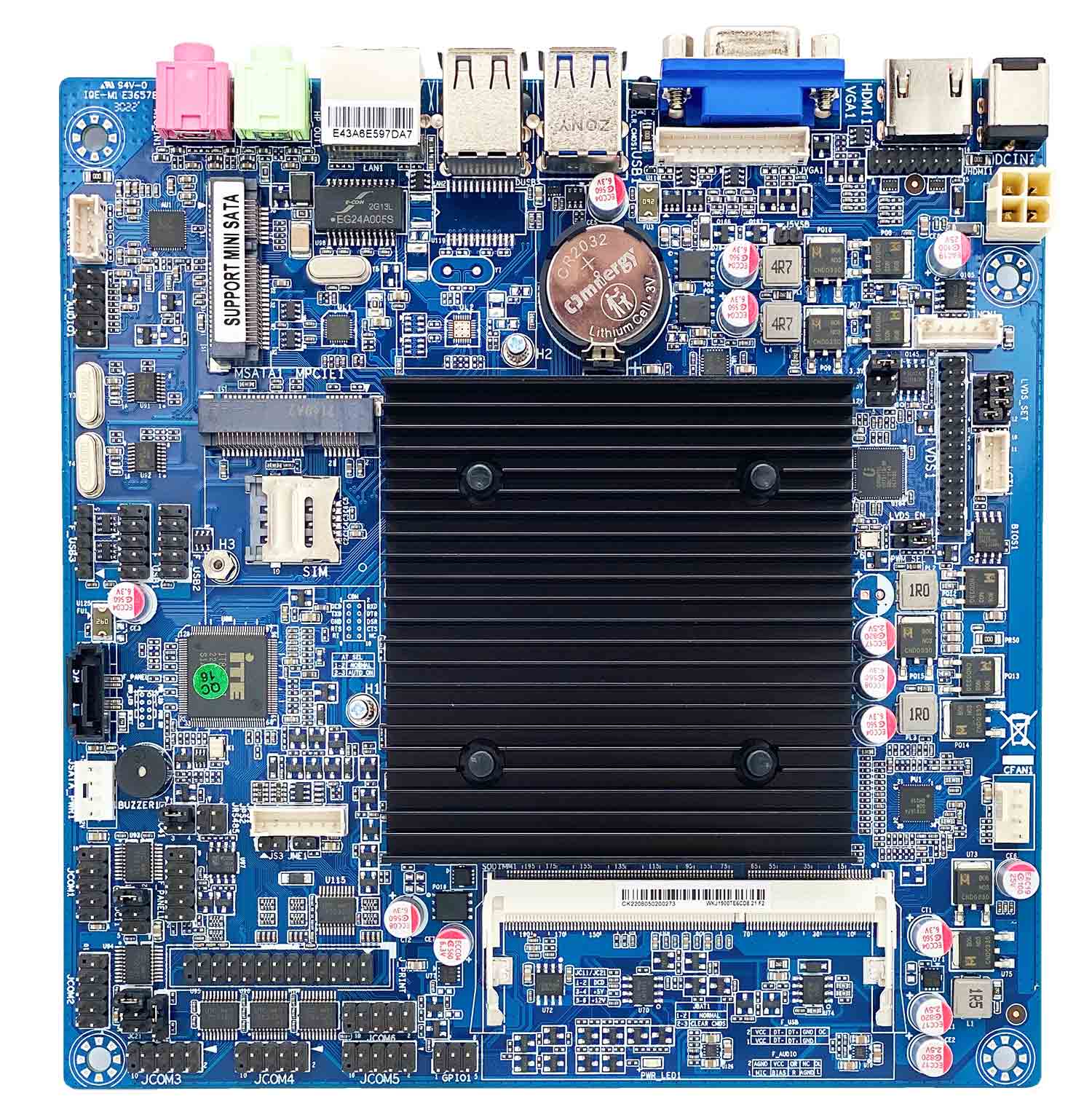

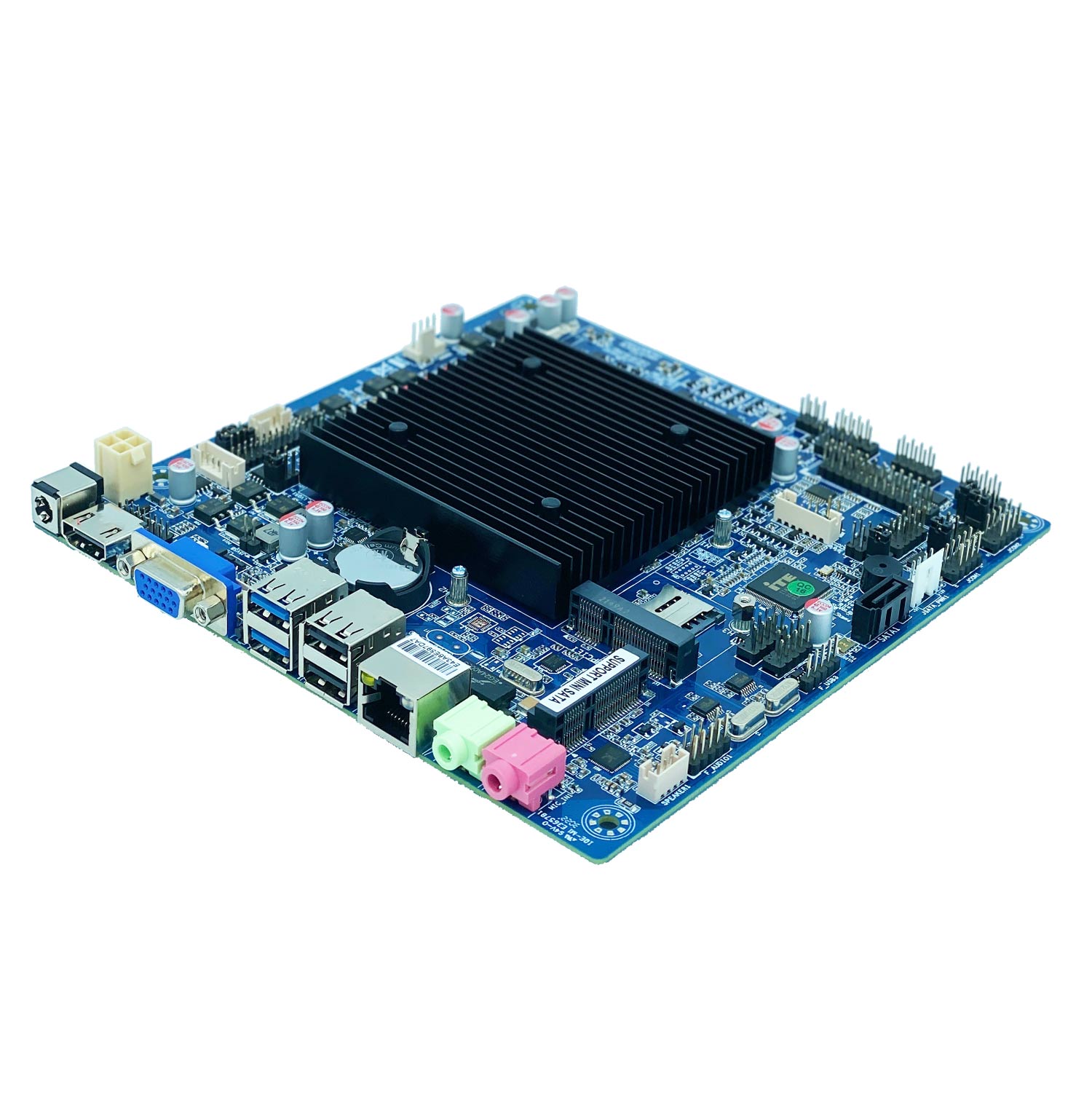

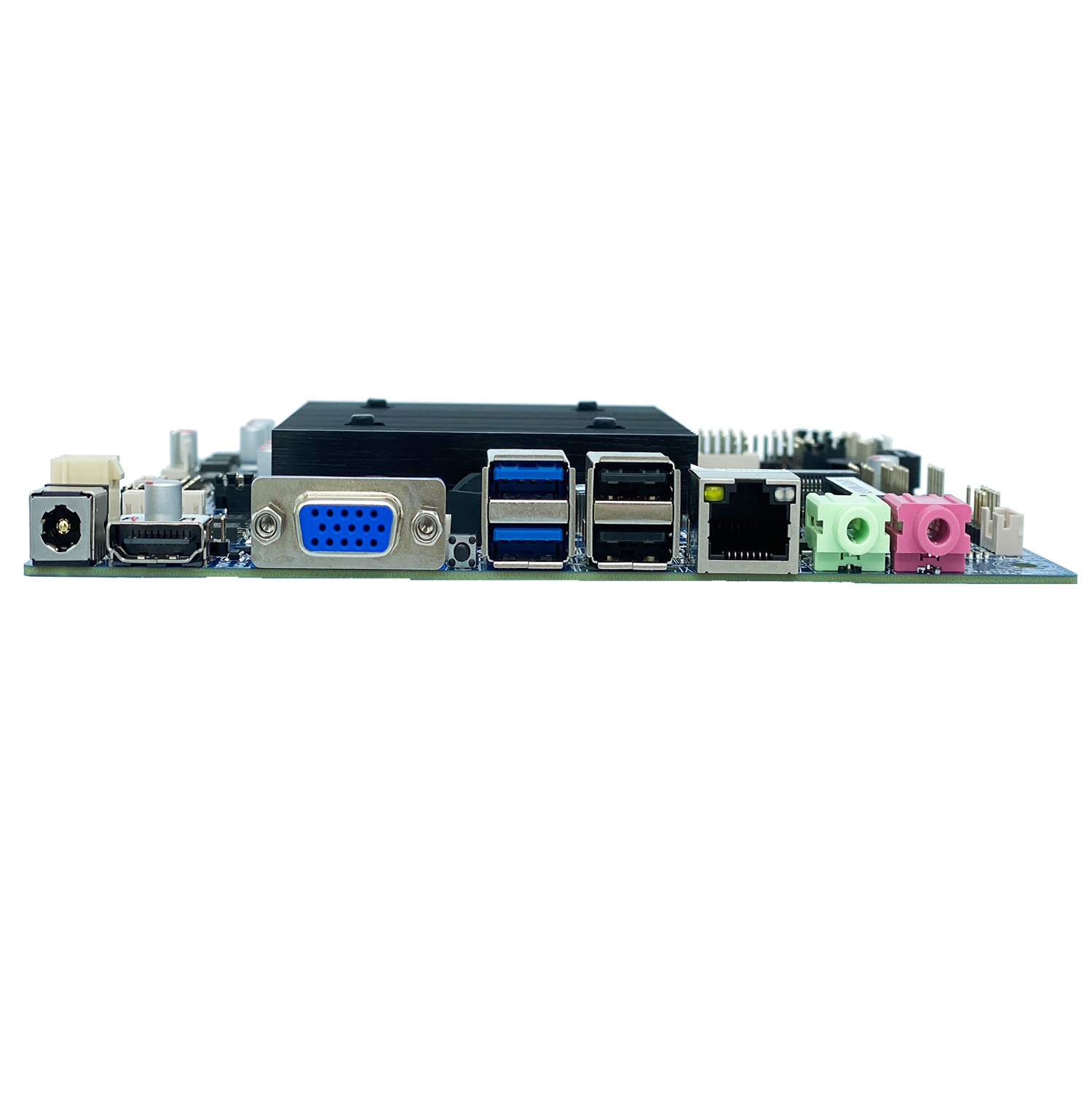

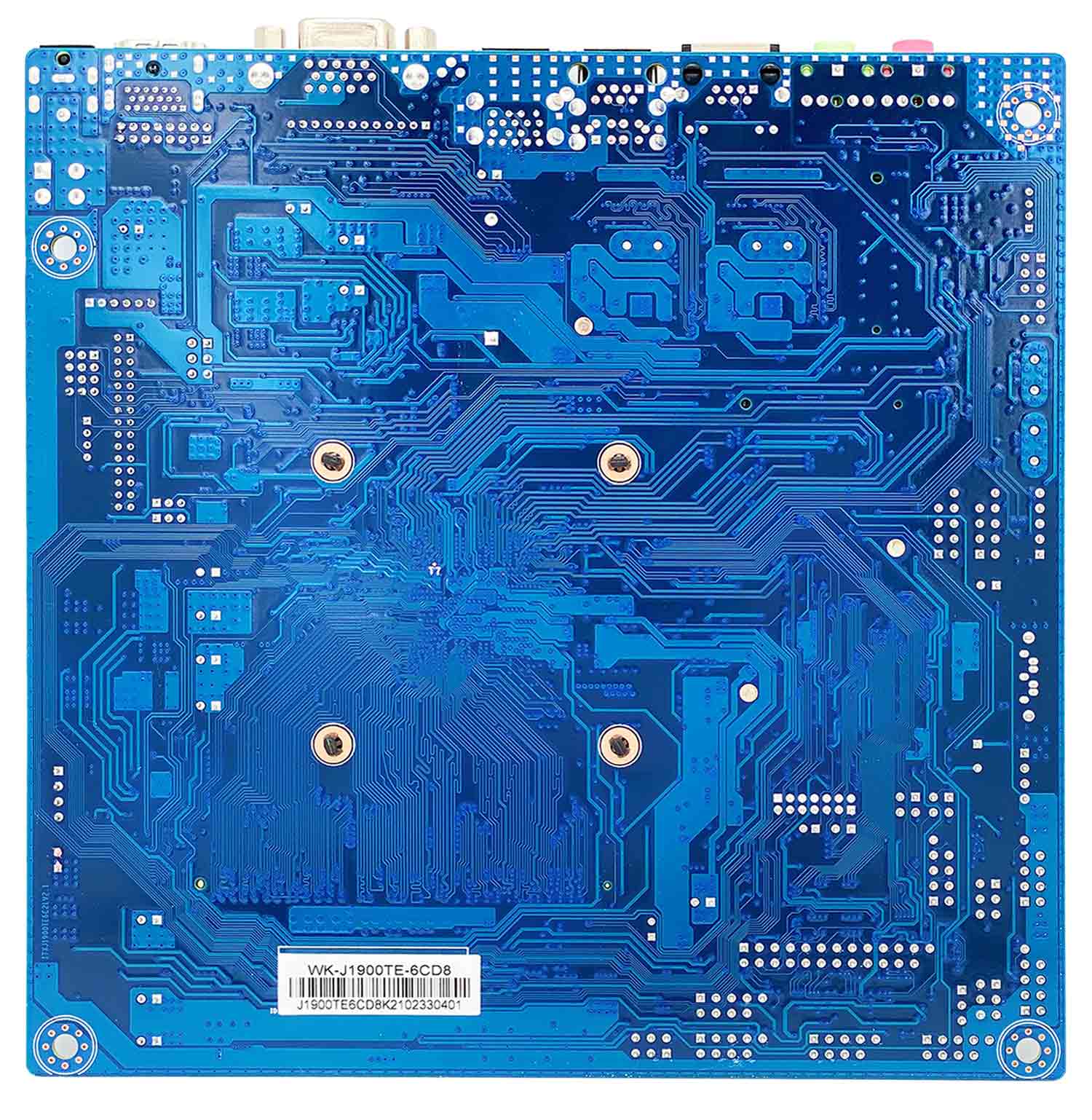

WK-J1900TE-6CD8
Intel Bay Trail J1900/J1800 Processor；Intel ® SOC；1*SO-DIMM, 1*USB3.0；8*USB2.0；6*COM232；1*mSATA；1*SATA；1*Mini PCIe
processor：Intel® Bay Trail J1900/J1800 Processor
chipset：Intel® SOC
Display chip：Intel® HD Graphics for Intel Atom® Processor Z3700 Series
memory：1*SO-DIMM DDR3L 1333 Max 8GB
Display output：HDMI、VGA、LVDS (Support asynchronous/synchronous dual display output)
storage：1*SATA、1*mSATA
USB:8*USB2.0；1*USB3.0；
Support 6*COM232（COM2 supports 485 jump cap options）
Onboard 1*Realtek RT8111 gigabit network card(dual network optional)
Expansion slot：1*Mini_PCIe(Support Wi+Bluetooth/4G expansion module)
IO supports one click CMOS
