| General | |
| CPU | Intel® Coffee lake-H/Coffee lake refresh/Comet lake-H Processor；BGA1440； |
| Chipset | Intel HM300 series/QM300 series/CM200 series support 8/9/10 generation CPU (HM400/Z300 series only support 10 generation CPU) |
| Memory | 2*SO-DIMM,DDR4 2666/2933MHz max64GB |
| Storage | 2*SATA3.0；1*M.2 Key M Support Nvme&SATA SSD |
| Expansion Interface | 1*Mini_PCIe(Support Wi+Bluetooth/4G expansion module) |
| BIOS | AMI BIOS |
| System | Linux/Windows10/Windows 11 |
| I/O Interface | |
| Ethernet | 1/2*Realtek® RTL8111 1Gbps Ethernet Controller，RJ45 |
| Serial | 6*RS232 |
| USB | 4/6*USB 3.0, 4*USB 2.0 |
| Audio | On board audio decoding controller ALC269+(reserved for NS4258) Built in power amplifier output 2.2W@4 Ω max (5W power amplifier is optional) |
| Others | 1*4PIN ATX Header 1*VGA Header 1*AUDIO Header 1*SPEAKER Header 2*F_USB2.0 Header（Expandable 4*USB2.0） 1*F_USB3.0 Header（Expandable 2*USB3.0，Support touch wake-up） 2*SATA3.0 interface 2*SATA_PWR Header 1*PS/2 Header 1*LPT Header 6*COM232 Header （RS232/485 is optional for COM2 and COM3） 1*GPIO Header 1*EDP2 Header（One of two interfaces with DP） 1*LVDS_EDP1 Header（By model selection） 1*F_PANEL Header 1*DEBUG Header 1*CPU FAN Header 1*SFAN Header 2*INVT Header 1*BKCL Header 1*JAT1 Header（Incoming call auto start） 1*JME Header |
| Display | |
| Display Interface | HDMI、VGA、EDP2/DP、LVDS/EDP1(Support 3 display synchronous/asynchronous output) |
| Mechanical & Environment | |
| Dimension | 170X170MM |
| Power Input | DC 12~19V input power supply or ATX4pin power supply |
| Temperature | Operation: -10℃~60℃, Storage: -20℃~75℃ |
| Relative Humidity | 5% ~ 95%, non-condensing |

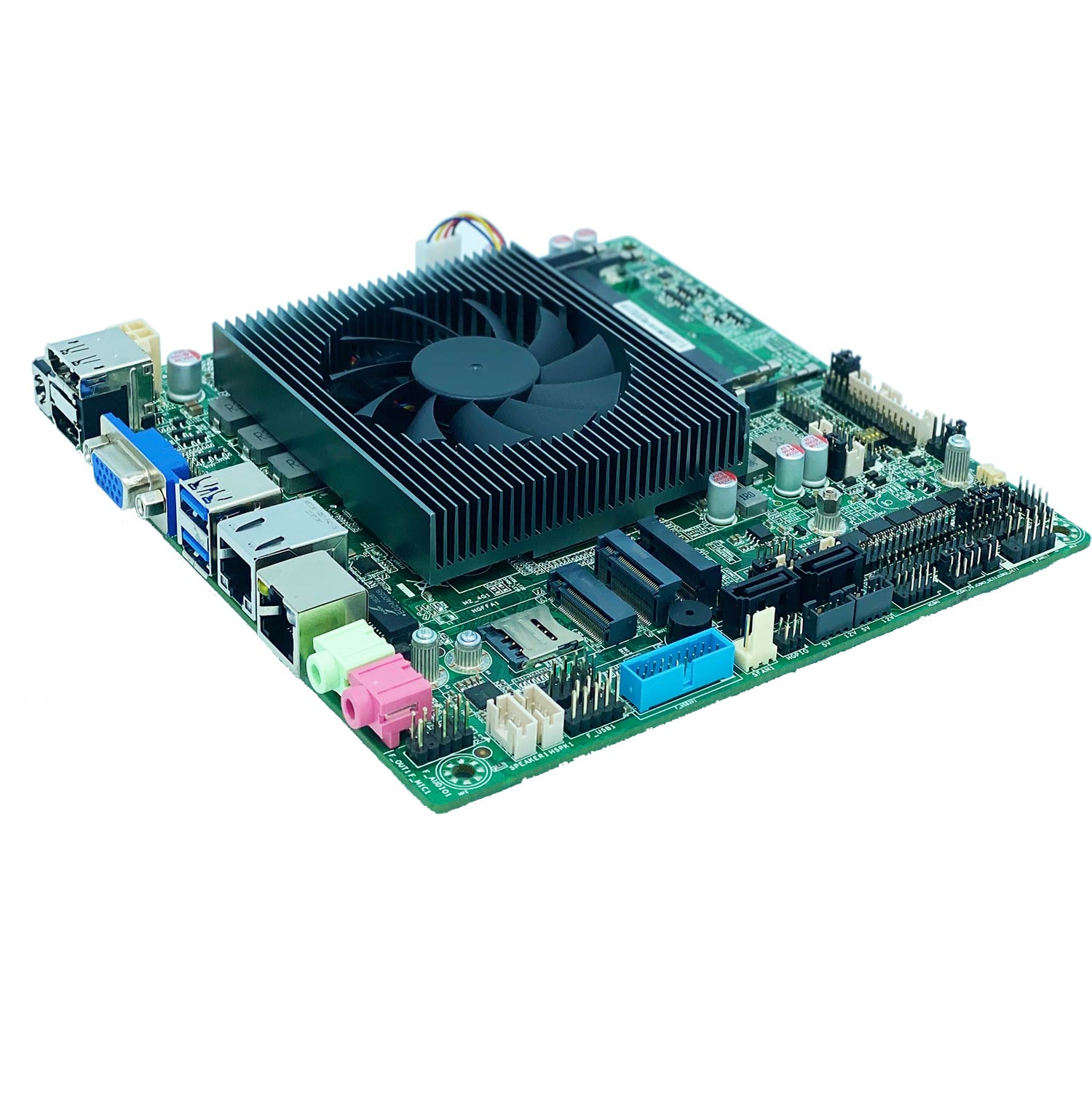

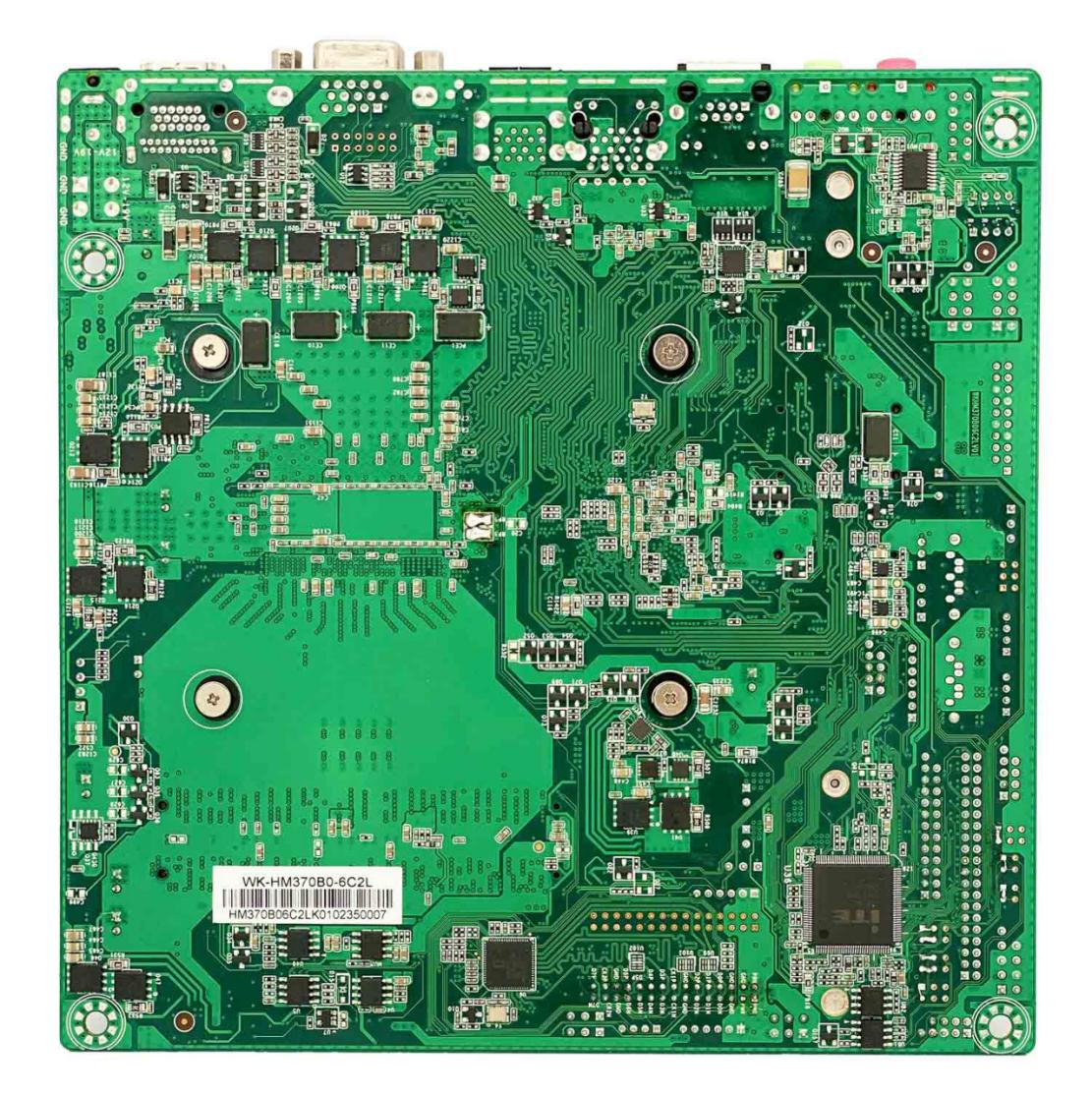

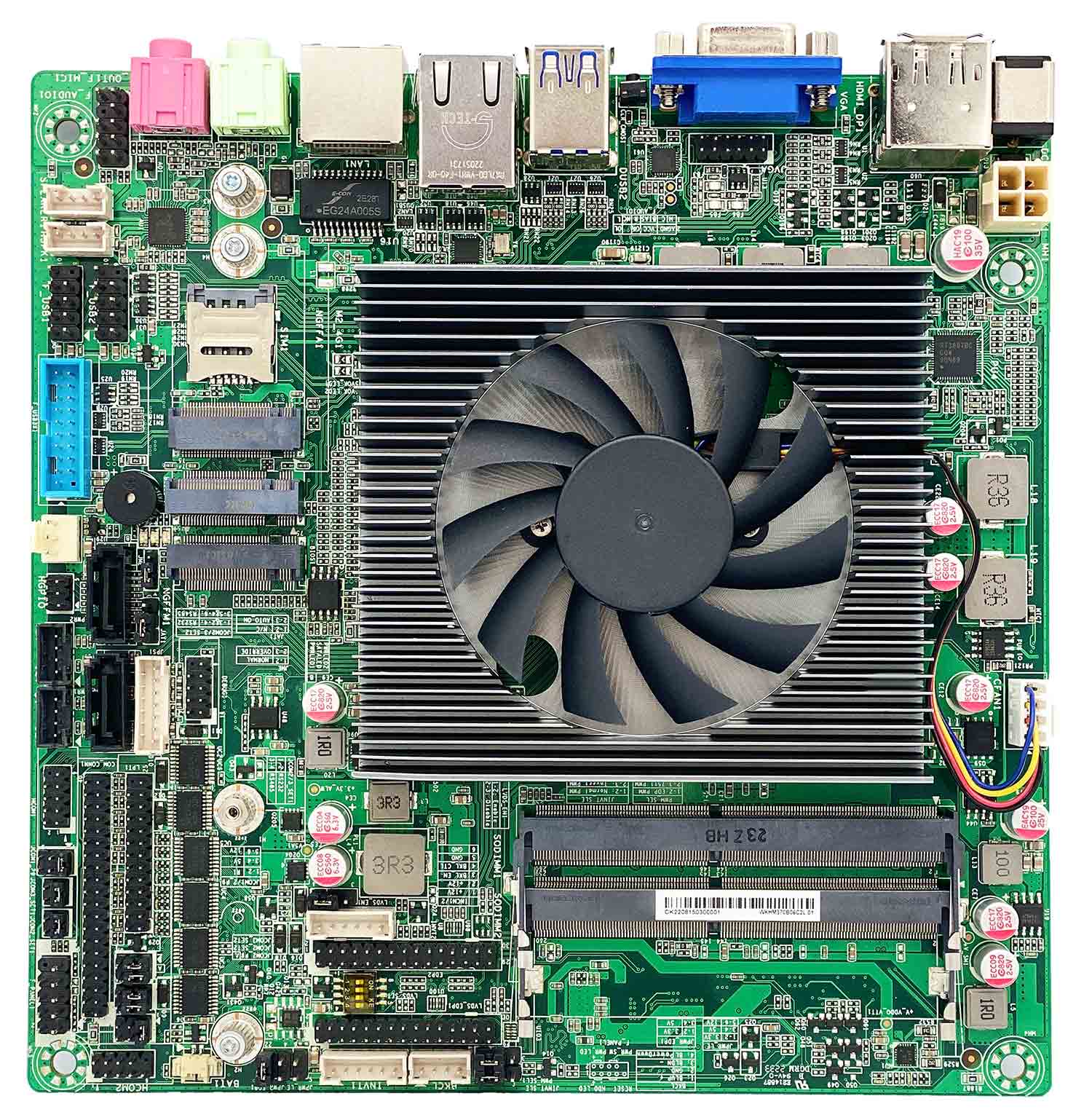

WK-HM370B0-6C2L
Intel® Coffee lake-H/Coffee lake refresh/Comet lake-H Processor；BGA1440；Intel HM300 series/QM300 series/CM200 series support 8/9/10 generation CPU (HM400/Z300 series only support 10 generation CPU)；2*SO-DIMM, 4/6*USB3.0；4*USB2.0；6*COM232；2*SATA3.0；3*M.2
processor：Intel® Coffee lake-H/Coffee lake refresh/Comet lake-H Processor；BGA1440；
chipset：Intel HM300 series/QM300 series/CM200 series support 8/9/10 generation CPU (HM400/Z300 series only support 10 generation CPU)；
Display chip：Intel® UHD Graphics
memory：2*SO-DIMM,DDR4 2666/2933MHz max64GB
Display output：HDMI、VGA、EDP2/DP、LVDS/EDP1 (Support 3 display synchronous/asynchronous output)
storage：2*SATA3.0；1*M.2 Key M Support Nvme&SATA SSD
USB:4*USB2.0；4/6*USB3.0；
Support 6*COM232 (COM2 and COM3 support RS232/485 options)
Onboard 1/2*Realtek RT8111 gigabit network card (LAN2 and USB3.0 optional)
Expansion slot：1*M.2 Key A （for WiFi+Bluetooth Expandable）
Expansion slot：1*M.2 Key B (for 4G Expandable,5G optional support)
