| General | |
| CPU | Intel® LGA1150(Haswell) Processor |
| Chipset | Intel® H81 |
| Memory | 1*SO-DIMM DDR3 1600MHz Max8GB |
| Storage | 1*SATA；1*mSATA |
| Expansion Interface | 1*Mini_PCIe(Support WiFi+Bluetooth/4G expansion module) |
| BIOS | AMI BIOS |
| System | Linux/Windows XP/Windows 7/Windows 8/Windows 8.1/Windows 10 |
| I/O Interface | |
| Ethernet | 2*Realtek® RTL8111 1Gbps Ethernet Controller，RJ45 |
| Serial | 10*RS232 |
| USB | 2*USB 3.0, 6*USB 2.0 |
| Audio | On board Realtek ALC897 audio decoding controller |
| Others | 9*COM Header（Expandable 9 * COM232, in which COM2 supports 232/485 jump cap selection） 1*4PIN ATX 2*USB2.0 Header（Expandable 4*USB2.0） 1*PANEL Header 1*GPIO Header（2-way GPIO, 3.3V/5V/12V power supply） 1*VGA Header 1*F_AUDIO Header 1*SATA interface 1*SATA-PWR Header 1*CPU-FAN Header 1*SFAN Header 1*LVDS Header 1*IVCN Header 1*BCTL1 Header 1*PCIE X16 slot |
| Display | |
| Display Interface | VGA、LVDS |
| Mechanical & Environment | |
| Dimension | 170X170MM |
| Power Input | DC/4PIN ATX 12V power supply |
| Temperature | Operation: 0℃~60℃, Storage: -20℃~75℃ |
| Relative Humidity | 0% ~ 95%, non-condensing |

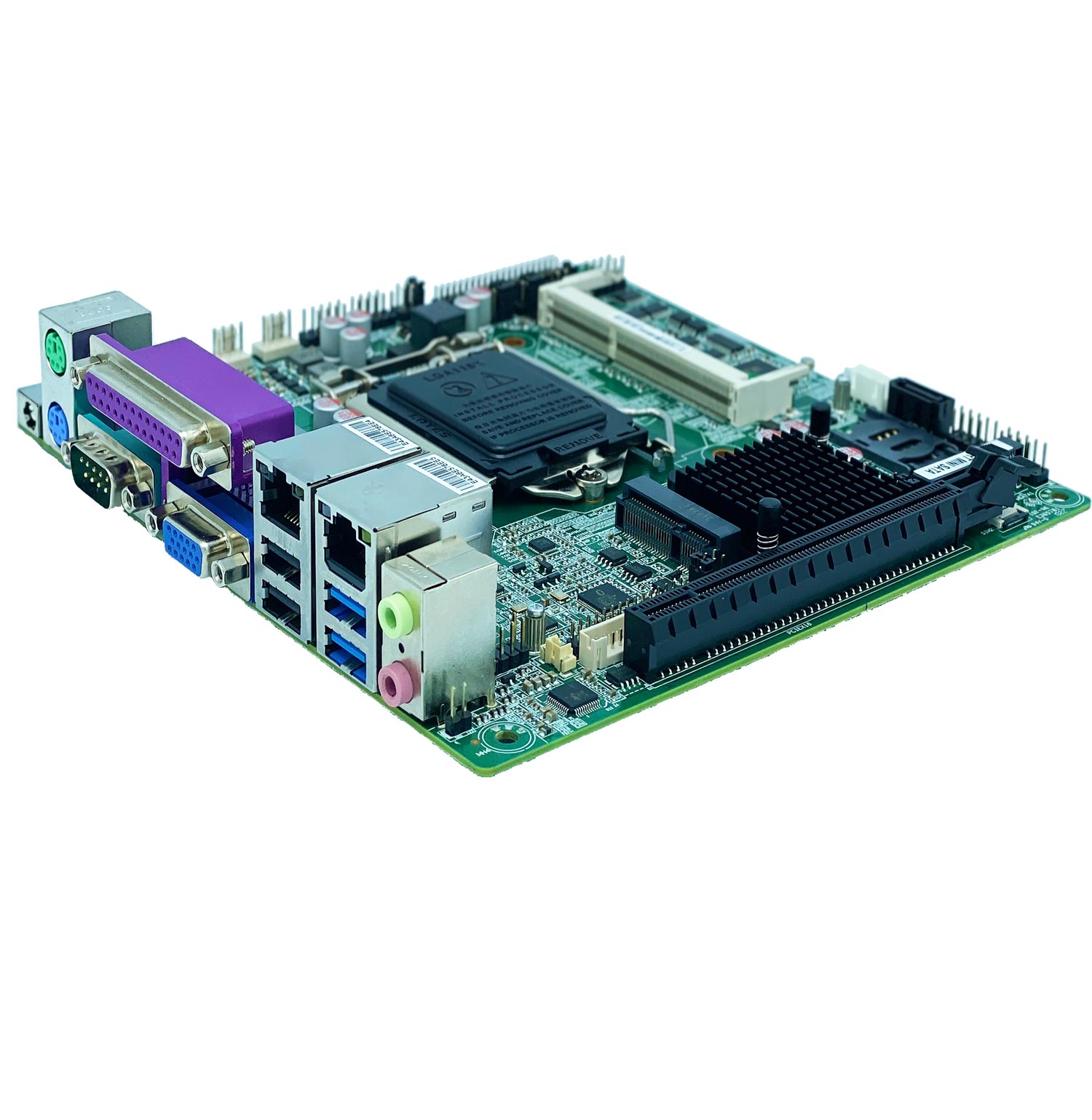

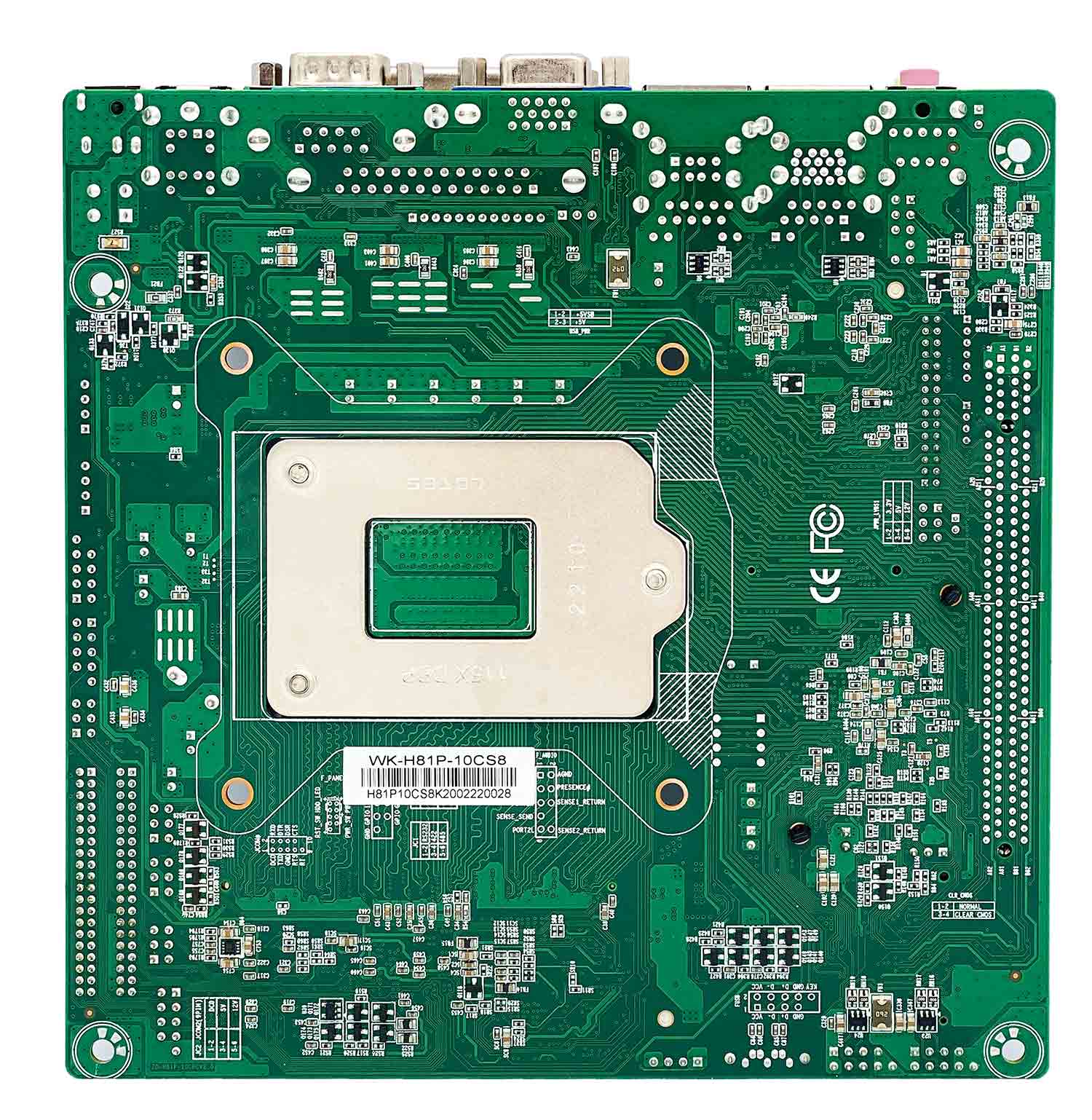

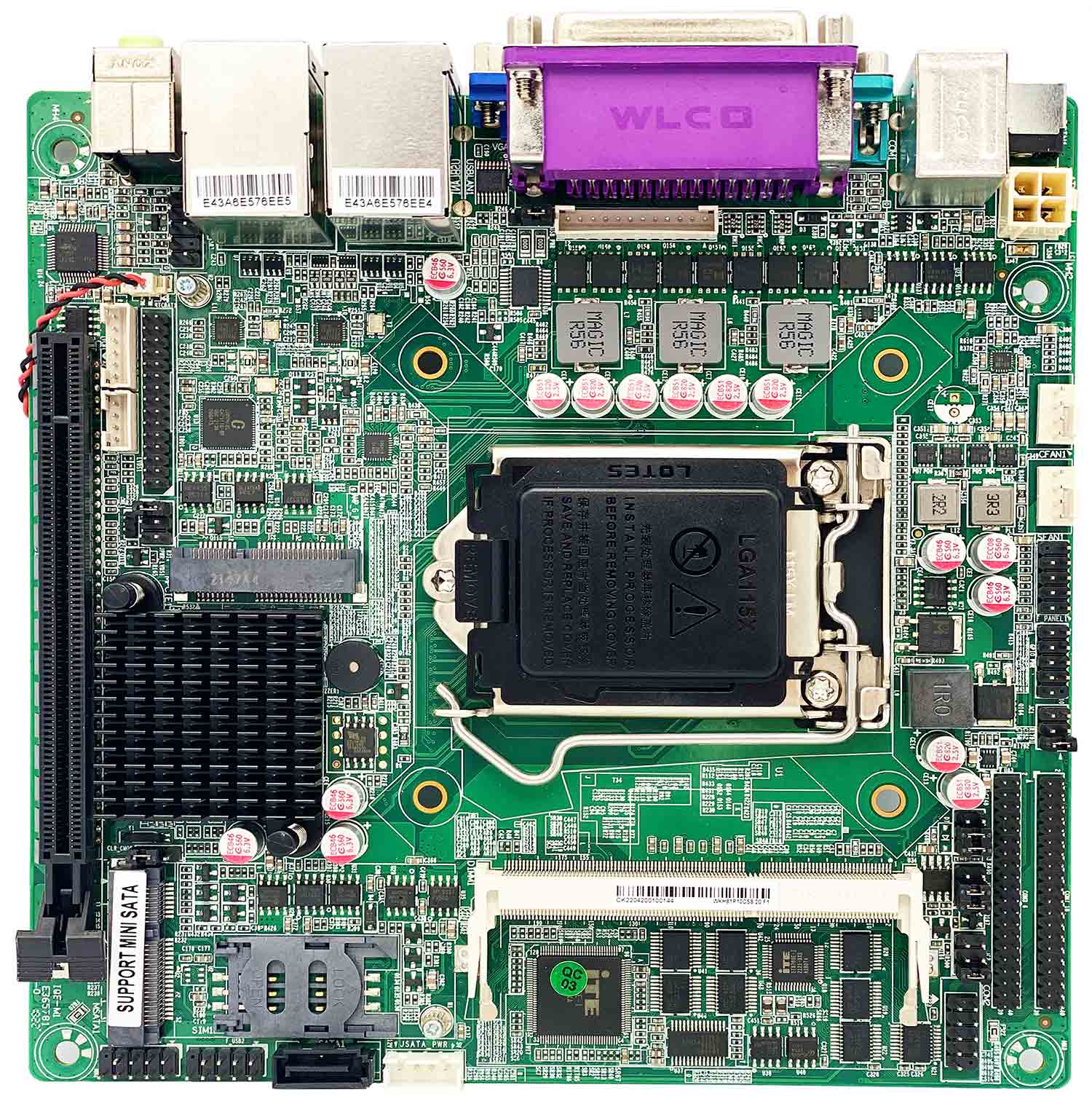

WK-H81P-10CS8
Intel®LGA1150(Haswell) Processor；Intel ® H81；1*SO-DIMM, 2*USB3.0；6*USB2.0；10*COM232；1*mSATA；1*SATA；1*Mini PCIe；2*LAN
processor：Intel® LGA1150(Haswell) Processor
chipset：Intel® H81
Display chip：Intel ® HD Graphics integrated graphics card
memory：1*SO-DIMM DDR3 1600MHz Max8GB
Display output：VGA、LVDS
storage：1*SATA、1*mSATA
USB:6*USB2.0；2*USB3.0；
Support 10*COM232 (COM2 supports 232/485 jump cap selection)
Onboard 2*Realtek RT8111 gigabit network card
Expansion slot：1*Mini_PCIe(Support Wi+Bluetooth/4G expansion module)
Supports PS/2 and LPT functions
