| General | |
| CPU | Intel® Bay Trail J1900/J1800/N2840 Processor |
| Chipset | Intel® SOC |
| Memory | 1*SO-DIMM DDR3L 1333 Max 8GB |
| Storage | 1*SATA；1*mSATA |
| Expansion Interface | 1*Mini_PCIe(Support WiFi+Bluetooth/4G expansion module) |
| BIOS | AMI BIOS |
| System | Linux/Windows XP/Windows 7/Windows 8/Windows 8.1/Windows 10 |

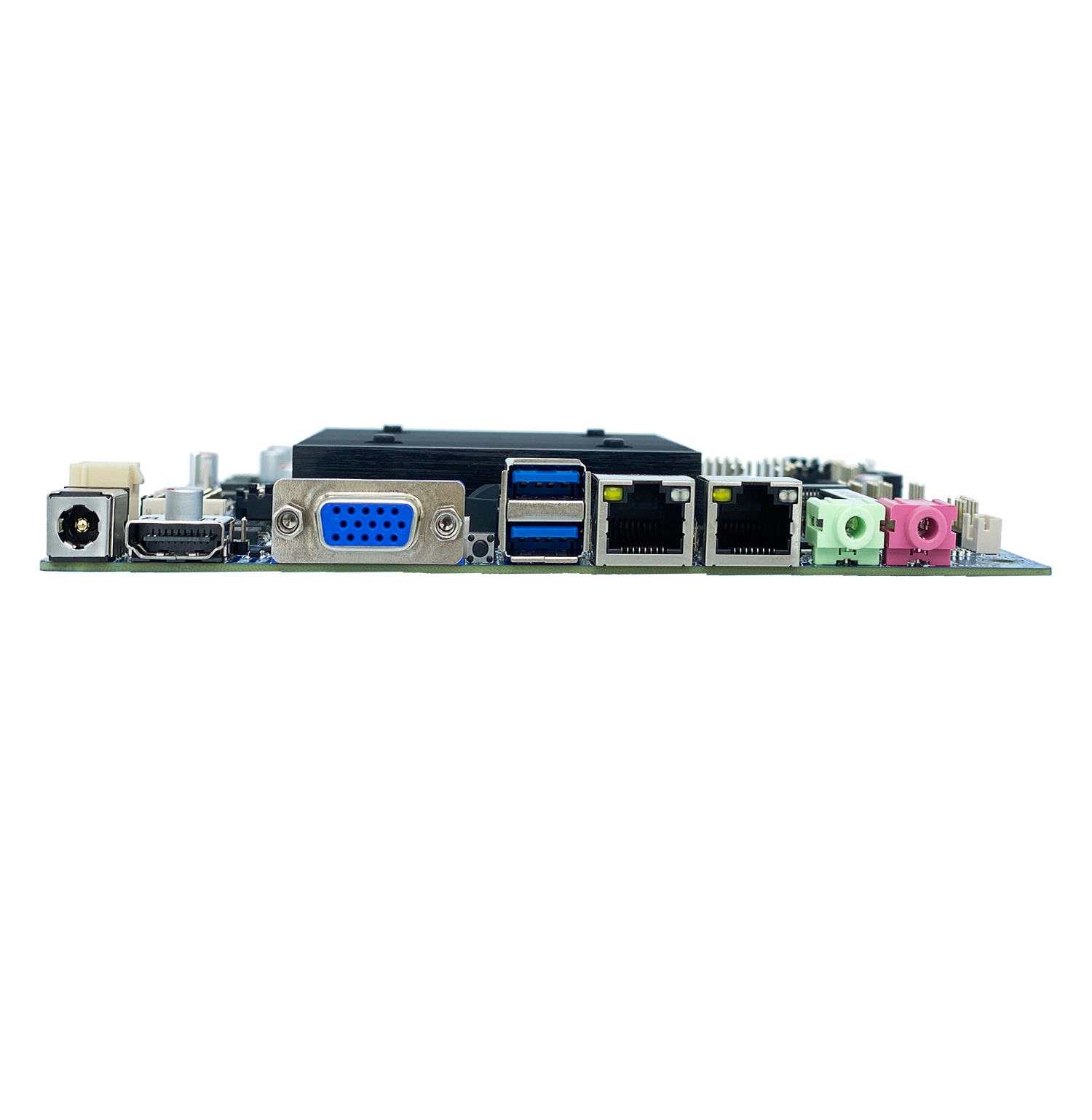

| I/O Interface | |
| Ethernet | 2*Realtek® RTL8111 1Gbps Ethernet Controller，RJ45 |
| Serial | 6*RS232 |
| USB | 1*USB 3.0, 6*USB 2.0 |
| Audio | On board ALC269 audio decoding controller built-in power amplifier output 2.2W@4 Ω max |
| Others | 1*VGA Header 1*HDMI Header 1* SPEAKER Header 1* F_AUDIO Header 3*F-USB2.0 Header（Expandable 5*USB2.0） 1*SATA interface 1*SATA_PWR Header 6*COM Header 1*F_PANEL Header 1*PS2 Header 1*PRINT Header 1*GPIO Header 1*CFAN Header 1*LCTL1 Header 1*INCN1 Header 1*LVDS Header（Note that Pin6 requires wire grounding） 1*4PIN ATX Header 1*JRS485 Header 1*JME Header |
| Display | |
| Display Interface | HDMI、VGA、LVDS (Support asynchronous/synchronous dual display output) |
| Mechanical & Environment | |
| Dimension | 170X170MM |
| Power Input | DC12V power supply |
| Temperature | Operation: 0℃~60℃, Storage: -20℃~75℃ |
| Relative Humidity | 0% ~ 95%, non-condensing |

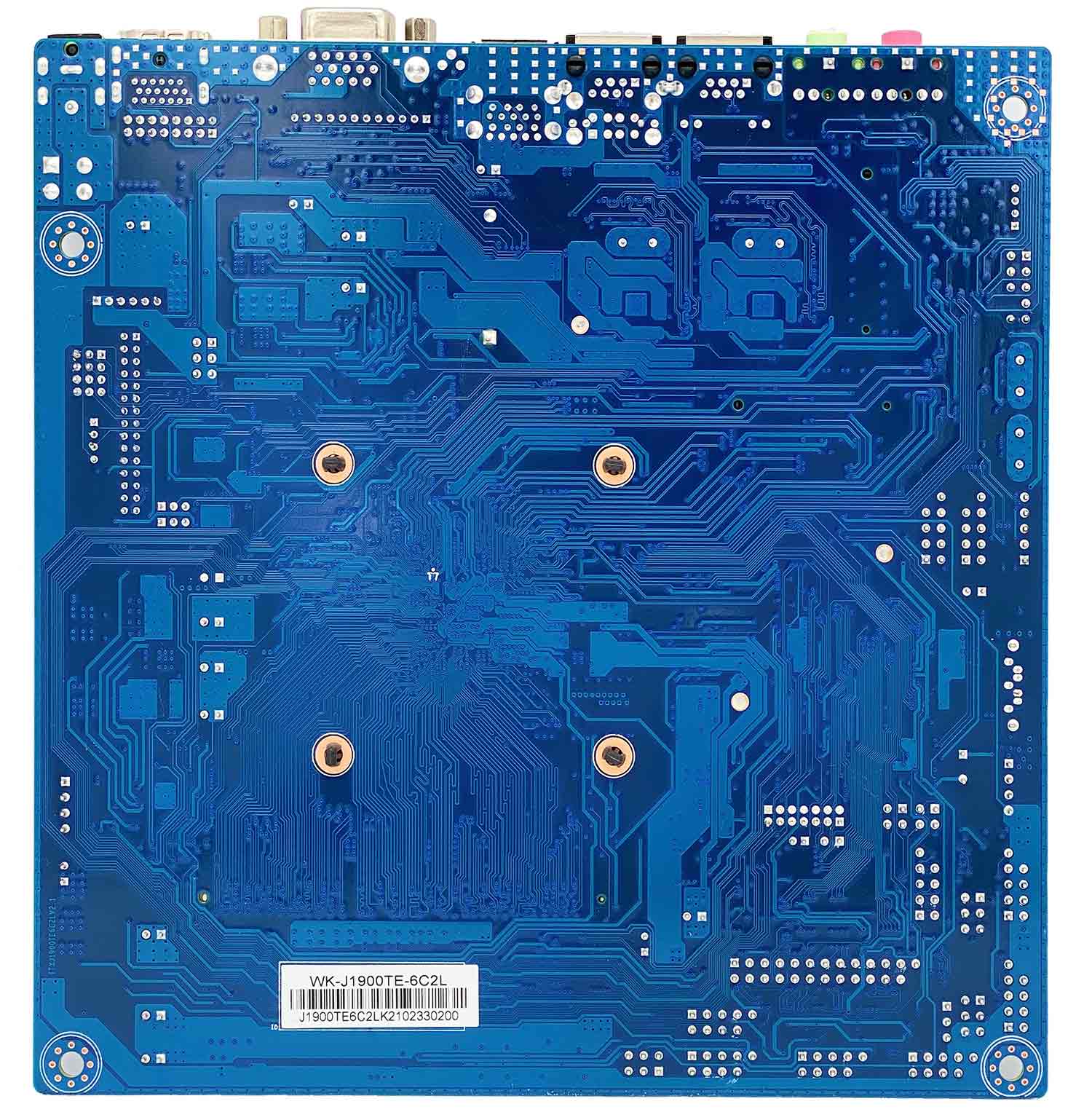

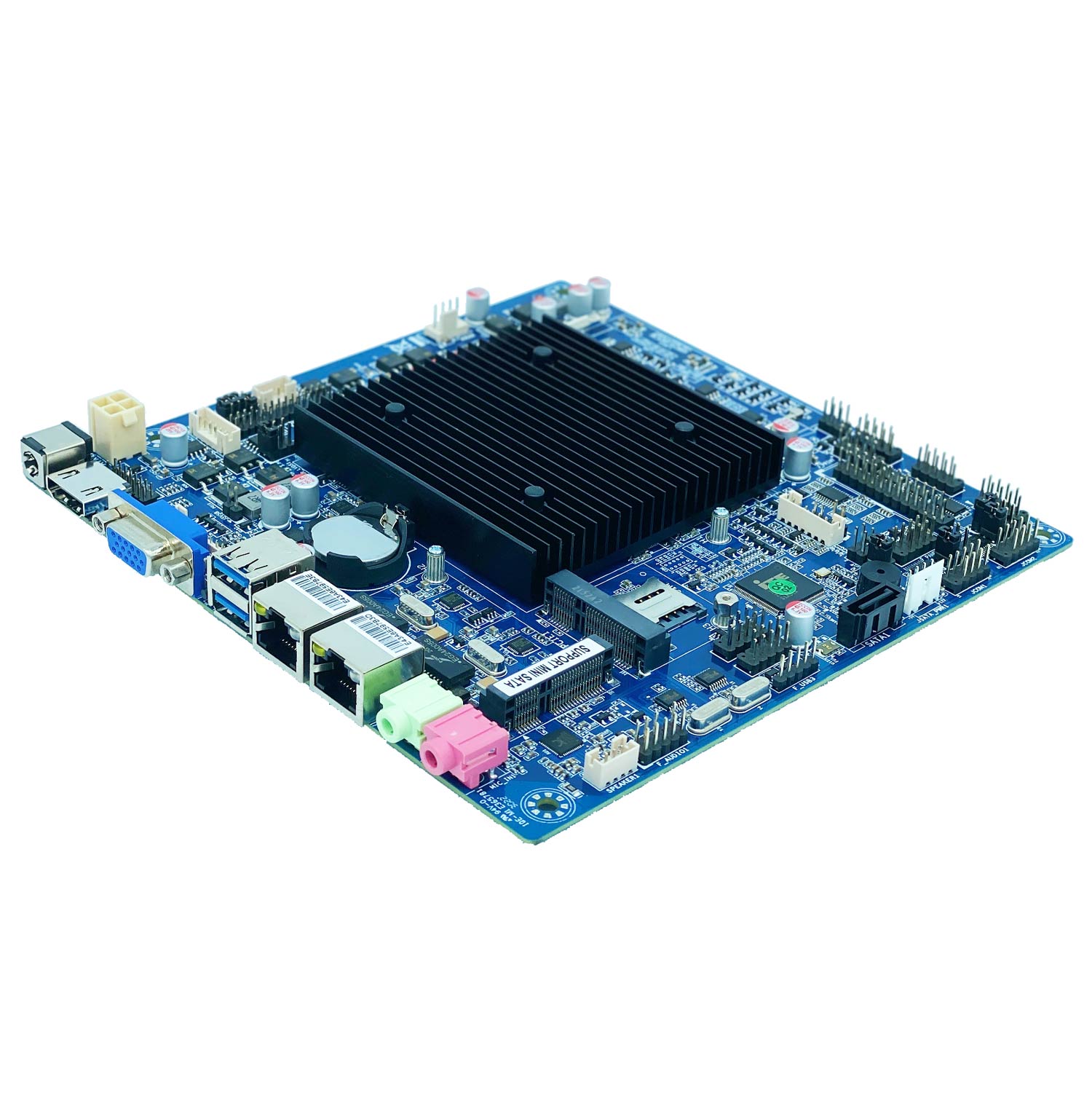

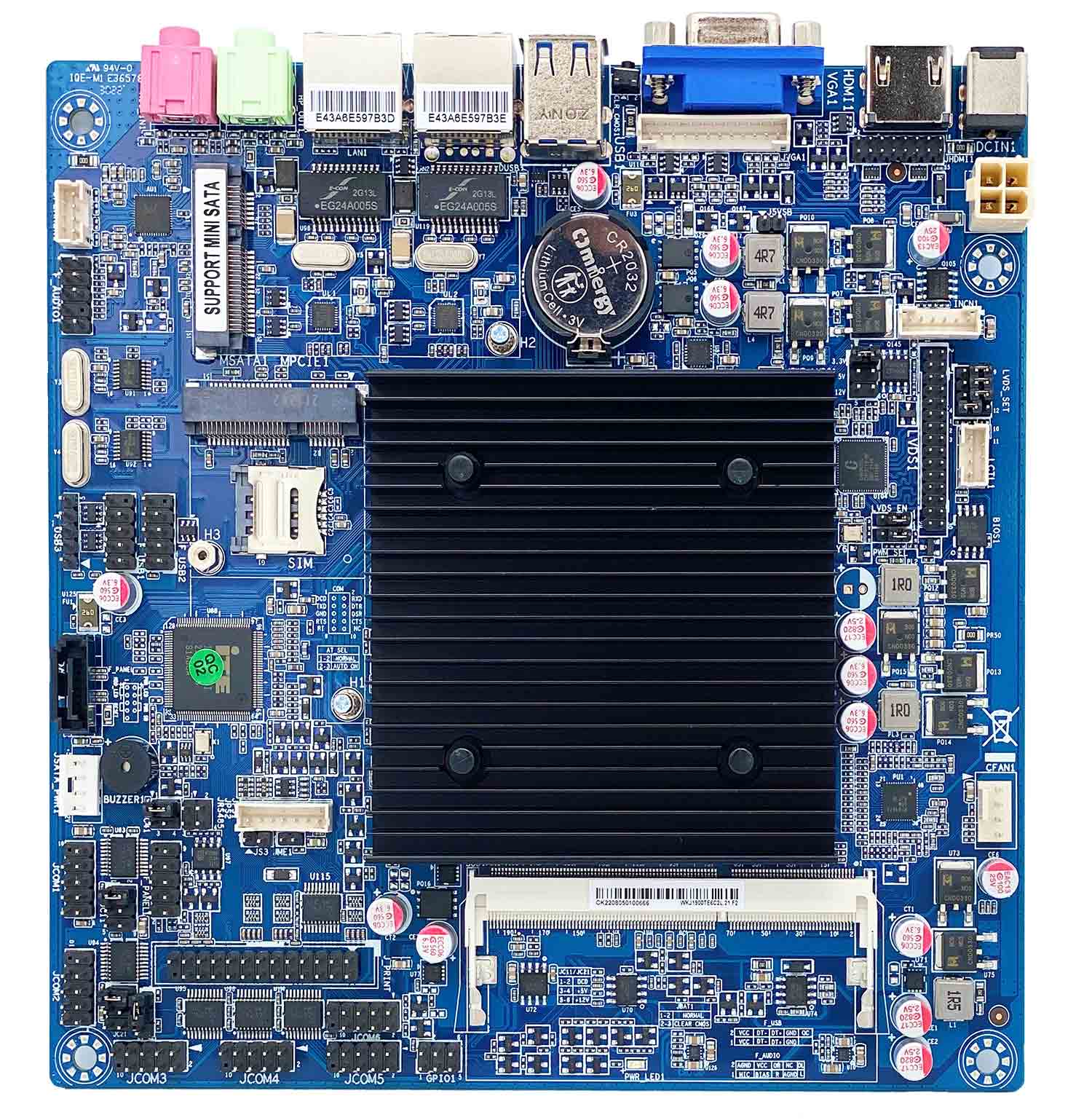

WK-J1900TE-6C2L
Intel Bay Trail J1900/J1800/N2840 Processor；Intel ® SOC chip；1*SO-DIMM, 1*USB3.0；6*USB2.0；6*COM232；1*mSATA；1*SATA；1*Mini PCIe
processor：Intel® Bay Trail J1900/J1800/N2840 Processor
chipset：Intel® SOC
Display chip：Intel® HD Graphics for Intel Atom® Processor Z3700 Series
memory：1*SO-DIMM DDR3L 1333 Max 8GB
Display output：HDMI、VGA、LVDS (Support asynchronous/synchronous dual display output)
storage：1*SATA、1*mSATA
USB:6*USB2.0；1*USB3.0；
Support 6*COM232（COM2 supports 485 jump cap options）
Onboard 2*Realtek RT8111 gigabit network card(Single network optional)
Expansion slot：1*Mini_PCIe(Support Wi+Bluetooth/4G expansion module)
IO supports one click CMOS
