| General | |
| CPU | Intel® Celeron® J4105/J4125/N4000 Processor |
| Chipset | Gemini Lake chip |
| Memory | 1*SO-DIMM DDR4 2400MHz Max8GB |
| Storage | 1*SATA 3.0 1*mSATA (support SATA SSD expansion module) |
| Expansion Interface | 1*Mini_PCIe(support WIFI&Bluetooth/4G module) |
| BIOS | AMI BIOS |
| System | Linux, Windows10/11 |

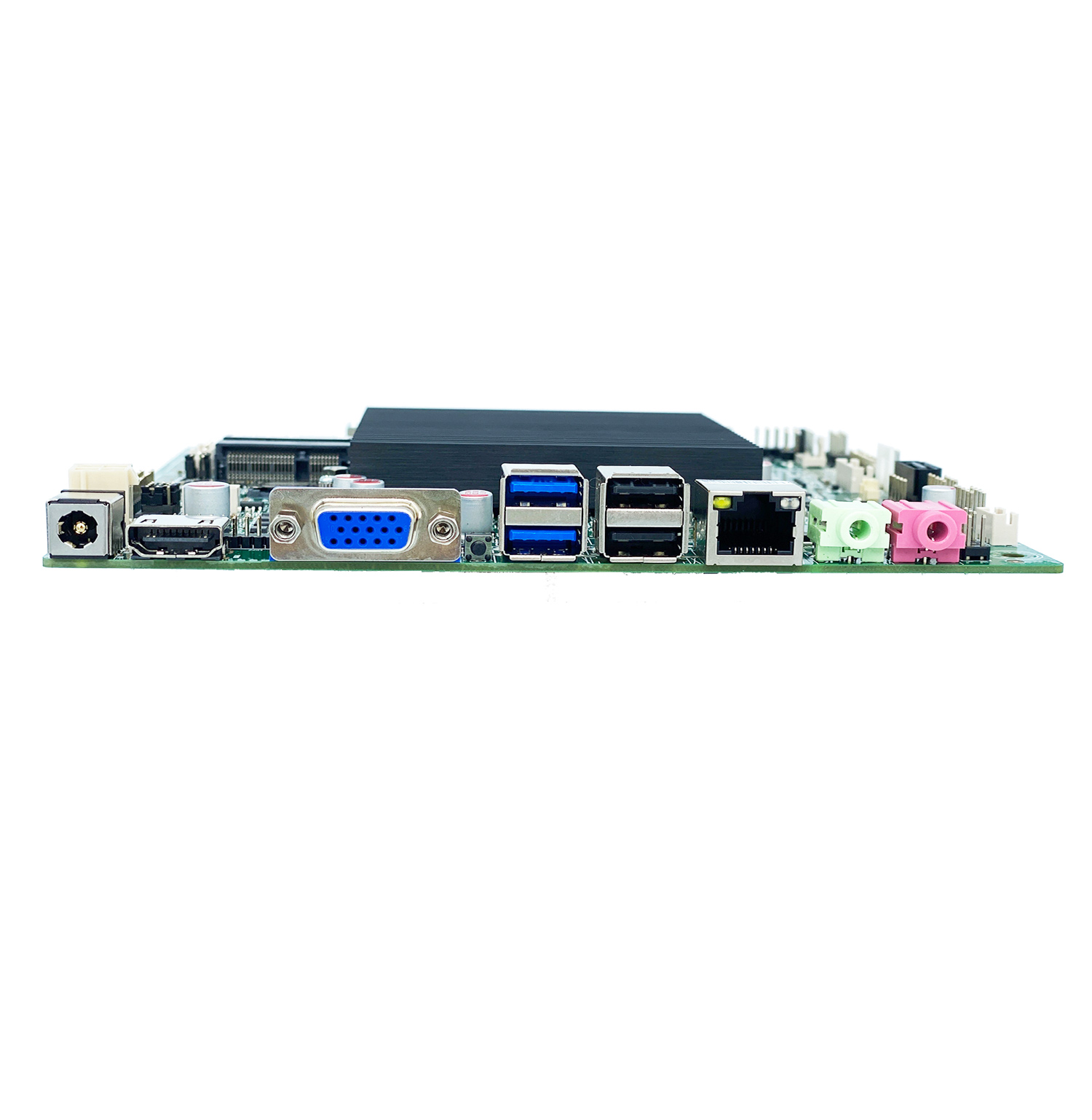

| I/O Interface | |
| Ethernet | 1*Realtek® RTL8111 1Gbps Ethernet Controller, RJ45 |
| Serial | 6*RS232 |
| USB | 2*USB 3.0, 7*USB 2.0 |
| Audio | Onboard audio decoding controller, built-in power amplifier output 3W@4 Ω； 1.7W@8 Ω max |
| Others | 1*EDP2 Header(This pin has no function by default) 1*VGA_H Header 1*F-AUDIO Header 1*SPEAKER Header 3*F_USB2.0 Header（Scalable 5*USB2.0） 1*SATA interface 1*SATA_PWR Header 1*JPS/2 Header 1*J_PRINT Header 1*F_PANEL Header 2*COM232 Header(Support one RS485 option, COM1 and COM2 support live optional DCD/5V/12V) 1*COM_CON Header（4*COM232） 1*GPIO Header 1*INCN1 Header 1*LVDS Header 1*LCTL1 Header 1*SIM card slot 1*ATX Header |
| Display | |
| Display Interface | VGA+HDMI+LVDS (Support 3 display synchronous/asynchronous output) |
| Mechanical & Environment | |
| Dimension | 170X170MM |
| Power Input | DC/4PIN 12V power supply |
| Temperature | Operation: 0℃~60℃, Storage: -20℃~75℃ |
| Relative Humidity | 0% ~ 95%, non-condensing |

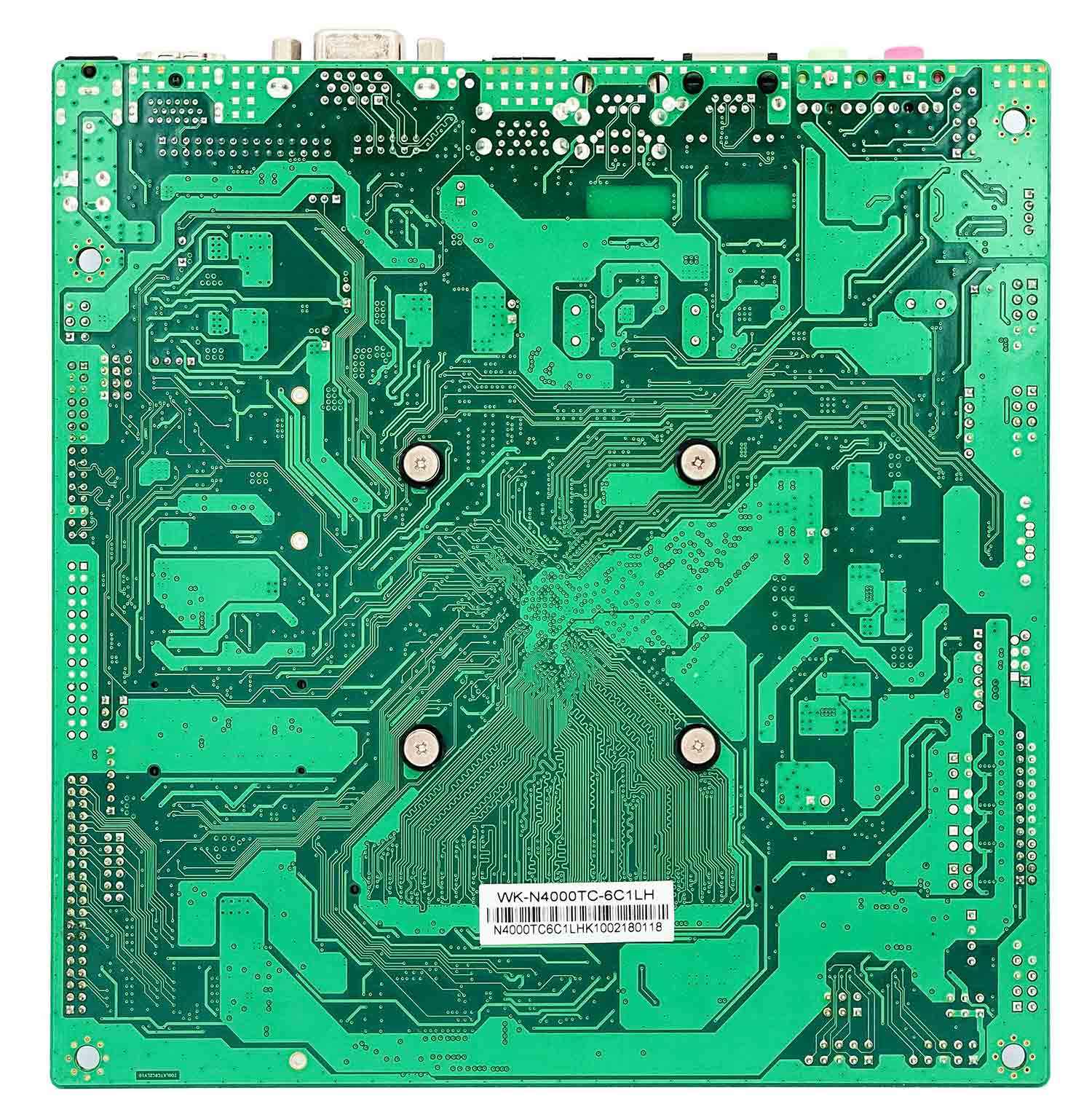

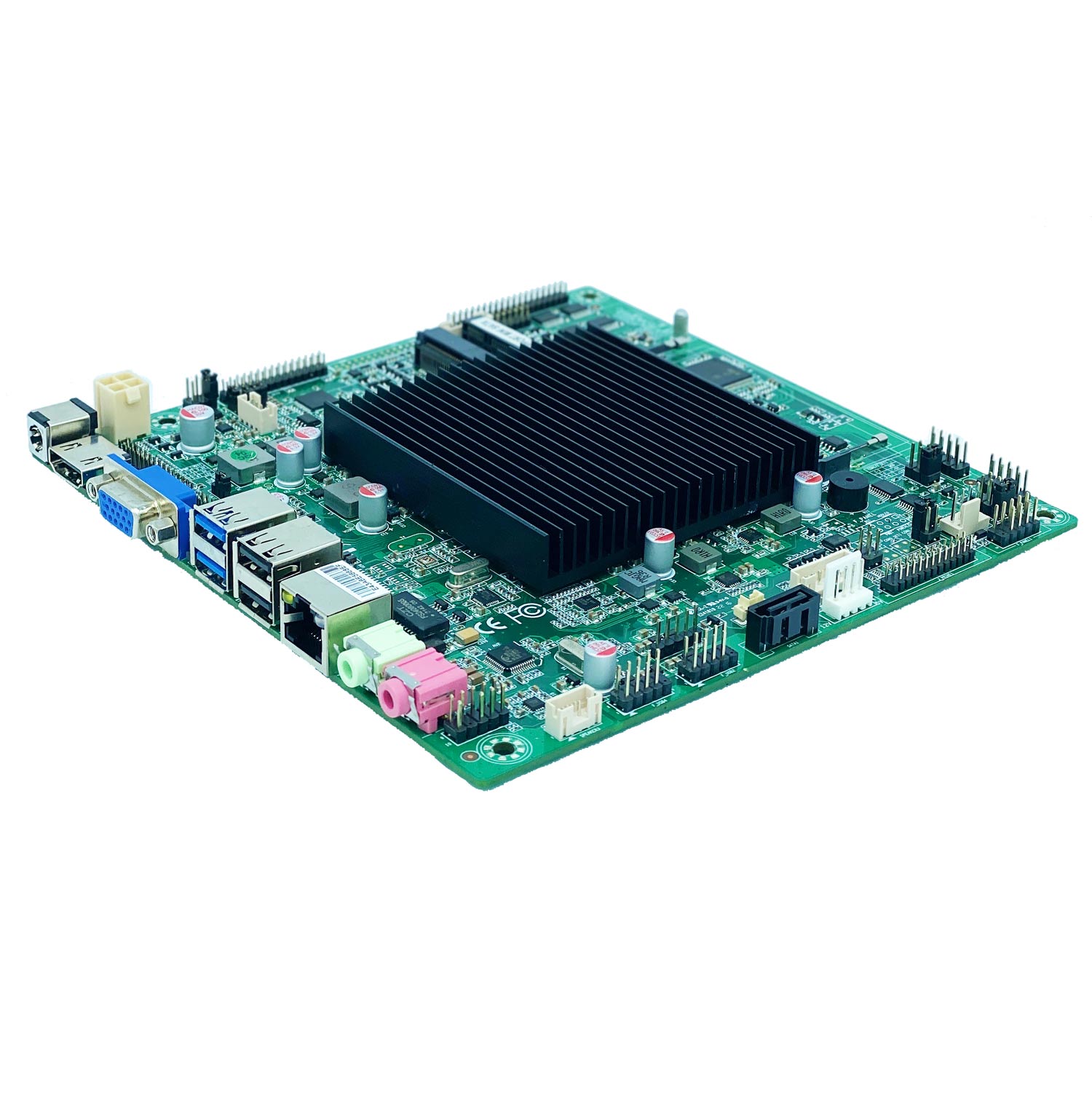

WK-N4000TC-6C1LH
Intel® Celeron® J4105/J4125/N4000 Processor；Gemini Lake chipset；1*SO-DIMM；7*USB2.0 ；2*USB3.0；6*COM232；1*Mini_PCIe；1*SATA3.0；1*mSATA
processor：Intel® Celeron® J4105/J4125/N4000 Processor
chipset：Gemini Lake
Display chip：Intel® HD Graphics
memory：1*SO-DIMM DDR4 2400MHz Max8GB
Display output：VGA 、HDMI、LVDS (Support 3 display synchronous/asynchronous output)
storage：1*SATA3.0；1*mSATA(support SATA SSD expansion module)
USB:7*USB2.0 ；2*USB3.0
support 6*COM232
On board 1 * RTL8111 gigabit network card （Dual network optional）
Expansion slot：1*Mini_PCIe(support WIFI+Bluetooth/4G)
