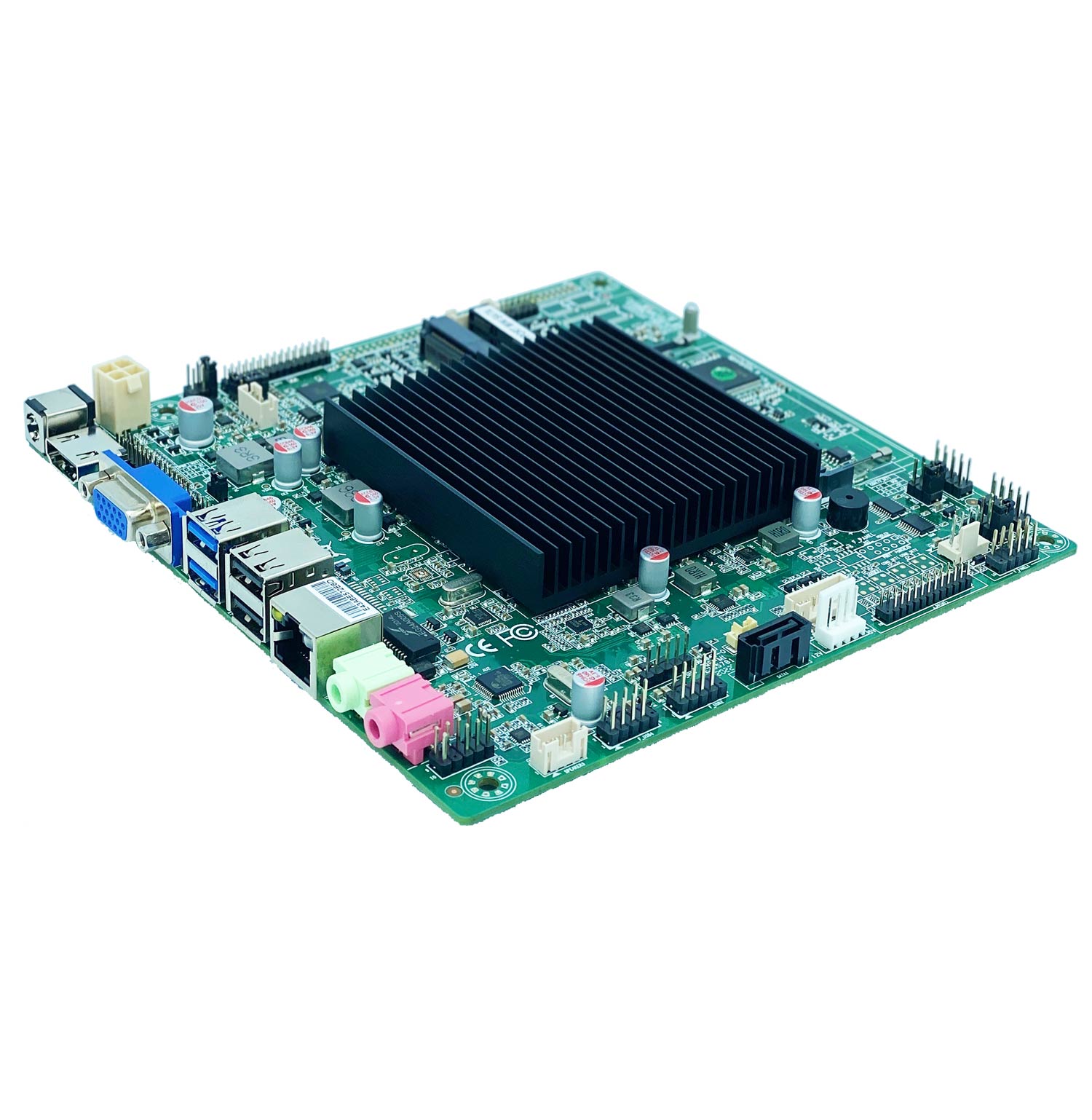

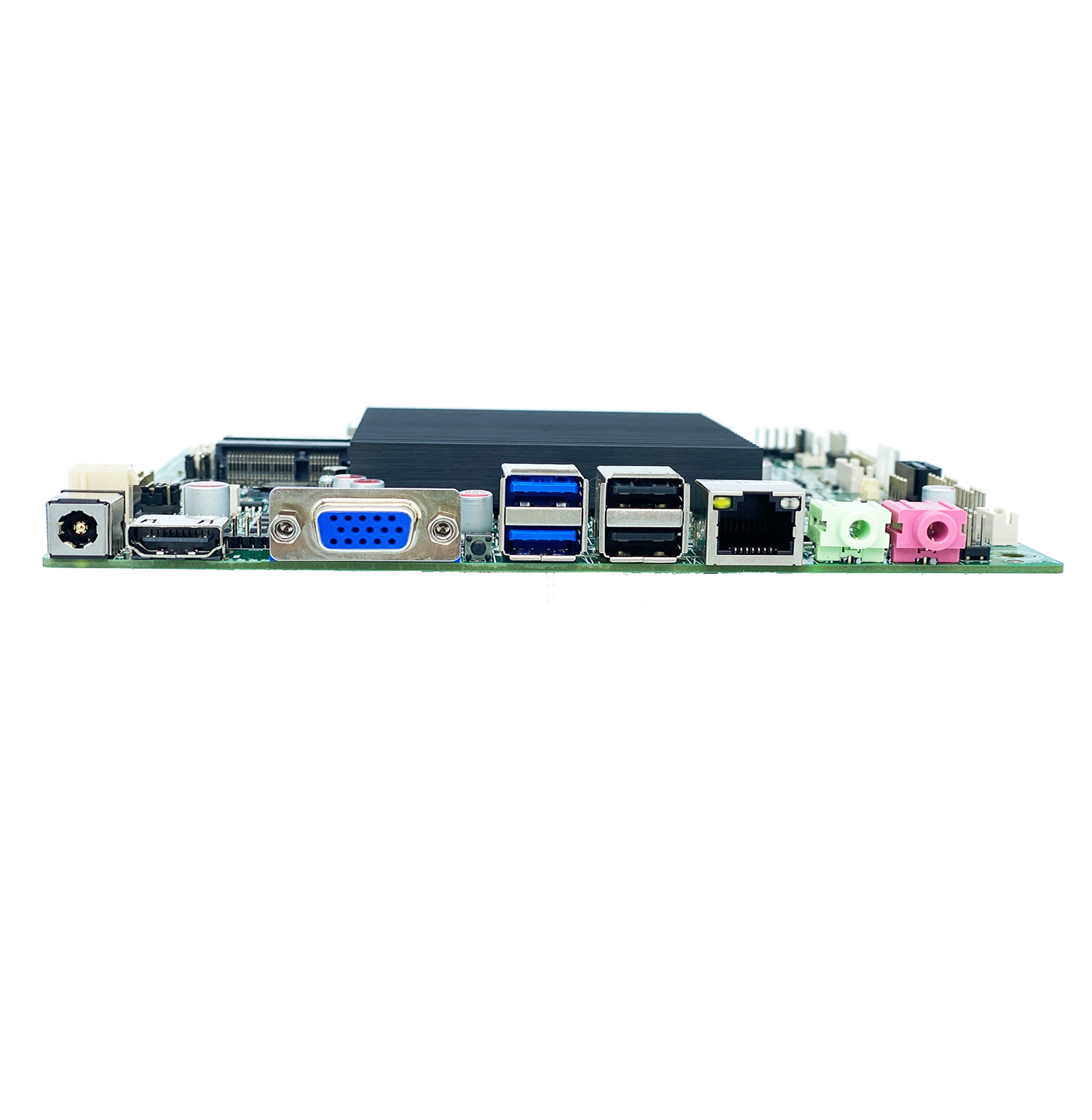

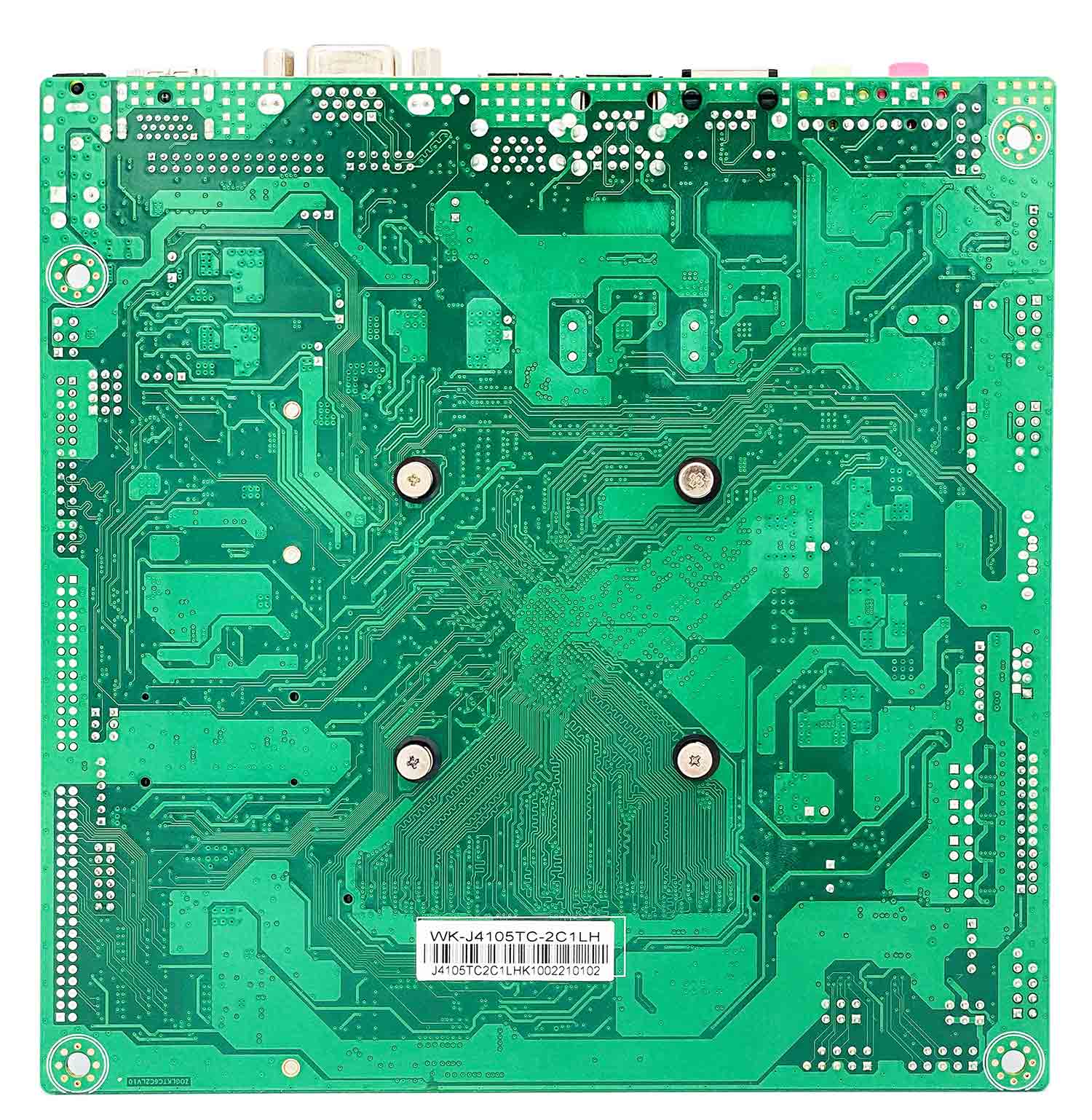

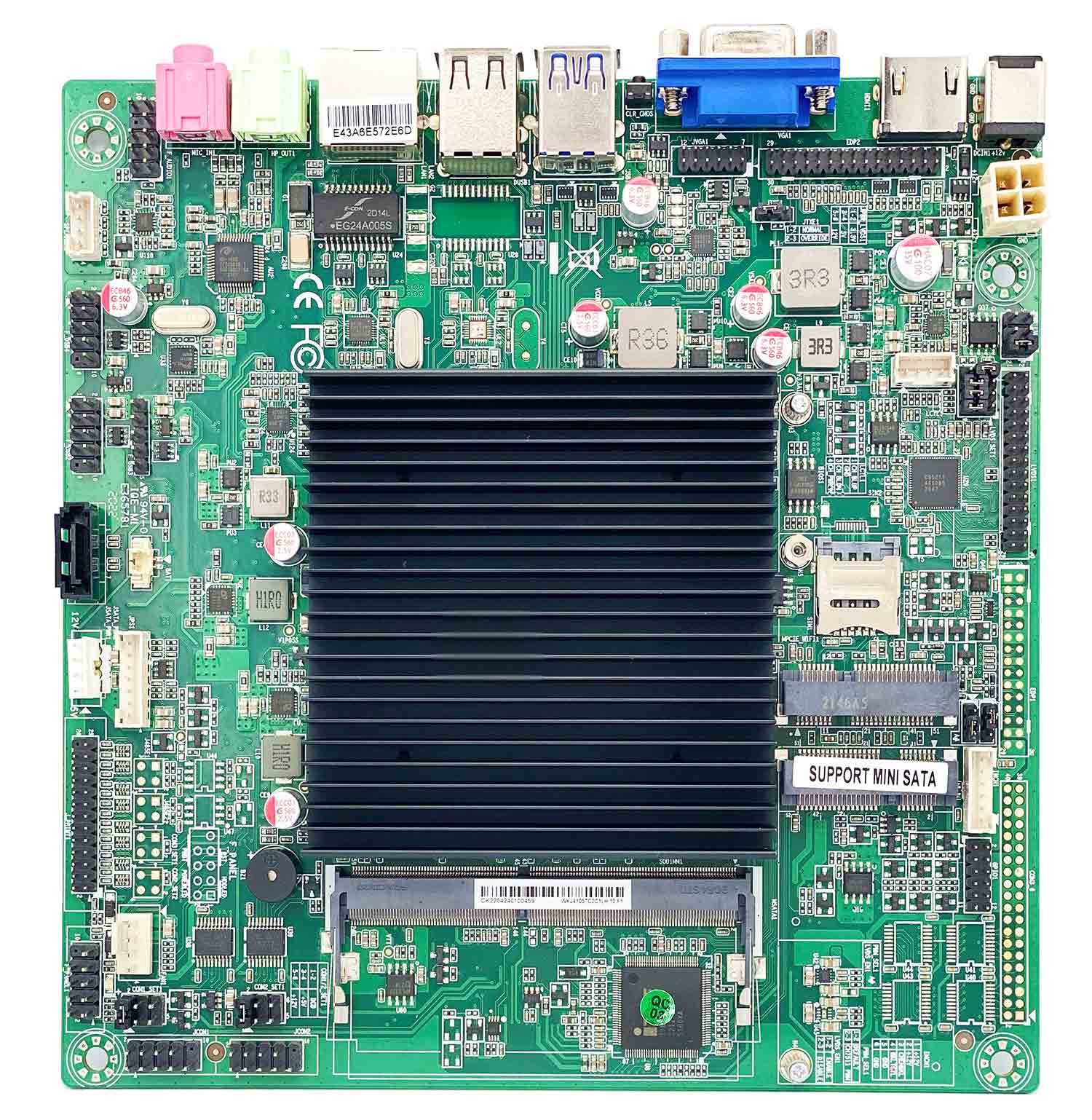

WK-J4105TC-2C1LH

Intel® Celeron® J4105/J4125 Processor;Gemini Lake chipset;1*SO-DIMM;7*USB2.0 ;2*USB3.0;2*COM232;1*Mini_PCIe;1*SATA3.0;1*mSATA

processor:Intel® Celeron® J4105/J4125 Processor

chipset:Gemini Lake

Display chip:Intel® HD Graphics

memory:1*SO-DIMM DDR4  2400MHz  Max8GB

Display output:VGA 、HDMI、LVDS (Support 3 display synchronous/asynchronous output)

storage:1*SATA3.0;1*mSATA(support SATA SSD expansion module)

USB:7*USB2.0 ;2*USB3.0

support 2*COM232

On board 1 * RTL8111 gigabit network card  (Dual network optional)

Expansion slot:1*Mini_PCIe(support WIFI+Bluetooth/4G)

规格参数
General
CPU
Intel® Celeron® J4105/J4125 Processor
Chipset
Gemini Lake chip
Memory
1*SO-DIMM  DDR4 2400MHz  Max8GB
Storage
1*SATA 3.0

1*mSATA (support SATA SSD  expansion module)

Expansion Interface

1*Mini_PCIe(support WIFI&Bluetooth/4G module)

BIOS
AMI  BIOS
System
Linux, Windows10/11
I/O Interface
Ethernet
1*Realtek® RTL8111  1Gbps Ethernet Controller, RJ45
Serial
2*RS232
USB
2*USB 3.0, 7*USB 2.0
Audio

Onboard audio decoding controller, built-in power amplifier output 3W@4 Ω;

 1.7W@8 Ω max

Others

1*EDP2 Header(This pin has no function by default)

1*VGA_H  Header

1*F-AUDIO Header

1*SPEAKER Header

3*F_USB2.0 Header(Scalable 5*USB2.0)

1*SATA interface

1*SATA_PWR Header

1*JPS/2 Header

1*J_PRINT Header

1*F_PANEL Header

2*COM232 Header(COM1 and COM2 support live optional DCD/5V/12V)

1*GPIO Header

1*INCN1 Header

1*LVDS Header

1*LCTL1 Header

1*SIM card slot

1*ATX Header

Display
Display Interface

VGA+HDMI+LVDS  (Support 3 display synchronous/asynchronous output)

Mechanical & Environment
Dimension

170X170MM

Power Input

DC/4PIN 12V power supply

Temperature Operation: 0℃~60℃, Storage: -20℃~75℃
Relative Humidity
0% ~ 95%, non-condensing
