| General | |
| CPU | Intel® Haswell i5-4210U/i5-4308U/i5-5200U Processor |
| Chipset | Intel SOC |
| Memory | 2*SO-DIMM DDR3L 1333/1600MHz |
| Storage | 1*SATA 3.0 1*mSATA (support SATA SSD expansion module) |
| Expansion Interface | 1*Mini_PCIe(support WIFI&Bluetooth/4G module) |
| BIOS | AMI BIOS |
| System | Linux/Windows10/Windows7/Windows8/Windows8.1 |

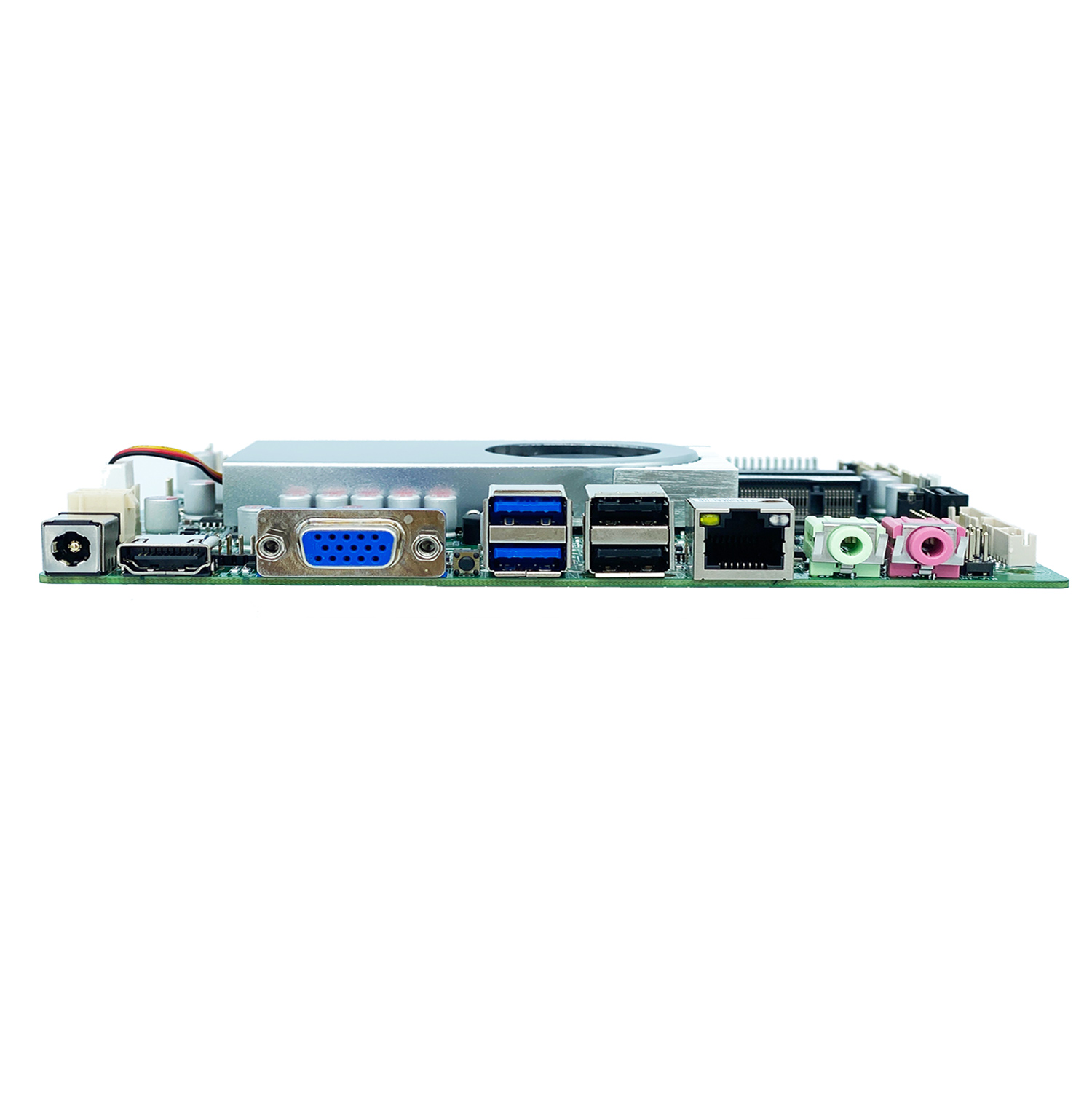

| I/O Interface | |
| Ethernet | 1*Realtek® RTL8111 1Gbps Ethernet Controller, RJ45 |
| Serial | 6*RS232 |
| USB | 2*USB 3.0, 7*USB 2.0 |
| Audio | Onboard audio decoding controller, built-in power amplifier output 3W@4 Ω； 1.7W@8 Ω max |
| Others | 3*F-USB2.0 Header（Scalable 5*USB2.0） 1*F-AUDIO Header 1* SPEAKER Header 6*COM232 Header（COM2 supports RS485 selection） 1*EDP2 Header (This pin has no function by default) 1*VGA Header 1*LVDS Header 1*PS/2 Header 1*F-PANEL Header 1*GPIO Header 1*PRINT Header 1*4PIN ATX Header 1*SATA interface 1*SATA_PWR Header 1*CPU_FAN1 Header 1*SYS_FAN1 Header 1*INVER1 Header 1*J485E1 Header |
| Display | |
| Display Interface | VGA+HDMI+LVDS (Support 3 display synchronous/asynchronous output) |
| Mechanical & Environment | |
| Dimension | 170X170MM |
| Power Input | DC/4PIN 12V power supply |
| Temperature | Operation: 0℃~60℃, Storage: -20℃~75℃ |
| Relative Humidity | 0% ~ 95%, non-condensing |

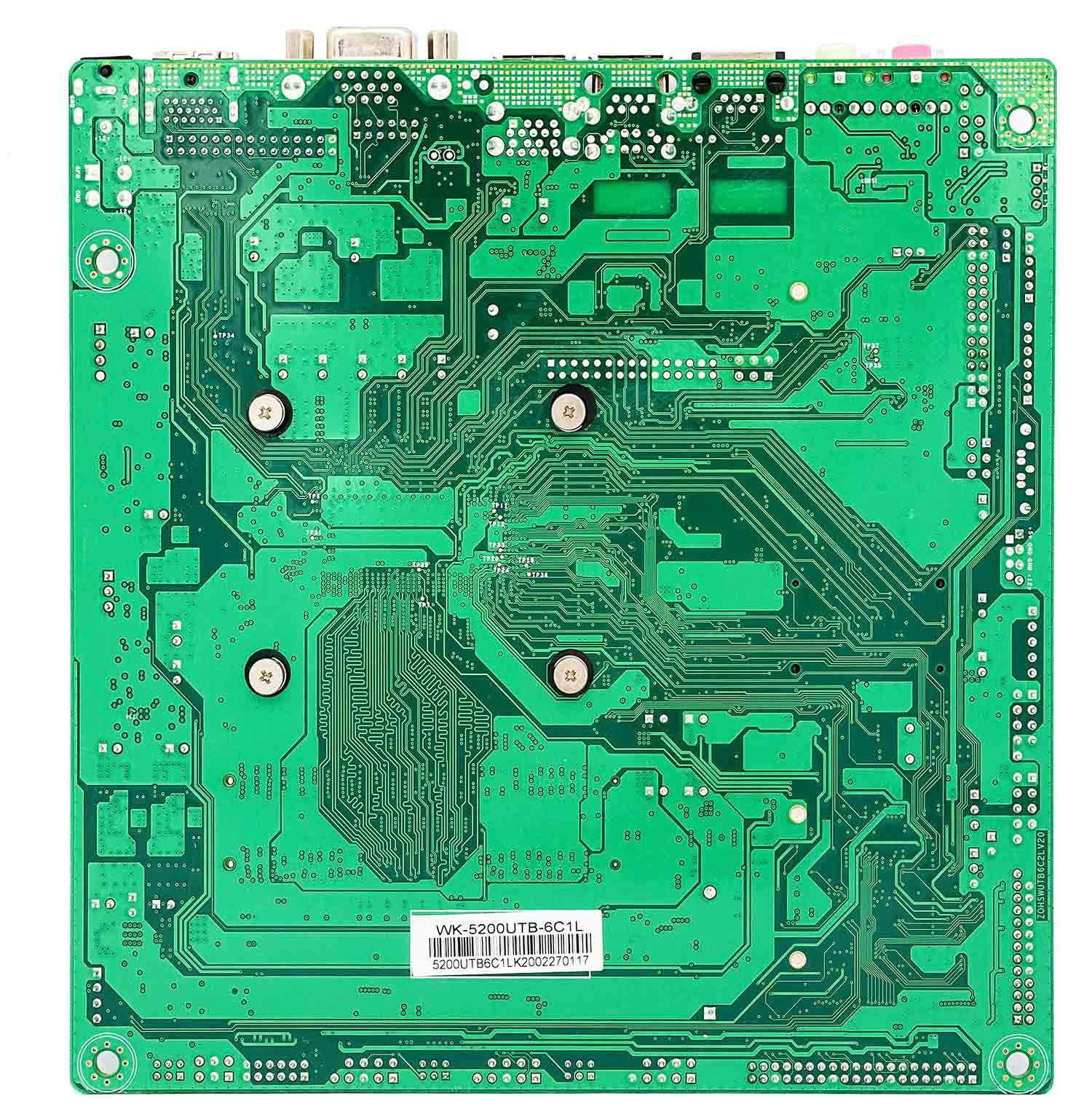

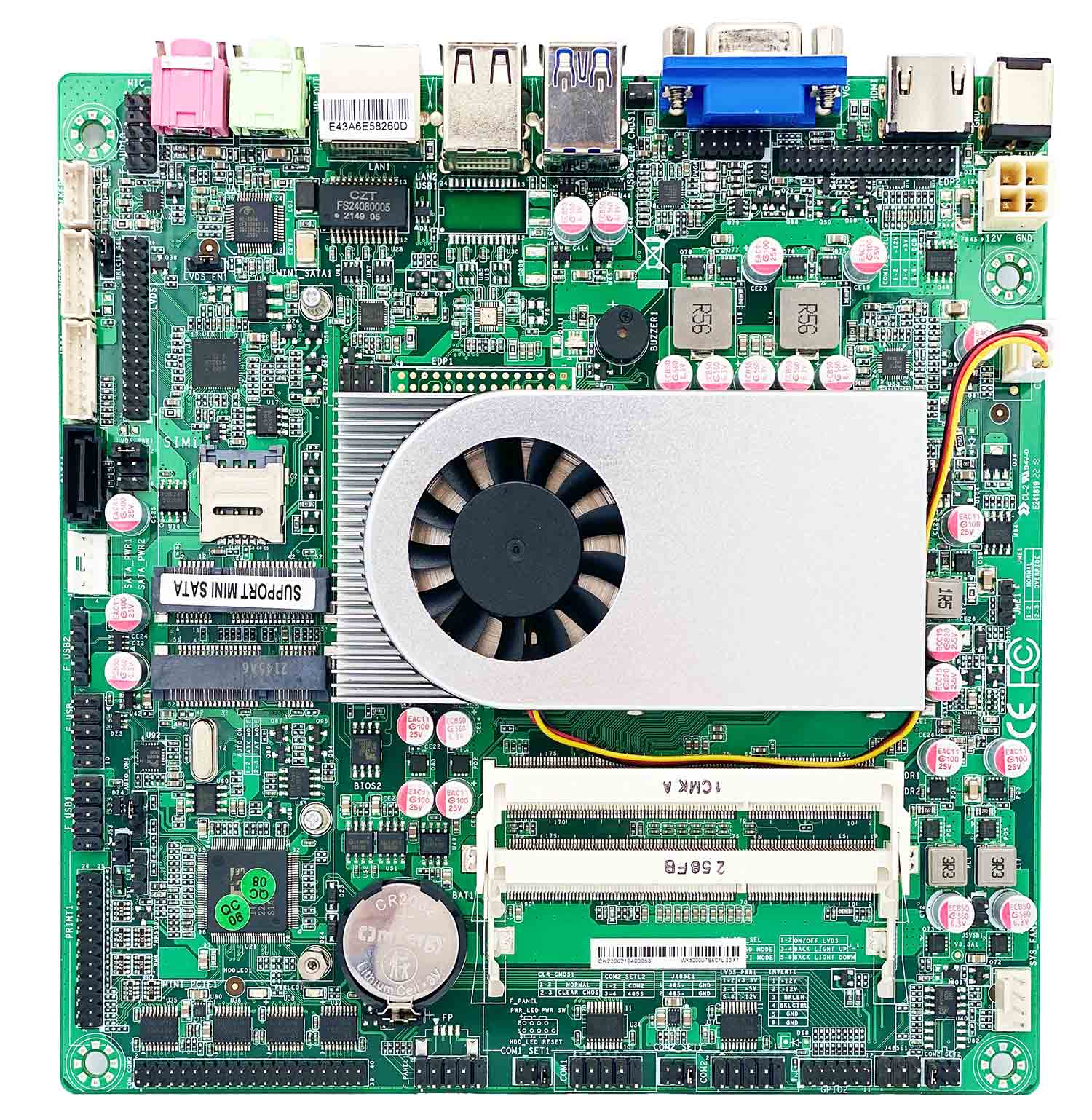

WK-4210UTB-6C1L
Intel® Haswell i5-4210U/i5-4308U/i5-5200U Processor；Intel SOC chipset；2*SO-DIMM；7*USB2.0；2*USB3.0；6*COM232；1*Mini_PCIe；1*SATA；1*mSATA
processor：Intel® Haswell i5-4210U/i5-4308U/i5-5200U Processor
chipset：Intel SOC
Display chip：Intel® HD Graphics
memory：2*SO-DIMM DDR3L 1333/1600MHz
Display output：VGA 、HDMI、LVDS (Support 3 display synchronous/asynchronous output)
storage：1*SATA；1*mSATA(support SATA SSD expansion module)
USB:7*USB2.0 ；2*USB3.0
support 6*COM232 （1*RS485 jump cap optional）
On board 1 * RTL8111 gigabit network card （Dual network optional）
Expansion slot：1*Mini_PCIe(support WIFI+Bluetooth/4G)
