| General | |
| CPU | Intel® IOTG Elkhart Lake J6412 Processor |
| Chipset | Intel®Elkhart lake chip |
| Memory | 1*SO-DIMM DDR4 3200MHz Max16GB |
| Storage | 1*SATA 3.0 |
| Expansion Interface | 1*M.2 KeyB，Support SATA SSD/4G expansion（Optional 5G） 1*M.2 KeyA，support WIFI+Bluetooth |
| BIOS | AMI BIOS |
| System | UEFI_Windows 10/Linux |
| I/O Interface | |
| Ethernet | 1*Realtek® RTL8111 1Gbps Ethernet Controller，RJ45 |
| Serial | 6*RS232 |
| USB | 4*USB 3.2, 6*USB 2.0 |
| Audio | On board ALC269 audio decoding controller built-in power amplifier output 2.2W@4 Ω (5W optional) |
| Others | 1*LVDS Header 1*HVGA1 Header 1*USB2.0 Header blue（Expandable 2 * USB2.0, support touch wake-up） 1*F_USB2.0 Header black（Expandable 2 * USB2.0） 1*F-AUDIO Header 1*SPEAKER Header 1*SATA接口 1*SATA_PWR Header 1*JPS2 Header 1*F_PANEL Header 6*COM232 Header（COM3 and COM4 support 232/485422 optional; COM1 and COM2 support live optional DCD/5V/12V） 1*HLPT_GPIO Header（Default LPT, 16 channel GPIO optional） 1*SIM card slot 1*HDCIN1 Header 1*USB3.2 Header blue（Expandable 2 * USB3.2） 1*CPU_F Header 1*JATX_SEL1 Header 1*INVT1 Header 1*LCTL1 Header |
| Display | |
| Display Interface | VGA+HDMI+LVDS (Support 3 display synchronous/asynchronous output) |
| Mechanical & Environment | |
| Dimension | 170X170MM |
| Power Input | DC/4PIN 12V power supply |
| Temperature | Operation: -10℃~60℃, Storage: -20℃~75℃ |
| Relative Humidity | 0% ~ 95%, non-condensing |

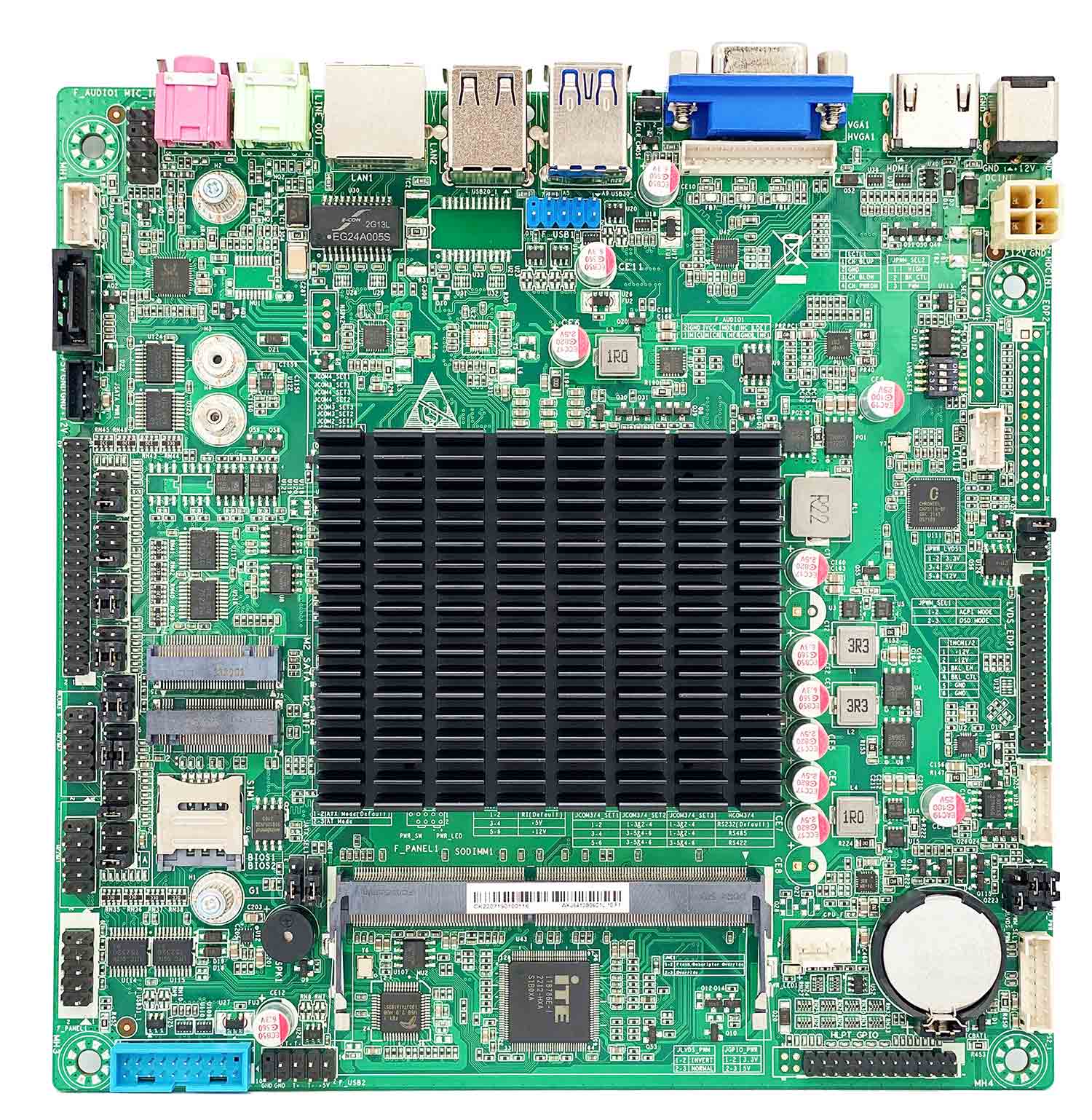

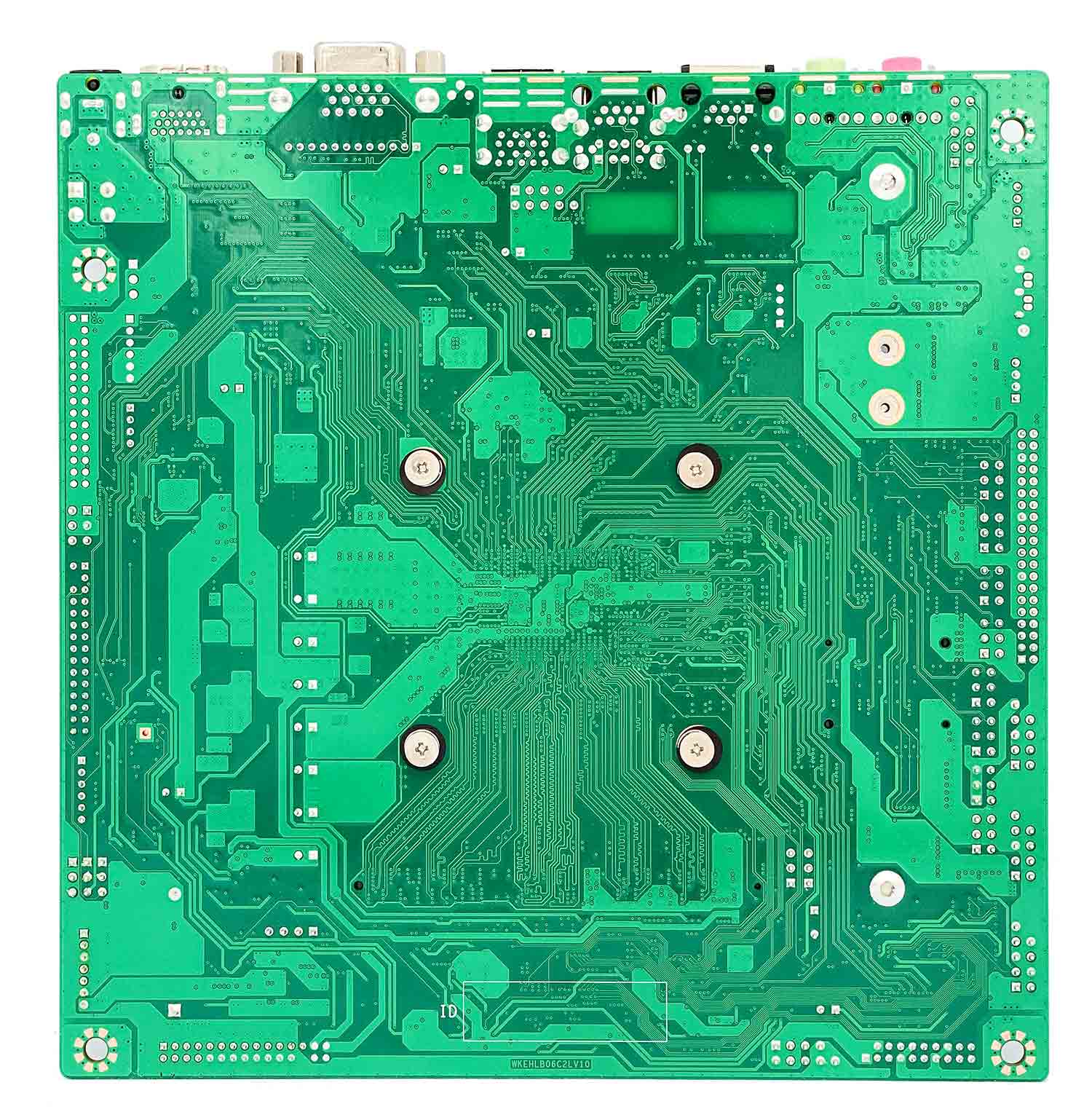

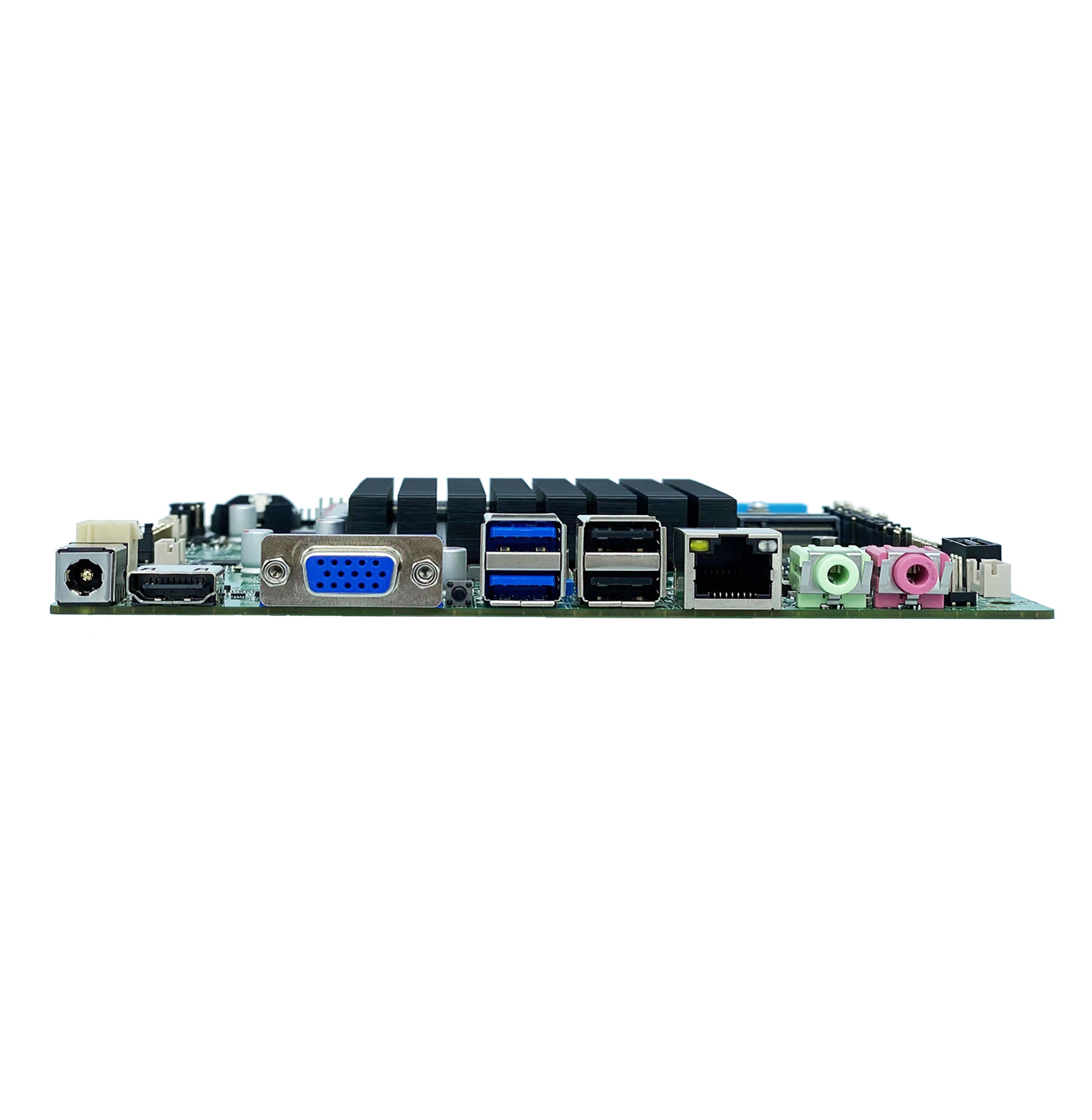

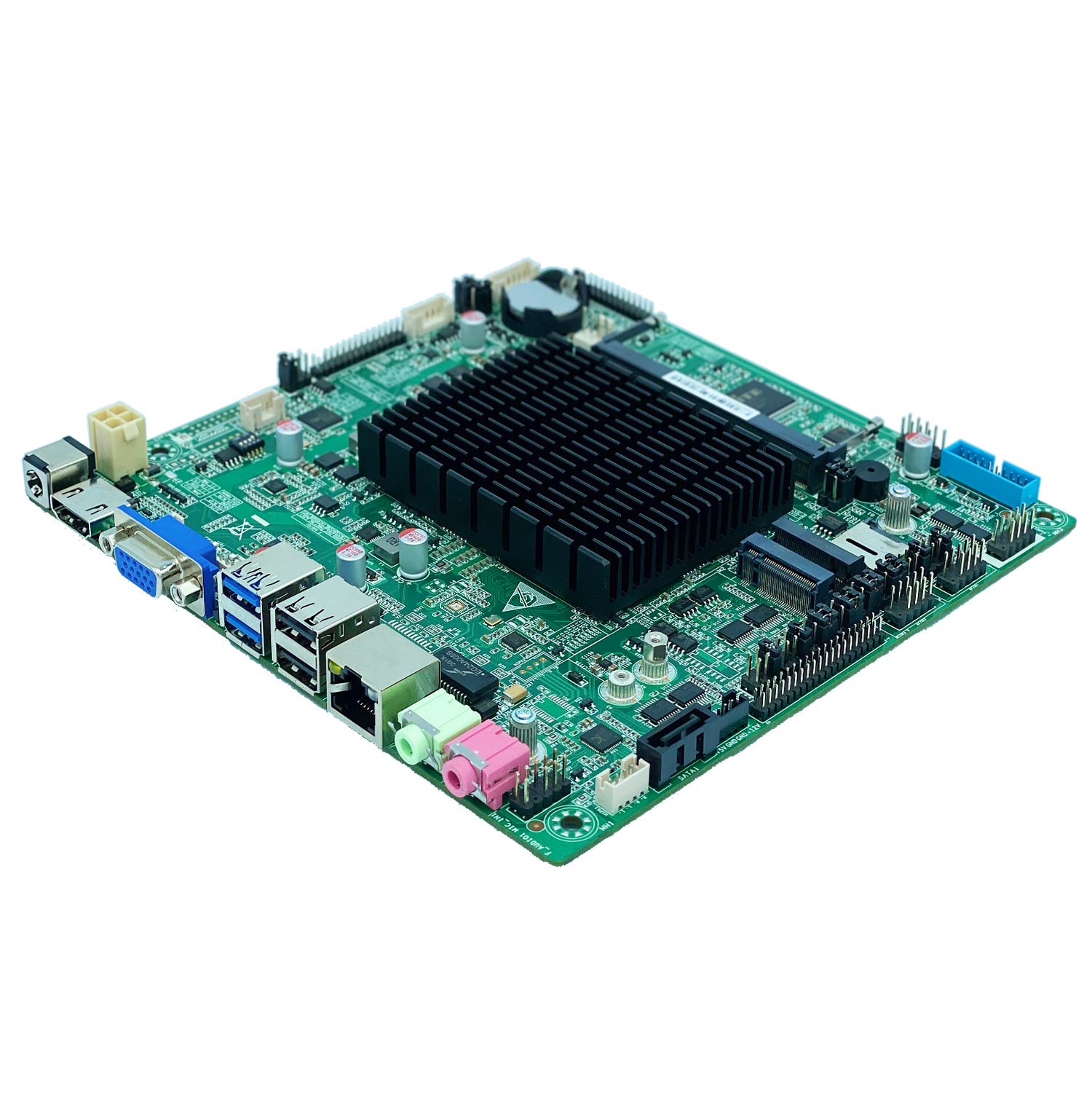

WK-J6412B0-6C1L
Intel IOTG Elkhart Lake J6412 Processor；Intel Elkhart lake chip；1*SO-DIMM；4*USB3.2；6*USB2.0；1*SATA3.0；6*COM232；2*M.2
processor：Intel® IOTG Elkhart Lake J6412 Processor
chipset：Intel®Elkhart lake chip
Display chip：Intel® UHD Graphics
memory：1*SO-DIMM DDR4 3200MHz Max16GB
Display output：VGA 、HDMI、LVDS (Support 3 display synchronous/asynchronous output)
storage：1*SATA3.0
USB:6*USB2.0；4*USB3.2
support 6*COM232 （COM3 and COM4 optional 485/422）
On board 1 * RTL8111 gigabit network card （Dual network optional）
Expansion slot：1*M.2 KeyB，Support SATA SSD/4G expansion（Optional 5G）
Expansion slot：1*M.2 KeyA，support WIFI+Bluetooth
