| General | |
| CPU | Intel® Sky lake-U/ Kaby lake-U/Kaby lake R Processor，FCBGA1356 |
| Chipset | Intel® SOC |
| Memory | 1*SO-DIMM DDR3L 1600MHz Max 32GB |
| Storage | 1*SATA3.0 1*M.2 Key M (Supports SATA3 and PCIe x4 for SSD) |
| Expansion Interface | 1*M.2 Key E （Supports WiFi+Bluetooth extension） 1*M.2 Key B (Supports 4G/5G expansion) 1*SIM card slot |
| BIOS | AMI BIOS |
| System | Windows 7/10/11 32bit/64bit/Linux |
| I/O Interface | |

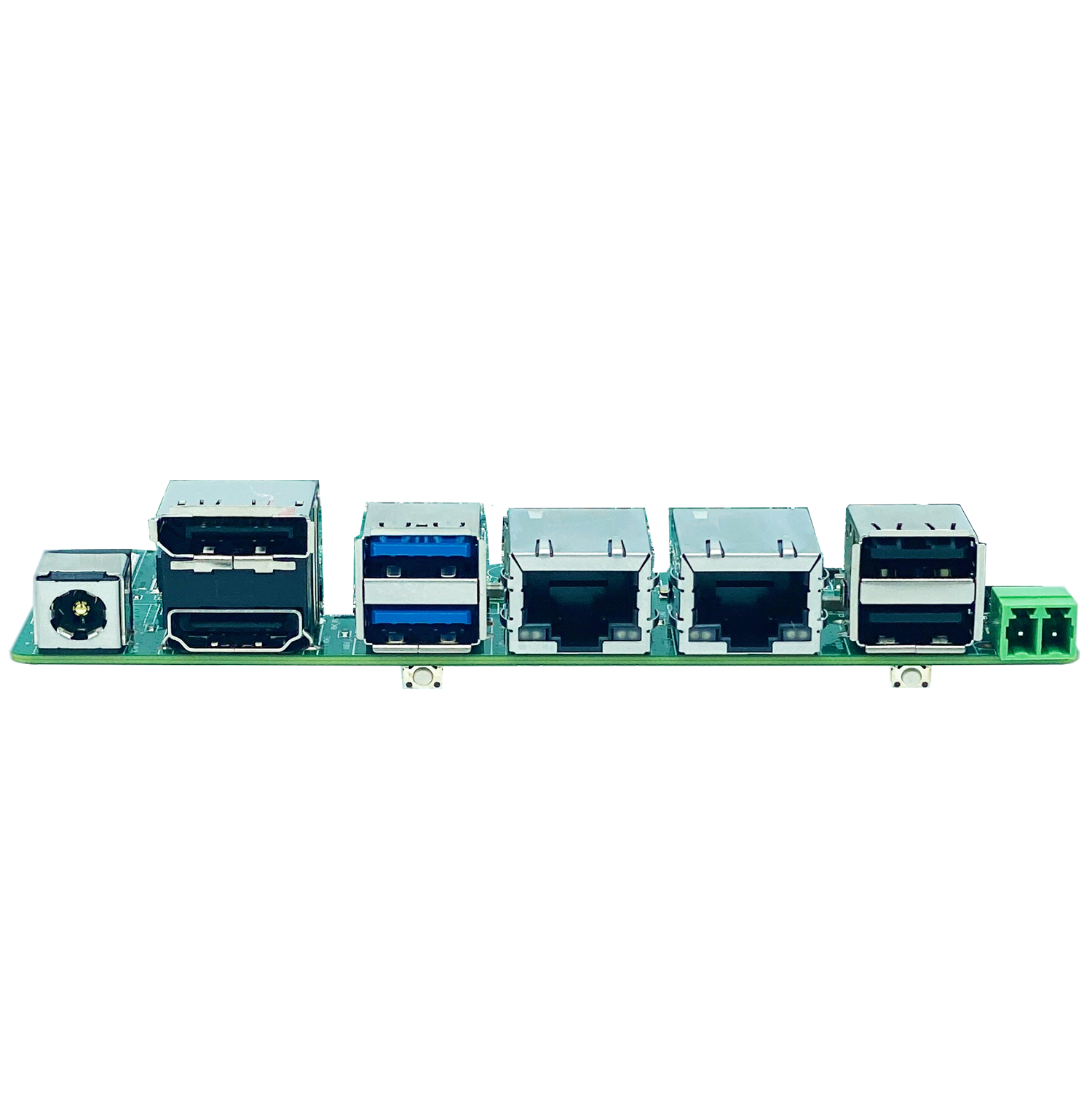

| Ethernet | 1/2*Realtek® RTL8111 1Gbps Ethernet Controller，RJ45 |

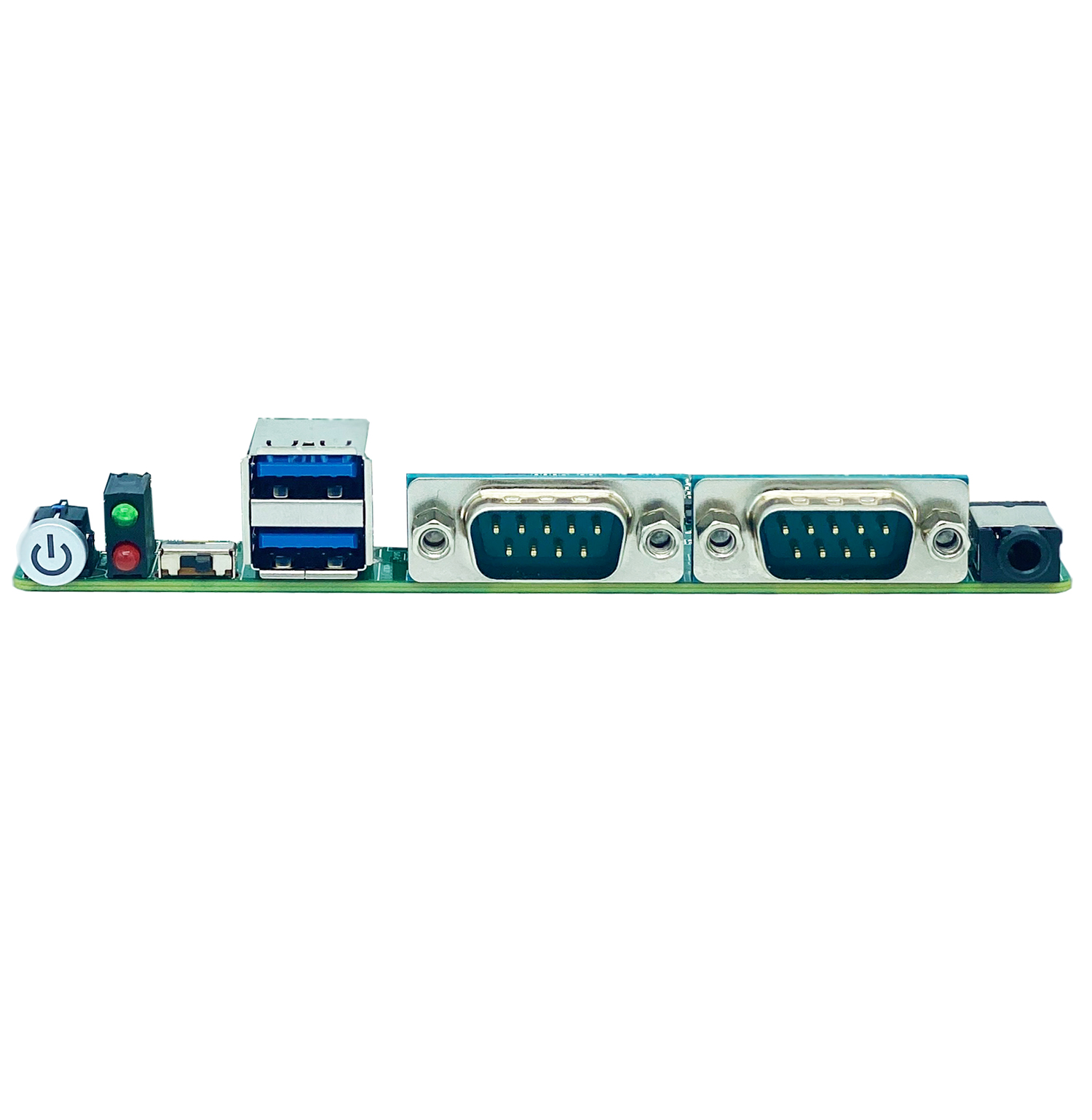

| Serial | 4*COM232 (COM1/COM2 supports RS232/485 as an option) |
| USB | 4*USB 3.0，4*USB 2.0 |
| Audio | Onboard audio decoding controller ALC897 + NS4251 default power amplifier support 3 w @ 4 Ω; 1.7W@8Ω max |
| Others | 1*HDCIN2 1*JVGA1 Header 1*F_USB1 Header（Extensible 2*USB2.0） 1*F_PANEL Header 1*SATA3.0 interface 1*JSATA_PWR Header 1*HGPIO Header 1*HCOM3-4 Header 1*F_AUDIO Header 1*SPEAKER Header 1*CFAN1 Header |
| Display | |
| Display Interface | HDMI、DP、JVGA (Support 3 display synchronous/asynchronous output) |
| Mechanical & Environment | |
| Dimension | 121mmX121mm |
| Power Input | DC 12V-19V input power supply |
| Temperature | Operation: 0℃~60℃, Storage: -20℃~75℃ |
| Relative Humidity | 0% ~ 95%, non-condensing |

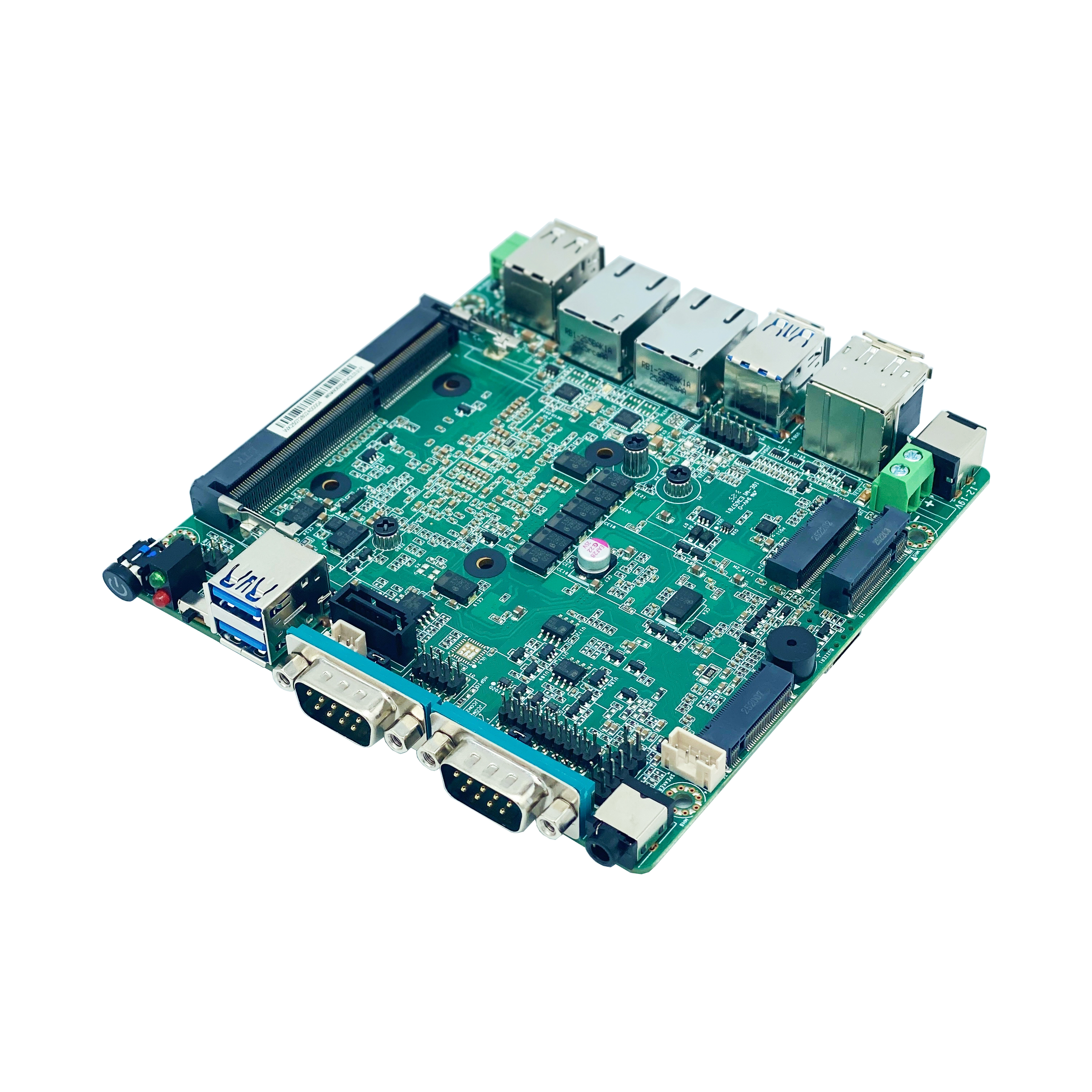

WKNANO-KBLUB0-4C2L-D3
Intel® Sky lake-U/ Kaby lake-U/Kaby lake R Processor，FCBGA1356；Intel® SOC；1*SO-DIMM；4*USB3.0；4*USB2.0；1*SATA3.0；4*COM232；3*M.2；Supports one-click system restoration, and supports system backup and restoration with shortcut keys
processor：Intel® Sky lake-U/ Kaby lake-U/Kaby lake R Processor，FCBGA1356
chipset：Intel® SOC
Display: Intel® HD Graphics
memory：1*SO-DIMM DDR3L 1600MHz Max 32GB
Display output：HDMI、DP、JVGA (Support 3 display synchronous/asynchronous output)
storage：1*SATA3.0；1*M.2 Key M (Supports SATA3 and PCIe x4 for SSD)
USB:4*USB 3.0，4*USB 2.0
supports 4*COM232 (COM1/COM2 supports RS232/485 as an option)
On board 1/2 * RTL8111 gigabit network card
Expansion slot：1*M.2 Key E （Supports WiFi+Bluetooth extension）
Expansion slot：1*M.2 Key B (Supports 4G/5G expansion) 1*SIM card slot
