| General | |
| CPU | Intel® Baytrail J1800/J1900/N2830 Processor |
| Chipset | Intel® SOC |
| Memory | 1*SO-DIMM DDR3L 204Pin 1333 MT/s Max 8GB |
| Storage | 1*SATA 1*mSATA |
| Expansion Interface | 1*Mini PCIe (Support Wifi+Bluetooth extension module ) 1*Mini PCIe (Support 4G module ) |
| BIOS | AMI BIOS |
| System | Windows 7/10/11 32bit/64bit/Linux |
| I/O Interface | |
| Ethernet | 1/2*Realtek® RTL8111 1Gbps Ethernet Controller，RJ45 |
| Serial | 4*COM232 (COM1/COM2 supports RS232/485 as an option) |
| USB | 1*USB 3.0，7*USB 2.0 |
| Audio | Onboard audio decoding controller ALC897 + NS4251 default power amplifier support 3 w @ 4 Ω; 1.7W@8Ω max |
| Others | 1*2PIN Header 1*C_FAN Header 1*F_USB1 Header （Extensible 2*USB2.0） 1*JVGA Header 1*F_AUDIO Header 1*SPEAKER Header 2*COM Header 1*HGPIO Header 1*SATA interface 1*SATA_PWR Header 1*F_PANEL Header |
| Display | |
| Display Interface | HDMI、DP、JVGA (Support 2 display synchronous/asynchronous output) |
| Mechanical & Environment | |
| Dimension | 121mmX121mm |
| Power Input | DC 12V-19V input power supply |
| Temperature | Operation: 0℃~60℃, Storage: -20℃~75℃ |
| Relative Humidity | 0% ~ 95%, non-condensing |

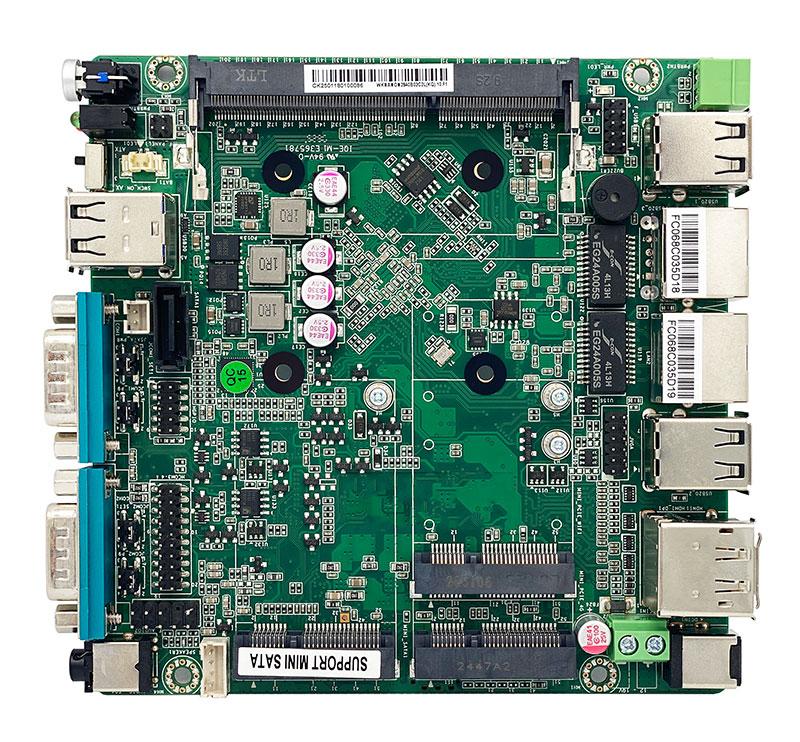

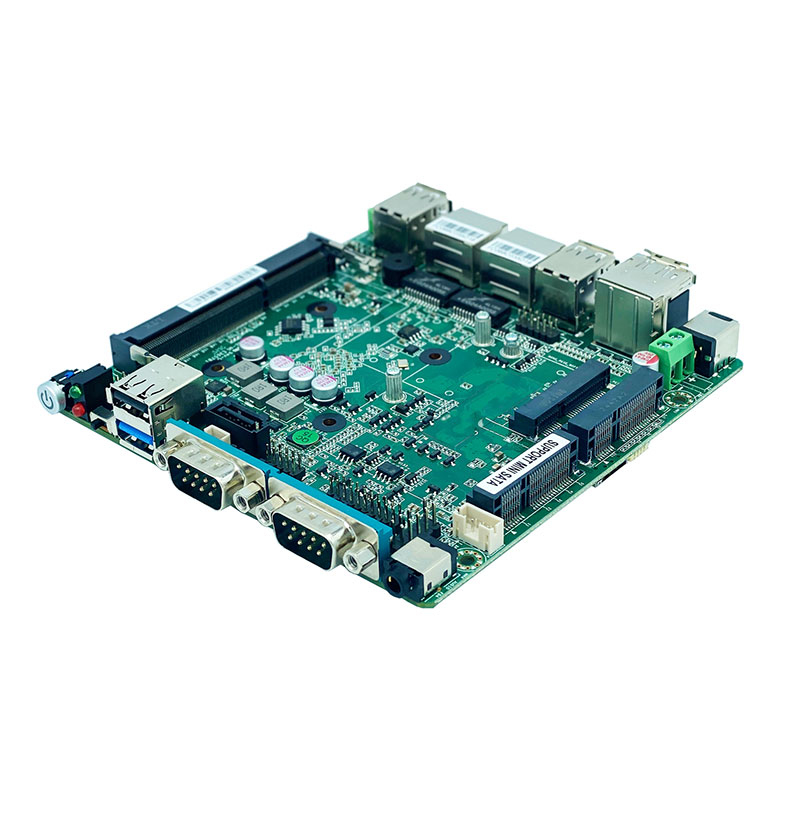

WKNANO-J1900B0-4C2L
Intel® Baytrail J1800/J1900/N2830 Processor；Intel® SOC；1*SO-DIMM；1*USB3.0；7*USB2.0；2*COM232；1*SATA；1*Msata；Supports one-click system restoration, and supports system backup and restoration with shortcut keys
processor：Intel® Baytrail J1800/J1900/N2830 Processor
chipset：Intel® SOC
Display: Intel® HD Graphics
memory：1*SO-DIMM DDR3L 204Pin 1333 MT/s Max 8GB
Display output：HDMI、DP、JVGA (Support 2 display synchronous/asynchronous output)
storage：1*SATA；1*mSATA
USB:1*USB3.0；7*USB2.0
supports 2*COM232
On board 1/2* RTL8111 gigabit network card
Expansion slot：1*Mini PCIe (Support Wifi+Bluetooth extension module )
Expansion slot：1*Mini PCIe (Support 4G module )
