| General | |
| CPU | Onboard KX6000S series Processor；TDP 28W/55W；Onboard KX6000 series Processor；TDP 70W |
| Chipset | Intel® SOC |
| Memory | 2*SO-DIMM DDR4 Max 32GB |
| Storage | 1*SATA3.0 1*M.2 Key M (Supports SATA3 and PCIe x2 for SSD) |
| Expansion Interface | 1*M.2 Key E （Supports WiFi+Bluetooth extension） 1*M.2 Key B (Supports 3G/4G expansion, and 5G is optional) 1*SIM card slot |
| BIOS | 百敖 BIOS |
| System | 统信、麒麟、Windows、Linux |
| I/O Interface | |
| Ethernet | 1/2*Realtek® RTL8111 1Gbps Ethernet Controller，RJ45 |
| Serial | 6*COM232 （COM2 supports RS232/485/422 as options,COM3 supports RS232/485 as options） |
| USB | 4*USB 3.0, 4*USB 2.0 |
| Audio | Onboard audio decoding controller ALC897 + NS4251 default power amplifier support 3 w @ 4 Ω; 1.7W@8Ω max |
| Others | 1*ATX 4PIN Header 1*VGA Header 1*HDMI Header 6*COM Header 1*F-AUDIO Header 1*SPEAKER Header 1*JPS2_1 Header 1*SYS_FAN Header 1*F_PANEL Header 1*F_USB3.0 Header（Extensible 2*USB3.0） 2*F_USB2.0 Header（Extensible 4*USB2.0） 1*SATA interface 1*SATA_PWR Header 2*INVT1 Header 1*BKCL Header 1*CFAN Header 1*AT is powered on automatically Header |
| Display | |
| Display Interface | VGA、HDMI、LVDS/EDP1 (Support 3 display synchronous/asynchronous output) |
| Mechanical & Environment | |
| Dimension | 170X170MM |
| Power Input | DC 12V-19V 10A |
| Temperature | Operation: 0℃~60℃, Storage: -20℃~75℃ |
| Relative Humidity | 0% ~ 95%, non-condensing |

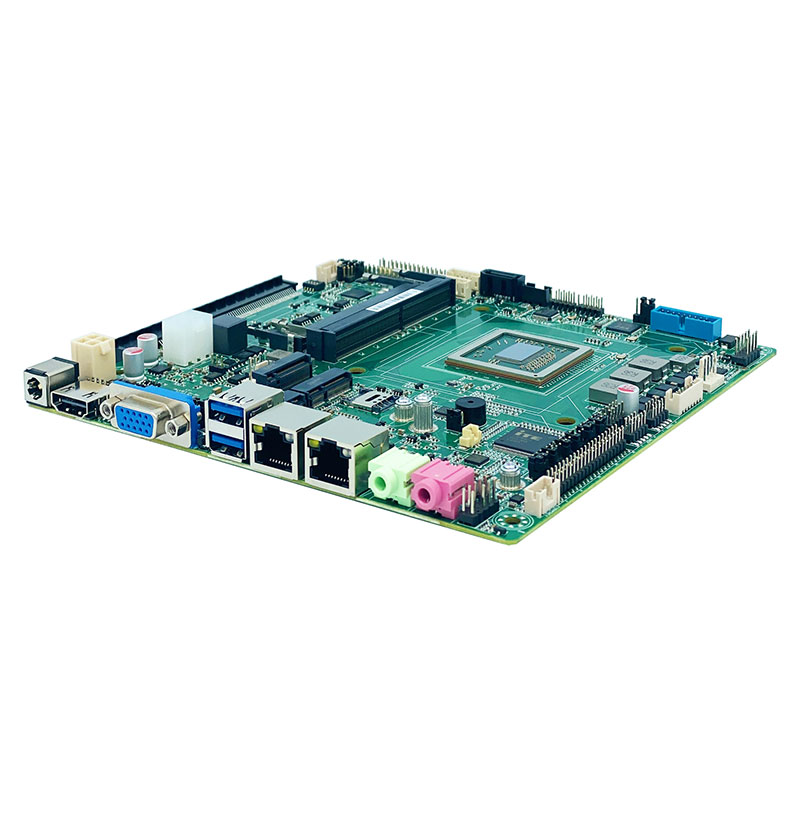

WK-6000B0-6C2L
Onboard KX6000S series Processor；TDP 28W/55W；Onboard KX6000 series Processor；TDP 70W；2*SO-DIMM；4*USB3.0；4*USB2.0；1*SATA3.0；6*COM232；3*M.2
processor：Onboard KX6000S series Processor；TDP 28W/55W；Onboard KX6000 series Processor；TDP 70W
memory：2*SO-DIMM DDR4 Max 32GB
Display output：VGA、HDMI、LVDS/EDP1 (Support 3 display synchronous/asynchronous output)
storage：1*SATA3.0；1*M.2 Key M (Supports SATA3 and PCIe x2 for SSD)
USB:4*USB3.0；4*USB2.0
supports 6*COM232 （COM2 supports RS232/485/422 as options,COM3 supports RS232/485 as options）
On board 1/2* RTL8111 gigabit network card
Expansion slot：1*M.2 Key E （Supports WiFi+Bluetooth extension）
Expansion slot：1*M.2 Key B (Supports 3G/4G expansion, and 5G is optional) 1*SIM card slot
