| General | |
| CPU | Intel® i3/i5/i7 6~9th Desktop 65W,LGA1151 Processor |
| Chipset | Intel® H110C |
| Memory | 2*SO-DIMM DDR4 2400/2666MHz Max 32GB |
| Storage | 1*SATA3.0 1*mSATA |
| Expansion Interface | 1*Mini_PCIe （For WIFI/BT, 4G modules） 1*SIM card slot |
| BIOS | AMI BIOS |
| System | Windows 7/Windows 10/Windows 11/Linux（According to the CPU decision) |

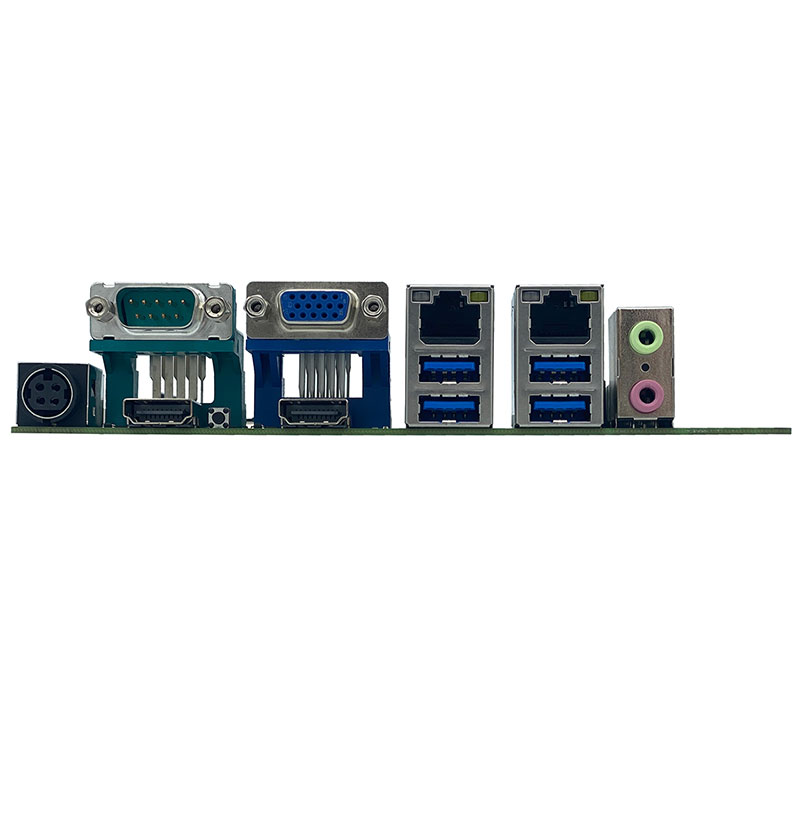

| I/O Interface | |
| Ethernet | 2*Intel I210/I211-AT/1GbE Ethernet Controller，RJ45 |
| Serial | 4*COM232 |
| USB | 4*USB 3.0, 4*USB 2.0 |
| Audio | Onboard audio decoding controller ALC897 + NS4251 default power amplifier support 3 w @ 4 Ω; 1.7W@8Ω max |
| Others | 1*2PIN Header 4*COM Header 1*F-AUDIO Header 1*SPEAKER Header 2*F_USB2.0 Header（Extensible 4*USB2.0） 2*SATA interface 2*SATA_PWR Header 1*JME Header 1*F_PANEL Header 1*SFAN Header 1*CFAN Header 1*AT is powered on automatically Header |
| Display | |
| Display Interface | VGA、2*HDMI (Support 2 display synchronous/asynchronous output) |
| Mechanical & Environment | |
| Dimension | 170X170MM |
| Power Input | DC 12V-24V input power supply |
| Temperature | Operation: 0℃~60℃, Storage: -20℃~75℃ |
| Relative Humidity | 0% ~ 95%, non-condensing |

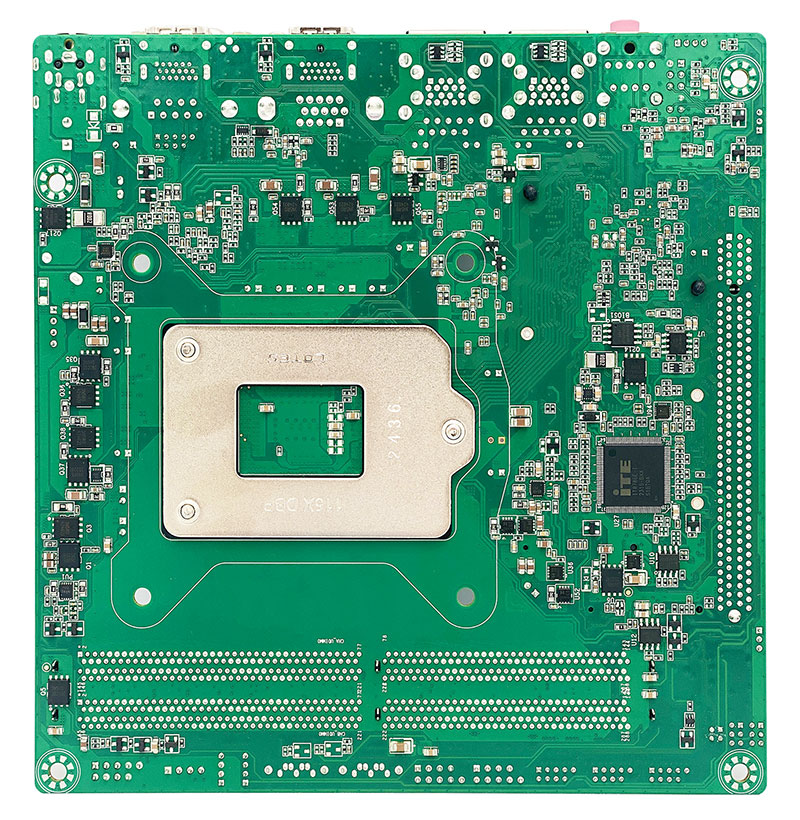

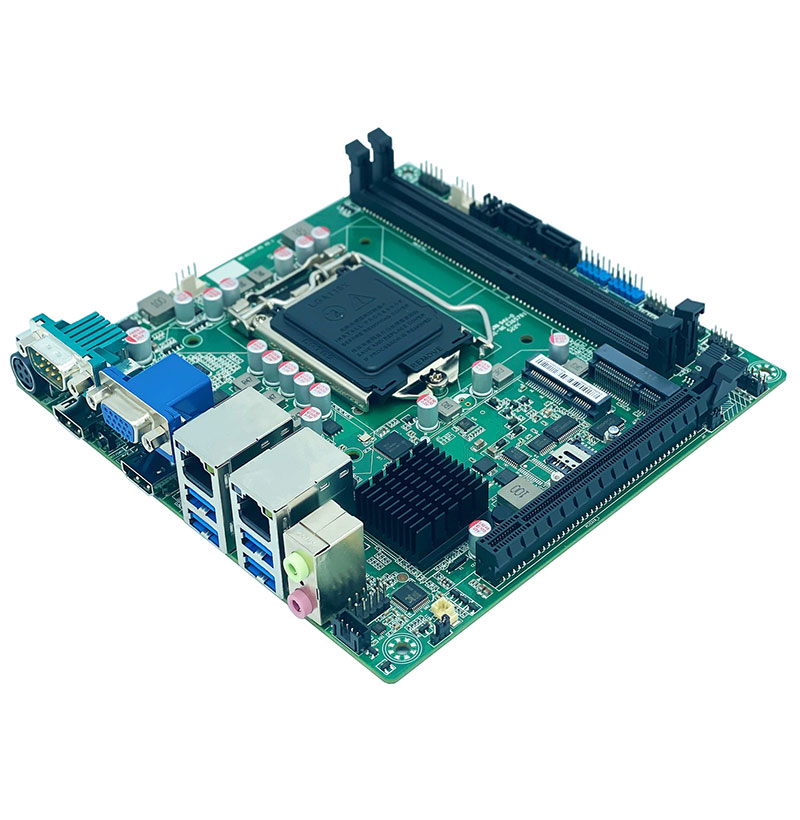

WK-H110-H1
Intel® i3/i5/i7 6~9th Desktop 65W,LGA1151 Processor；Intel® H110C；2*SO-DIMM；4*USB3.0；4*USB2.0；2*SATA3.0；4*COM232
processor：Intel® i3/i5/i7 6~9th Desktop 65W,LGA1151 Processor
chipset：Intel® H110C
Display: Intel® UHD Graphics
memory：2*SO-DIMM DDR4 Max 64GB
Display output：VGA、2*HDMI (Support 2 display synchronous/asynchronous output)
storage：2*SATA3.0；1*mSATA
USB:4*USB3.0；4*USB2.0
supports 4*COM232
On board 2 * Intel I210/I211-AT/1GbE network card
Expansion slot：1*Mini_PCIe （For WIFI/BT, 4G modules） 1*SIM card slot
