| General | |
| CPU | Intel® Baytrail J1800/J1900/N2830 Processor |
| Chipset | Intel® SOC |
| Memory | 1*SO-DIMM DDR3L 204Pin 1333 MT/s Max 8GB |
| Storage | 1*SATA2.0 1*mSATA |
| Expansion Interface | 1*Mini_PCIe （For WIFI+Bluetooth Card） 1*SIM card slot |
| BIOS | AMI BIOS |
| System | Windows 7/10 32bit/64bit/Linux |
| I/O Interface | |
| Ethernet | 1/2*Realtek® RTL8111 1Gbps Ethernet Controller，RJ45 |
| Serial | 6*COM232 |
| USB | 1*USB 3.0, 6/8*USB 2.0 |
| Audio | Onboard audio decoding controller ALC897 + NS4251 default power amplifier support 3 w @ 4 Ω; 1.7W@8Ω max |
| Others | 1*VGA Header 1*HDMI Header 1* SPEAKER Header 1* F_AUDIO Header 3*F-USB2.0 Header（Extensible 5*USB2.0） 1*SATA interface 1*SATA_PWR Header 6*COM Header 1*F_PANEL Header 1*PS2 Header 1*PRINT Header 1*GPIO Header 1*CFAN Header 1*LCTL1 Header 1*INCN1 Header 1*LVDS Header（Note Pin6 must be grounded） 1*4PIN ATX Header 1*JME Header |
| Display | |
| Display Interface | VGA、LVDS、HDMI (Support 2 display synchronous/asynchronous output) |
| Mechanical & Environment | |
| Dimension | 170X170MM |
| Power Input | DC 12V input power supply |
| Temperature | Operation: 0℃~60℃, Storage: -20℃~75℃ |
| Relative Humidity | 0% ~ 95%, non-condensing |

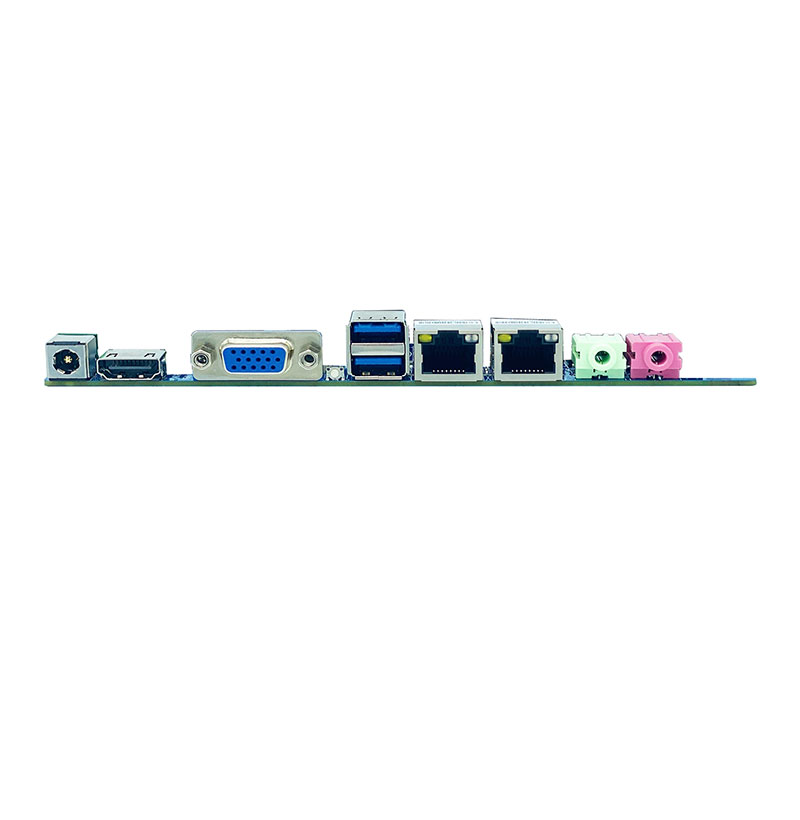

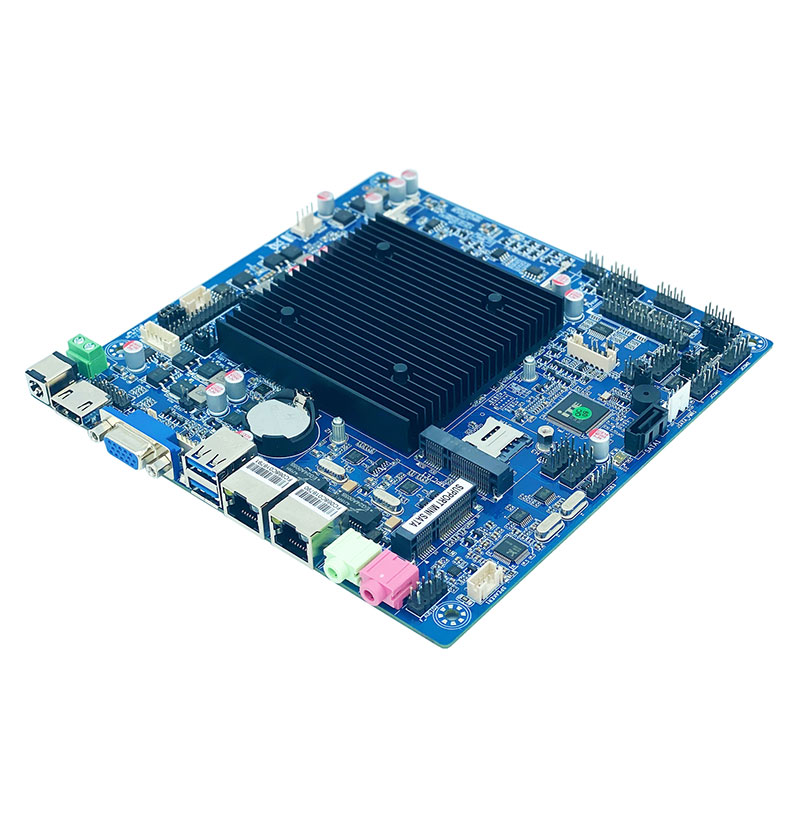

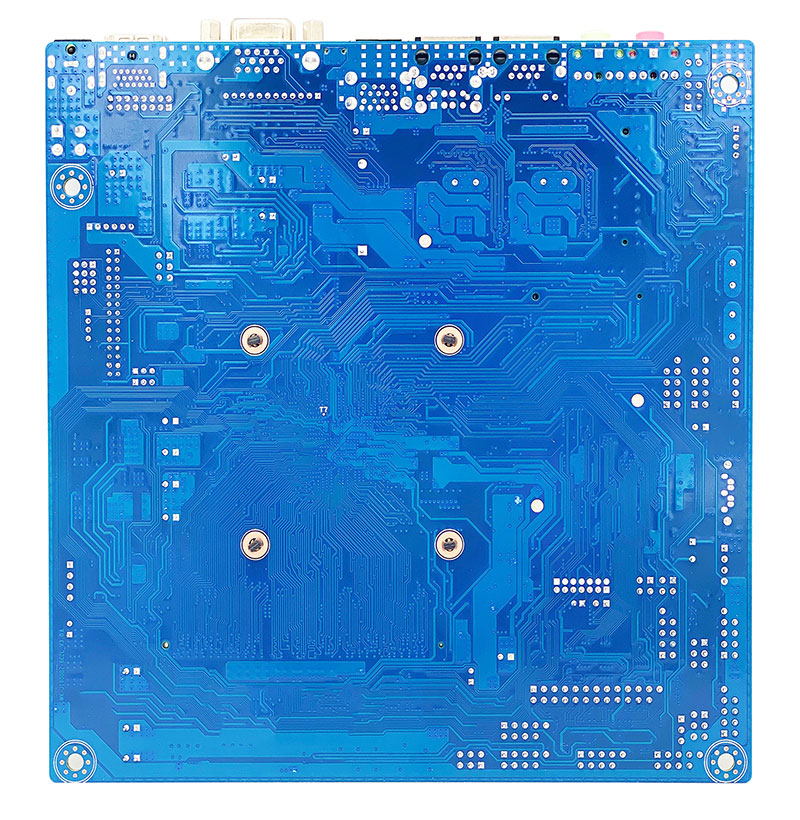

WK-J1900B2-6C2L
Intel® Baytrail J1800/J1900/N2830 Processor；Intel® SOC；1*SO-DIMM；1*USB3.0；6/8*USB2.0；1*SATA2.0；1*mSATA；6*COM232；
processor：Intel® Baytrail J1800/J1900/N2830 Processor
chipset：Intel® SOC
Display: Intel® HD Graphics
memory：1*SO-DIMM DDR3L 204Pin 1333 MT/s Max 8GB
Display output：VGA、LVDS、HDMI (Support 2 display synchronous/asynchronous output)
storage：1*SATA2.0；1*mSATA
USB:1*USB3.0；8*USB2.0
supports 6*COM232
On board 1/2* RTL8111 gigabit network card
Expansion slot：1*Mini_PCIe （For WIFI+Bluetooth Card）
