| General | |
| CPU | Intel® Gemini Lake J4125/N4000 Processor |
| Chipset | Intel® SOC |
| Memory | 1*SO-DIMM DDR4 2133/2400MHz Max8GB |
| Storage | 1*SATA3.0 1*mSATA(Supports SATA SSD expansion modules) |
| Expansion Interface | 1*Mini_PCIe （Supports Wifi+Bluetooth extension module ） 1*SIM card slot |
| BIOS | AMI BIOS |
| System | Windows 10/11 32bit/64bit/Linux |
| I/O Interface | |
| Ethernet | 1/2*Realtek® RTL8111 1Gbps Ethernet Controller，RJ45 |
| Serial | 6*COM232 （COM2 supports RS485 selection） |
| USB | 4*USB 3.0, 4/6*USB 2.0 |
| Audio | Onboard audio decoding controller ALC897 + NS4251 default power amplifier support 3 w @ 4 Ω; 1.7W@8Ω max |
| Others | 1*EDP2 Header 1*VGA_H Header 1*F-AUDIO Header 1*SPEAKER Header 1*F_USB3.0 Header（Extensible 2*USB3.0） 2*F_USB2.0 Header（Extensible 4*USB2.0） 1*SATA interface 1*SATA_PWR Header 1*JPS2 Header 1*J_PRINT Header 1*F_PANEL Header 6*COM Header 1*GPIO Header 1*LVDS Header 1*INVERT Header 1*LCTL Header 1*4PIN ATX socket 1*FAN Header 1*AUTO_ON Header 1*JTXE1 Header |
| Display | |
| Display Interface | VGA、EDP2/HDMI、LVDS1/EDP1 (Support 3 display synchronous/asynchronous output) |
| Mechanical & Environment | |
| Dimension | 170X170MM |
| Power Input | DC 12V input power supply |
| Temperature | Operation: 0℃~60℃, Storage: -20℃~75℃ |
| Relative Humidity | 0% ~ 95%, non-condensing |

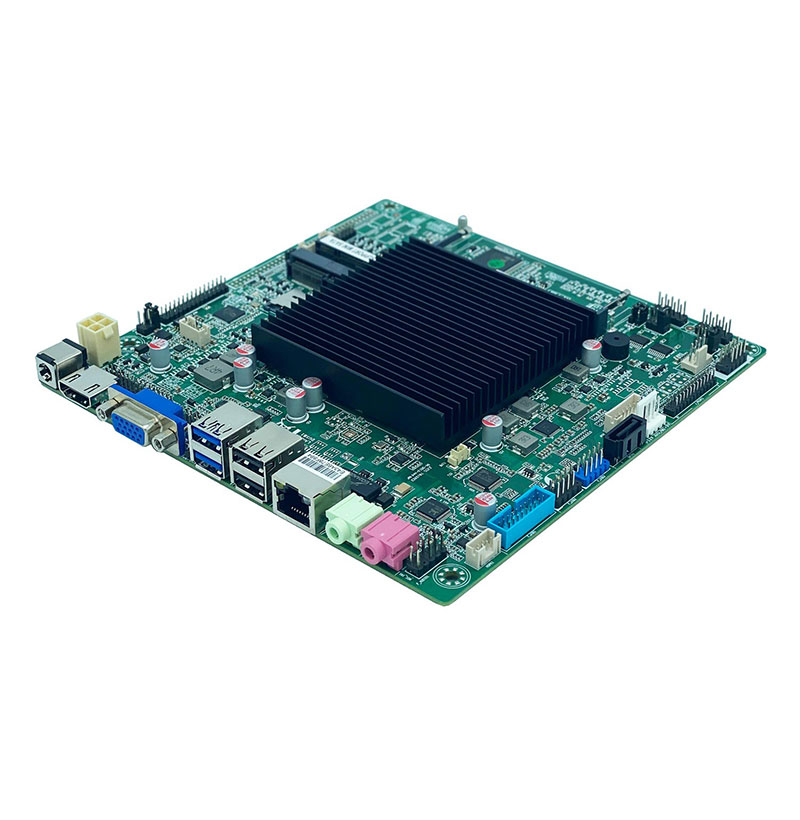

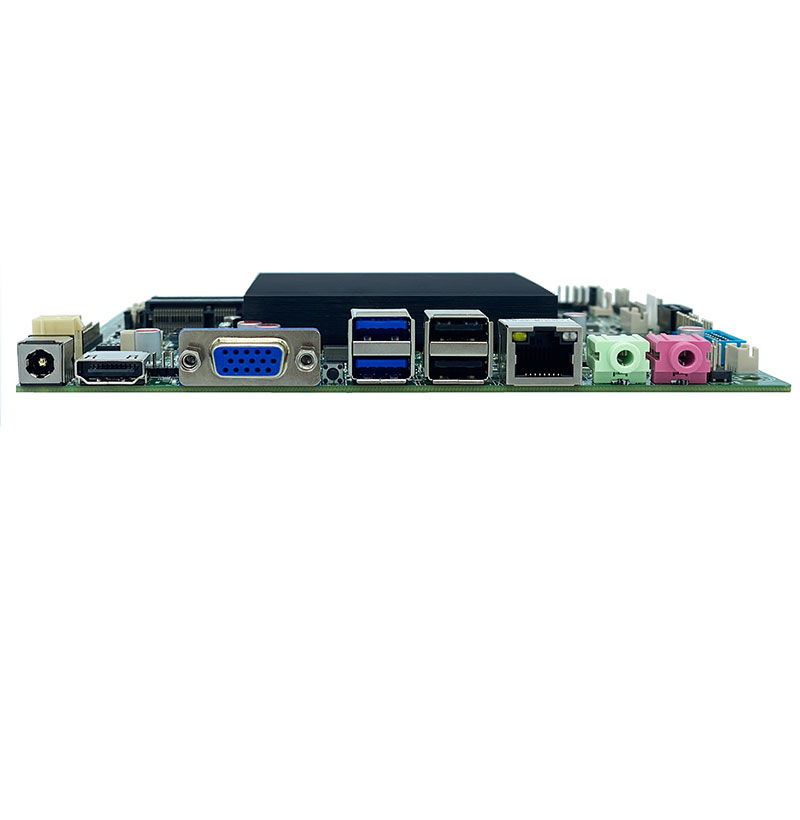

WK-GLKB2-6C2L
Intel® Gemini Lake J4125/N4000 Processor；Intel® SOC；1*SO-DIMM；4*USB3.0；4/6*USB2.0；1*SATA3.0；1*mSATA；6*COM232
processor：Intel® Gemini Lake J4125/N4000 Processor
chipset：Intel® SOC
Display: Intel® UHD Graphics
memory：1*SO-DIMM DDR4 2133/2400MHz Max8GB
Display output：VGA、EDP2/HDMI、LVDS1/EDP1 (Support 3 display synchronous/asynchronous output)
storage：1*SATA3.0；1*mSATA(Supports SATA SSD expansion modules)
USB:4*USB3.0；4/6*USB2.0
supports 6*COM232 （COM2 supports RS232/RS485 selection）
On board 1/2* RTL8111 gigabit network card
Expansion slot：1*Mini_PCIe （Supports Wifi+Bluetooth extension module ） 1*SIM card slot
