| General | |
| CPU | Intel® Elkhart Lake J6412 Processor |
| Chipset | Intel® SOC |
| Memory | 1*SO-DIMM DDR4 3200MHz Max16GB |
| Storage | 1*SATA3.0 1*M.2 Key M ( Supports SATA &NVMe PCIe X1 SSD) |
| Expansion Interface | 1*M.2 Key A （Support Wifi+Bluetooth extension module ） |
| BIOS | AMI BIOS |
| System | UEFI_Windows 10/Linux |

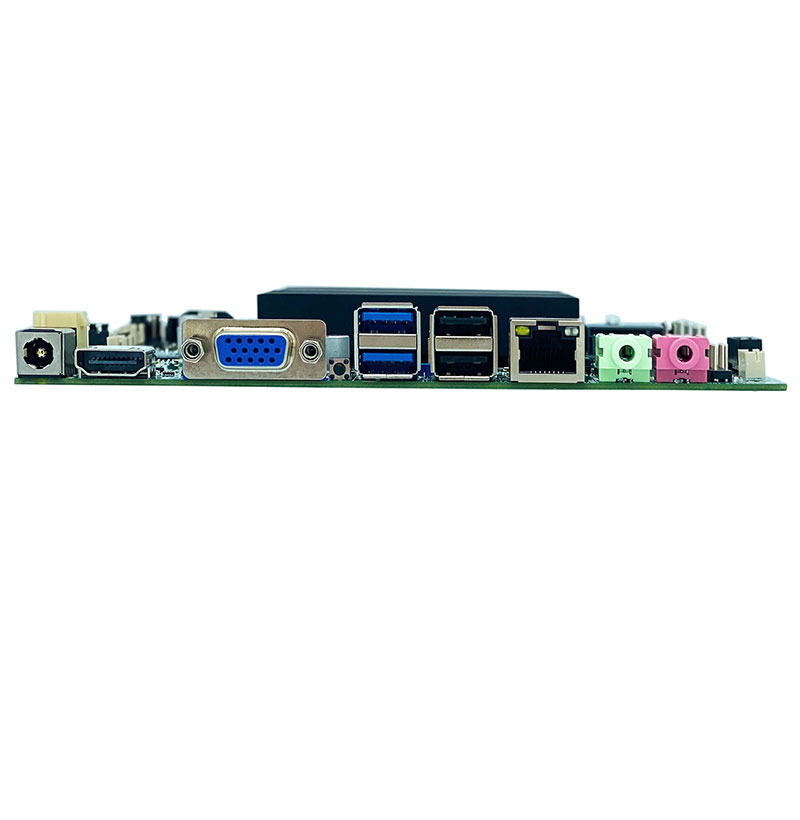

| I/O Interface | |
| Ethernet | 1/2*Realtek® RTL8111 1Gbps Ethernet Controller，RJ45 |
| Serial | 6*COM232 （COM2/COM3 supports RS232/485 as an option） |
| USB | 4*USB 3.1, 4/6*USB 2.0 |
| Audio | Onboard audio decoding controller ALC897 + NS4251 default power amplifier support 3 w @ 4 Ω; 1.7W@8Ω max |
| Others | 1*LVDS Header 1*HVGA1 Header 1*USB2.0 Header（Extensible 2*USB2.0） 1*F_USB2.0 Header（Extensible 2*USB2.0） 1*F-AUDIO Header 1*SPEAKER Header 1*SATA interface 1*SATA_PWR Header 1*JPS2 Header 1*F_PANEL Header 6*COM232 Header 1*HLPT_GPIO Header 1*HDCIN1 Header 1*USB3.1 Header（Extensible 2*USB3.1） 1*CPU_F Header 1*JATX_SEL1 Header 1*INVT1 Header 1*LCTL1 Header |
| Display | |
| Display Interface | VGA/EDP2、HDMI、LVDS/EDP1 (Support 3 display synchronous/asynchronous output) |
| Mechanical & Environment | |
| Dimension | 170X170MM |
| Power Input | DC 12V input power supply |
| Temperature | Operation: 0℃~60℃, Storage: -20℃~75℃ |
| Relative Humidity | 0% ~ 95%, non-condensing |

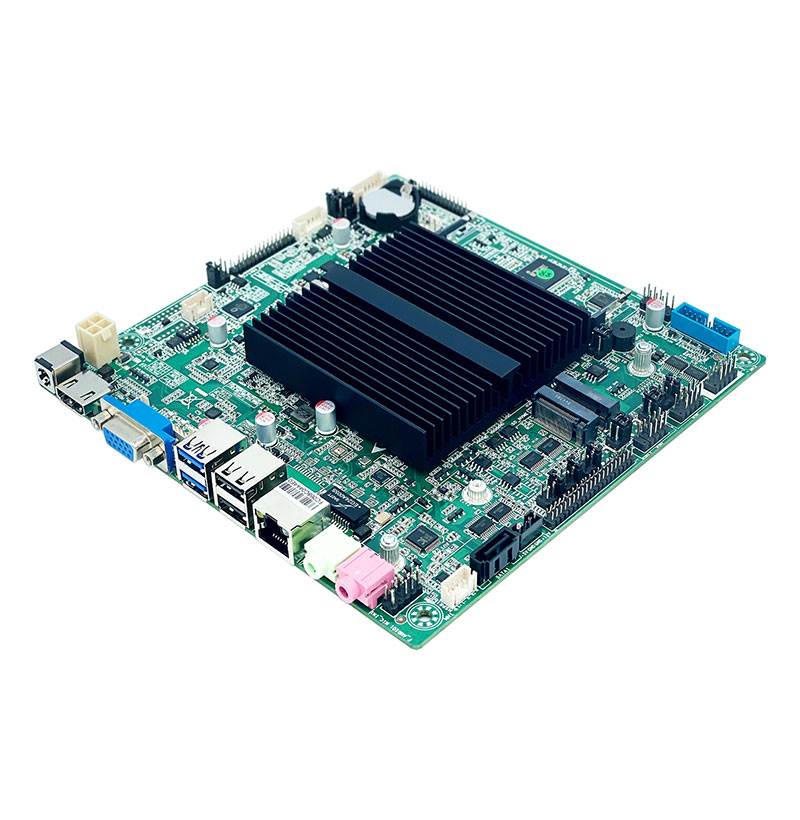

WK-EHLB2-6C2L
Intel® Elkhart Lake J6412 Processor ；Intel® SOC；1*SO-DIMM；4*USB3.1；4/6*USB2.0；1*SATA3.0；6*COM232；2*M.2
processor：Intel® Elkhart Lake J6412 Processor
chipset：Intel® SOC
Display: Intel® UHD Graphics
memory：1*SO-DIMM DDR4 3200MHz Max16GB
Display output：VGA/EDP2、HDMI、LVDS/EDP1 (Support 3 display synchronous/asynchronous output)
storage：1*SATA3.0；1*M.2 Key M ( Supports SATA &NVMe PCIe X1 SSD)
USB:4*USB3.1；4/6*USB2.0
supports 6*COM232 （COM2/COM3 supports RS232/485 as an option）
On board 1/2* RTL8111 gigabit network card
Expansion slot：1*M.2 Key A （Support Wifi+Bluetooth extension module ）
