| General | |
| CPU | Intel® 2/3th M and U series Processor |
| Chipset | Mobile Intel 7 Series Chipset Family SKUs |
| Memory | 1*SODIMM DDR3/DDR3L 1333/1600 MT/s;Max 8GB |
| Storage | 1*SATA3.0 1*mSATA(Supports SATA SSD expansion modules) |
| Expansion Interface | 1*Mini_PCIe （Support Wifi+Bluetooth/4G expansion module ） 1*SIM card slot |
| BIOS | AMI BIOS |
| System | Windows 7/10/11 32bit/64bit/Linux |
| I/O Interface | |
| Ethernet | 1*Realtek® RTL8111 1Gbps Ethernet Controller，RJ45 |
| Serial | 2/4*COM232 |
| USB | 2*USB 3.0, 8*USB 2.0 |
| Audio | Onboard audio decoding controller ALC897 + NS4251 default power amplifier support 3 w @ 4 Ω; 1.7W@8Ω max |
| Others | 1*ATX Header 4*COM232 Header （Use either the HCOM1 pin or the COM1 port） 1*JVGA Header 1*LVDS_EDP2 Header 2*INVT Header 1*BKCL Header 1*SPEAKER Header 1*F-AUDIO Header 1*eDP1 Header 1*LVDS1 Header 3*USB2.0 Header（Extensible 6*USB2.0） 1*SATA interface 1*SATA_PWR Header 1*LPT Header 1*JPS1 Header 1*F-PANEL Header 1*GPIO Header 1*JME Header 1*AUTO-ON Header 2*FAN Header 1*INCN1 Header |
| Display | |
| Display Interface | VGA、LVDS2/EDP2、LVDS1、EDP1(Support 2 display synchronous/asynchronous output) |
| Mechanical & Environment | |
| Dimension | 170X170MM |
| Power Input | DC 12V input power supply |
| Temperature | Operation: 0℃~60℃, Storage: -20℃~75℃ |
| Relative Humidity | 0% ~ 95%, non-condensing |

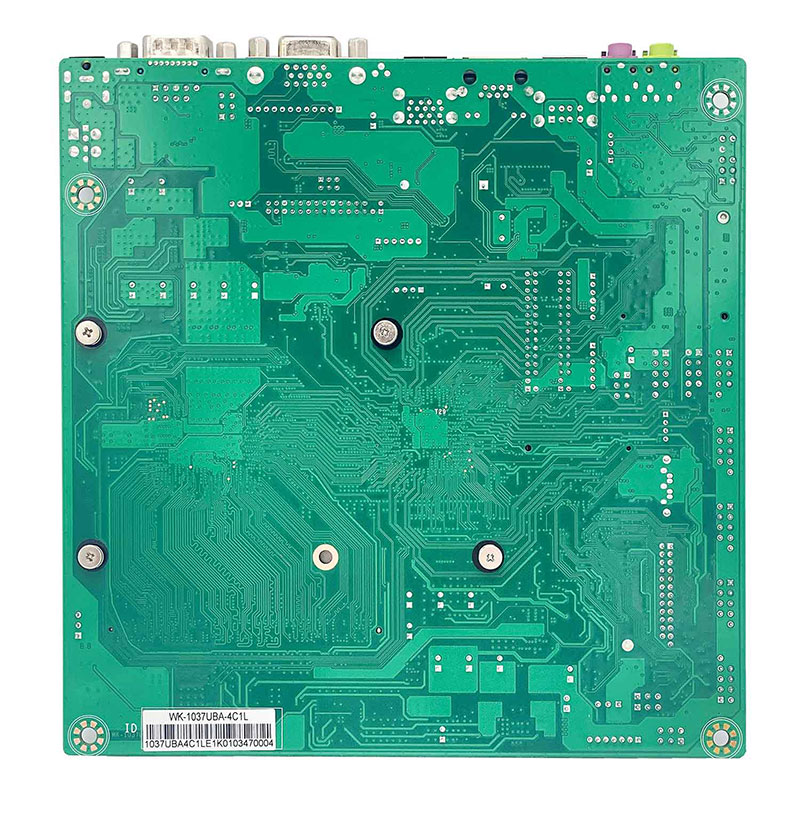

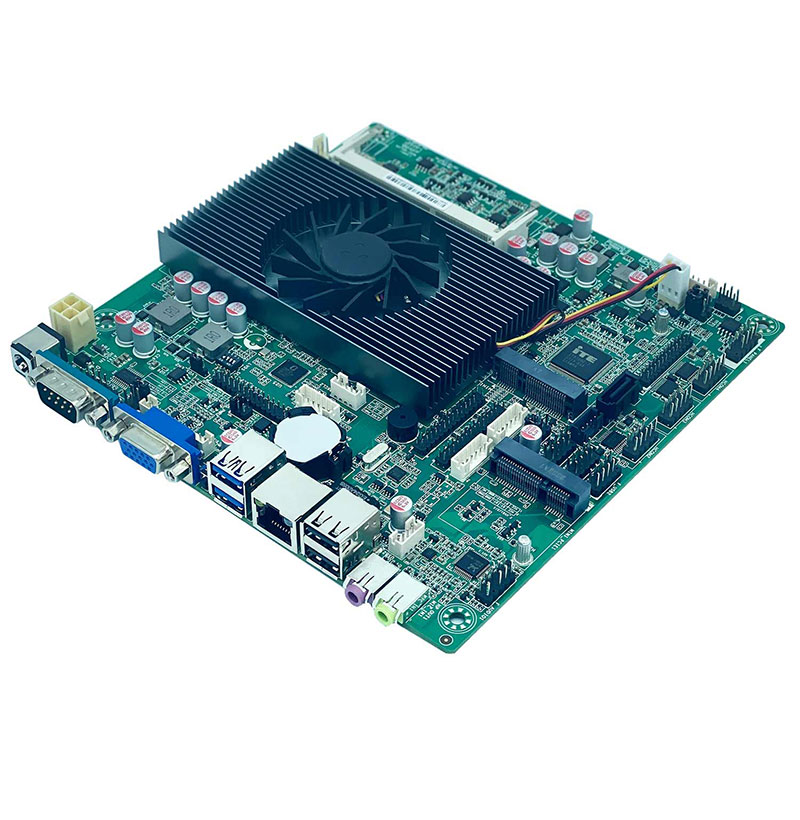

WK-1037UBA-4C1L
Intel® 2/3th M and U series Processor ；Mobile Intel 7 Series Chipset Family SKUs；1*SO-DIMM；2*USB3.0；8*USB2.0；1*SATA3.0；1*mSATA；6*COM232
processor：Intel® 2/3th M and U series Processor
chipset：Mobile Intel 7 Series Chipset Family SKUs
Display: Intel® HD Graphics
memory：1*SODIMM DDR3/DDR3L 1333/1600 MT/s;Max 8GB
Display output：VGA、LVDS2/EDP2、LVDS1、EDP1(Support 2 display synchronous/asynchronous output)
storage：1*SATA3.0；1*mSATA(Supports SATA SSD expansion modules)
USB:2*USB3.0；8*USB2.0
supports 2/4*COM232
On board 1* RTL8111 gigabit network card
Expansion slot：1*Mini_PCIe （Support Wifi+Bluetooth extension module ）
