| General | |
| CPU | Intel® 7th/6th（Kabylake/Skylake-H)Mobile Processor |
| Chipset | Intel 100 series |
| Memory | 2*SO-DIMM，DDR4 2400 MHz Max 32GB |
| Storage | 2*SATA3.0 1*M.2 Key M (Supports Nvme&SATA SSD) |
| Expansion Interface | 1*M.2 Key E （Supports WiFi+Bluetooth extension） 1*M.2 Key B (for 3G, 4G expansion or SATA SSD, 5G optional) 1*SIM card slot |
| BIOS | AMI BIOS |
| System | Windows 7/10/11 32bit/64bit/Linux |
| I/O Interface | |
| Ethernet | 1/2*Realtek® RTL8111 1Gbps Ethernet Controller，RJ45 |
| Serial | 6*COM232 （COM2 supports RS232/485 as an option） |
| USB | 4/6*USB 3.0, 4*USB 2.0 |
| Audio | Onboard audio decoding controller ALC897 + NS4251 default power amplifier support 3 w @ 4 Ω; 1.7W@8Ω max |
| Others | 1*ATX Header 1*VGA Header 2*F_USB2.0 Header（Extensible 4*USB2.0） 1*F_USB3.0 Header（Extensible 2*USB3.0） 1*GPIO Header 6*COM Header 2*SATA3.0 interface 2*SATA_PWR Header 1*F_PANEL Header 1*F_AUDIO Header 1*SPEAKER Header 1*DEBUG Header 1*PS/2 Header 1*LPT Header 1*JAT1 Header 1*LVDS Header 1*EDP Header 1*LCTL1 Header 1*INVCN1 Header 1*SYSFAN Header 1*CFAN Header |
| Display | |
| Display Interface | HDMI、VGA、EDP2、LVDS/EDP1 (Support 3 display synchronous/asynchronous output) |
| Mechanical & Environment | |
| Dimension | 170X170MM |
| Power Input | DC 12V-19V input power supply or ATX4pin power supply |
| Temperature | Operation: 0℃~60℃, Storage: -20℃~75℃ |
| Relative Humidity | 0% ~ 95%, non-condensing |

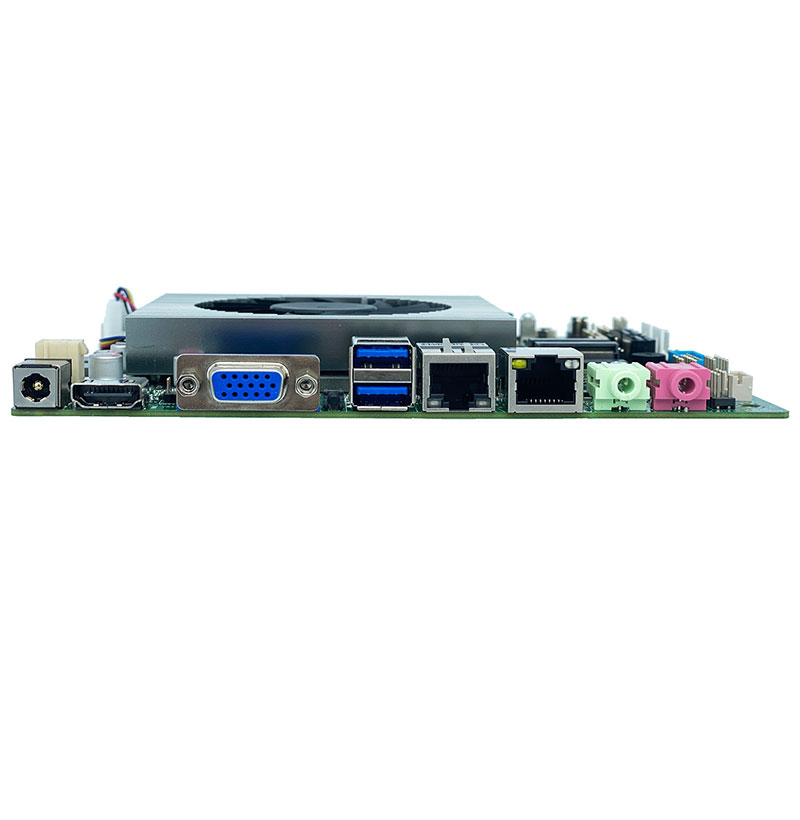

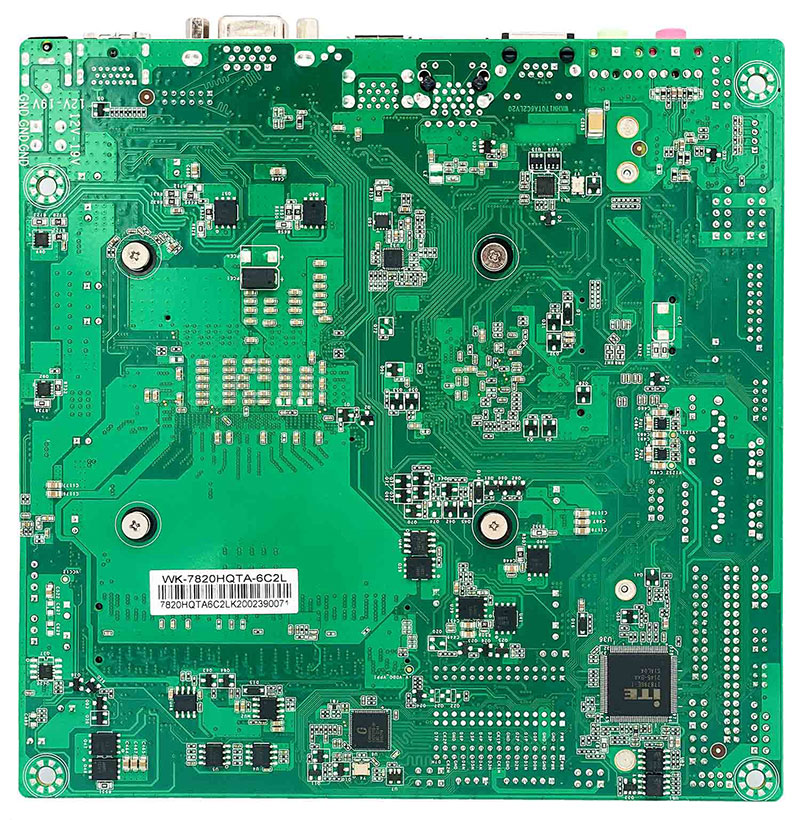

WK-HM170TA-6C2L
Intel® 7th/6th（Kabylake/Skylake-H)Mobile Processor；Intel 100 series；2*SO-DIMM；4/6*USB3.0；4*USB2.0；2*SATA3.0；6*COM232；3*M.2
processor：Intel® 7th/6th（Kabylake/Skylake-H)Mobile Processor
chipset：Intel 100 series
Display: Intel® HD Graphics
memory：2*SO-DIMM，DDR4 2400 MHz Max 32GB
Display output：HDMI、VGA、EDP2、LVDS/EDP1 (Support 3 display synchronous/asynchronous output)
storage：2*SATA3.0；1*M.2 Key M (Supports Nvme&SATA SSD)
USB:4/6*USB3.0；4*USB2.0
supports 6*COM232 （COM2 supports RS232/485 as an option）
On board 1/2* RTL8111 gigabit network card
Expansion slot：1*M.2 Key A （Supports WiFi+Bluetooth Expandable）
Expansion slot：1*M.2 Key B (for 3G, 4G expansion or SATA SSD, 5G optional)
